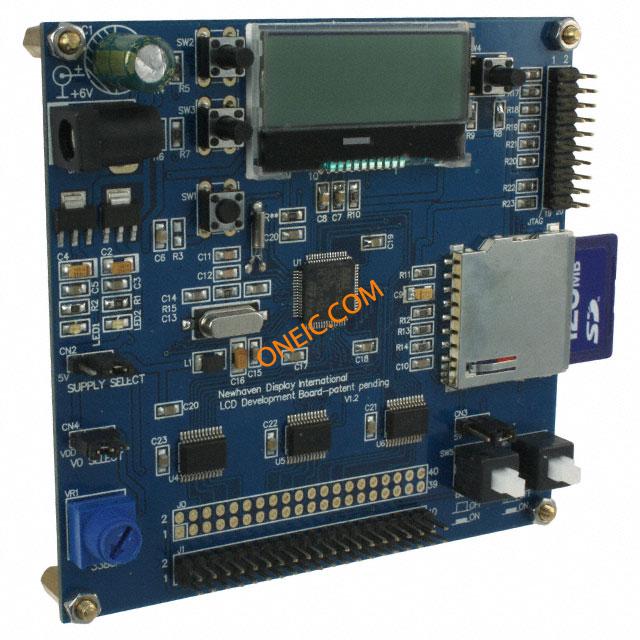

NHDEV DEVELOPMENT BOARD

制造商	Newhaven Display International, Inc.
描述	Display Development Tools LCD Development Brd 100 mm x 95 mm BOARD DEV LCD COG TFT 100X95MM
分类	集成电路逻辑IC标准逻辑IC

对参数有疑问？问 AI 助手

商业参数

产品	Development Boards	产品类别	Display Development Tools
标准包装数量	1

合规参数

RoHS

RoHS Compliant

电气参数

接口

JTAG

供电电压

7 V

机械参数

包装方式

Bulk

尺寸/外形

100 mm x 95 mm

产品信息

内容	Board with LCD Module, Power Supply, SD Card with Files	嵌入式	Yes, MCU, 32-Bit
功能	NHDev is a development board for evaluating or prototyping Newhaven Display's TFT, COG, Graphic, and Character LCD displays	主要用途	Displays, LCD Display
工具类型/特性	Multiples	主要特性	For TFT, COG Graphic, and Character LCD Displays
使用的IC/零件	STM32	次要特性	3 Pushbutton User Interface, SD Card Storage

文档与媒体

PDF 文档

LCD Solvent Precautions

PDF 文档

NHDev

PDF 文档

NHDev_v2.pdf
