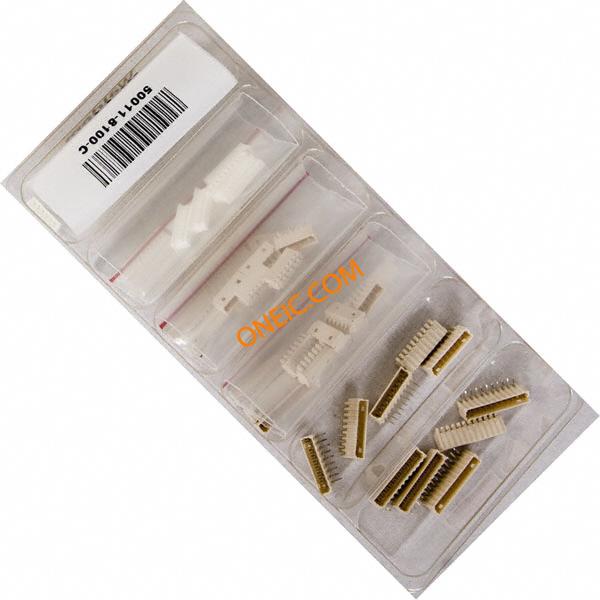

76650-0106
| 制造商 | |
| 描述 | COMPONENT KITS, WIRE TO BOARD KIT 11,6,9POS 2A THROUGH HOLE MOUNTING RECEPTACLE, RIGHT ANGLE HEADER, VERTICAL HEADER 2MM PITCH 125V 24-30 WIRE SIZE KIT CONN MICROBLADE Headers & Wire Housings MICROBLADE KIT DELUXE COMPONENT KITS, WIRE TO BOARD KIT 11,6,9POS 2A THROUGH HOLE MOUNTING RECEPTACLE, RIGHT ANGLE HEADER, VERTICAL HEADER 2MM PITCH 125V ... Kit Description:Friction Lock Vertical and Right Angle Header and ReceptacleKit Category:Wire to BoardSolution:Off the BoardPackaging:Clamshell: 9" by 4"Num. Pieces:145 MICROBLADE CONNECTOR KIT FRICTION LOCK VERT & RT ANGLE HEADER & RECEPT |
| 分类 |
商业参数
| 商标名 | MicroBlade | 标准包装规格 | 1 |
| 零件号别名 | 0766500106 | 产品类别 | Headers & Wire Housings |
| 标准包装数量 | Bulk | ||
合规参数
| RoHS | Lead free / RoHS Compliant | ||
电气参数
| 电压 | 125 V | 额定电压 | 125 V |
| 最大额定电流 | 2 A | ||
机械参数
| 间距 | 2 mm | 包装方式 | Plastic Box |
| 导线线规 | 30-24 | 安装类型 | Right, Straight |
| 连接器类型 | Header and Receptacle | 端接样式 | SMD, Through Hole |
| 第一触头极性 | Pin (Male), Socket (Female) | ||
产品信息
| 类型 | MicroBlade Connector Kit | 系列 | 76650 |
| 值 | 145 pcs - Assorted 6, 9, 11 Circuit Header, Housing, 30 ~ 24 AWG Crimp Terminals | 套件类型 | Rectangular - Contact, Header, Housing |
| 制造商全称 | 76650 | 产品子类型 | Connector Kits |
| 配置 | Wire-to-Board | 电路数 | 6, 9, 11 |
文档与媒体
相关型号
50011-8100
molex
Contact SKT Crimp ST Cable Mount Bag Headers & Wire Housings SOCKET 24-30AWG BULK CRIMP SOCKET, CONTACT, 24AWG Conn; Crimp Term; Quick Discconnect; Female; 30-24 AWG; 2mm Molex MICROBLADE 系列 母 压接接线端子, 压接, 镀锡触点

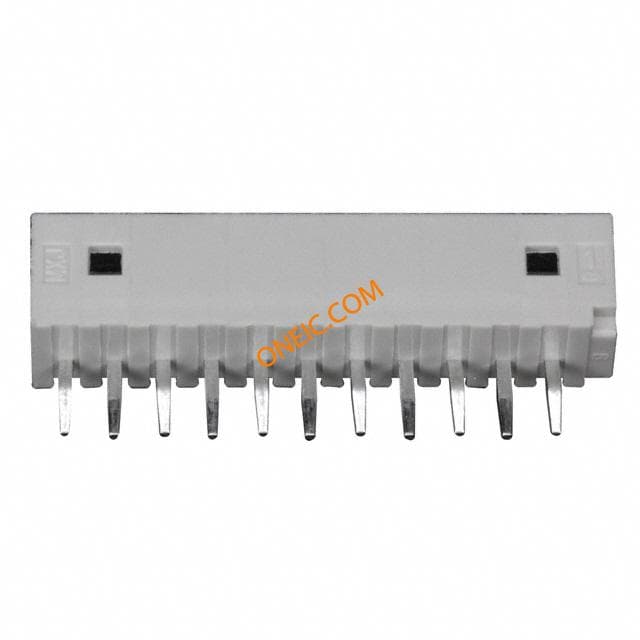

53014-1110
molex
Conn Shrouded Header HDR 11 POS 2mm Solder ST Thru-Hole Bag CONN HEADER 2MM 11POS TIN Headers & Wire Housings HDR VERT SHRD 11P 2.00mm Pitch MicroBlade™ Wire-to-Board Header, Vertical, 11 Circuits

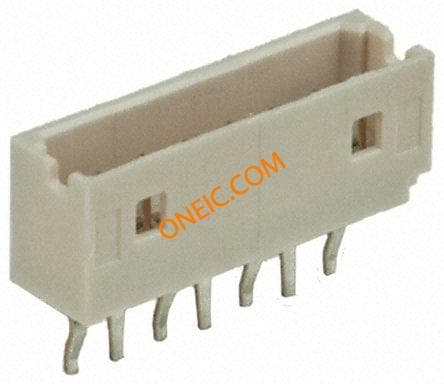

53014-0610
