点击放大查看

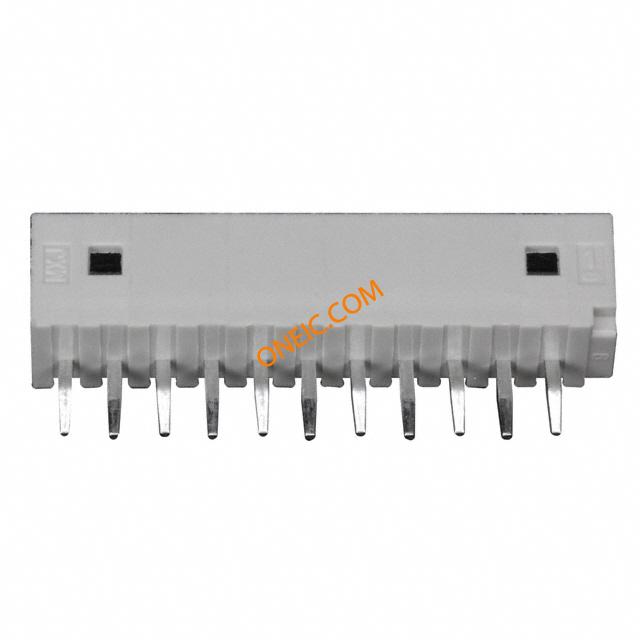

53014-1110
| 制造商 | |
| 描述 | Conn Shrouded Header HDR 11 POS 2mm Solder ST Thru-Hole Bag CONN HEADER 2MM 11POS TIN Headers & Wire Housings HDR VERT SHRD 11P 2.00mm Pitch MicroBlade™ Wire-to-Board Header, Vertical, 11 Circuits |
| 分类 |
商业参数
| 商标名 | MicroBlade | 零件号别名 | 0530141110 |
| 产品类别 | Headers & Wire Housings | 标准包装数量 | Bulk |
| 工厂包装数量 | 500 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | ||
电气参数
| 额定电压 | 125 V | 最大额定电流 | 2 A |
机械参数
| 颜色 | Natural | 间距 | 2 mm |
| 包装方式 | Bulk | 端接方式 | Solder |
| 触头类型 | Male Pin | 安装类型 | Through Hole |
| 连接器类型 | Header, Shrouded | 接触镀层 | Tin |
| 排数 | 1 | 触头材料 | Phosphor Bronze |
| 壳体材料 | Nylon | 端接样式 | Through Hole |
| 触点数 | 11 | 位数 | 11 |
| 接触长度 - 配合 | 0.122" (3.10mm) | ||
产品信息
| 类型 | Shrouded Header | 连接器性别 | HDR |
| 系列 | 53014 | 产品子类型 | Headers |
| 加载位置数 | All | ||
