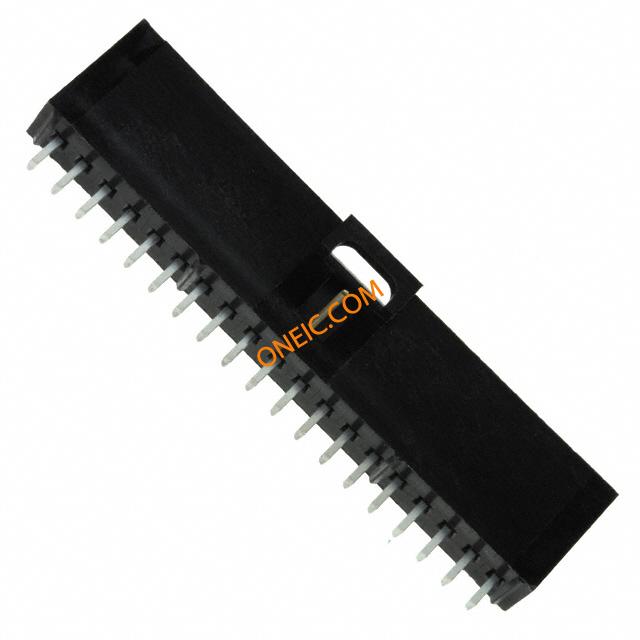

点击放大查看
70543-0018
| 制造商 | Molex, LLC |
| 描述 | Conn Shrouded Header HDR 19 POS 2.54mm Solder ST Thru-Hole Tube CONN HEADER 19POS .100 VERT GOLD Headers & Wire Housings 2.54MM HDR 19 CKT Vertical |
| 分类 |
对参数有疑问？问 AI 助手
商业参数
| 商标名 | SL | 零件号别名 | 0705430018 |
| 产品类别 | Headers & Wire Housings | 标准包装数量 | Bulk |
| 工厂包装数量 | 480 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | ||
机械参数
| 颜色 | Black | 间距 | 0.100" (2.54mm) |
| 包装方式 | Tube | 端接方式 | Solder |
| 触头类型 | Male Pin | 安装类型 | Through Hole |
| 连接器类型 | Header, Shrouded | 接触镀层 | Gold |
| 排数 | 1 | 触头材料 | Phosphor Bronze |
| 触点数 | 19 | 位数 | 19 |
| 接触长度 - 配合 | 0.240" (6.10mm) | 接触镀层厚度 | 15µin (0.38µm) |
产品信息
| 类型 | Shrouded | 系列 | 70543 |
| 产品子类型 | Headers | 加载位置数 | All |
