15-38-8190
| 制造商 | Molex, LLC |
| 描述 | CONN FFC FEMALE 19POS .100 TIN FFC & FPC Connectors SL FFC/FPC Opt G Fem 19CKT TIN |
| 分类 |
商业参数
| 商标名 | C-Grid | 零件号别名 | 0015388190 70430-0158 |
| 产品类别 | FFC & FPC Connectors | 标准包装数量 | 1 |
| 工厂包装数量 | 330 | ||
合规参数
| RoHS | RoHS Compliant | 材料阻燃等级 | UL94 V-0 |
电气参数
| 额定电压 | 250V | 最大额定电流 | 1 A, 2 A |
机械参数
| 颜色 | Black | 间距 | 0.100" (2.54mm) |
| 包装方式 | Tube | 端接方式 | IDC |
| 安装类型 | Vertical | 连接器类型 | Receptacle |
| 接触镀层 | Tin | 安装样式 | Cable |
| 触头材料 | Phosphor Bronze | 壳体材料 | Polyester, Glass Filled |
| 端接样式 | IDC | FFC/FCB厚度 | 0.30mm |
| 触点数 | 19 | 位数 | 19 |
| 接触镀层厚度 | 150µin (3.81µm) | ||
产品信息
| 连接器性别 | Female | 系列 | 70430 |
| 产品特性 | Latch Lock | 产品子类型 | Free Hanging |
环境参数
| 工作温度 | -40°C ~ 105°C | ||
相关型号
0622020800
molex
FFC/SL TOOLING 2-20 CKT W/ TM42 PRESS TM-42 PRESS AND TERMINATION KIT FOR 110V APPLICATIONS FFC/SL TOOL 2-20 CKT W/ TM42
0623003000
molex
RIBBON CABLE HAWK W/O BREAK-OFF STATION HAWK Ribbon Cable Terminator For SL Without Break-Off RIBBON CABLE HAWK
0623005300
molex
RIBBON CABLE HAWK W/ BREAK-OFF STATION HAWK Ribbon Cable Terminator With For SL Break-Off RIBBON CABLE HAWK W/BREAKOFF
0623005200
molex
FFC HAWK W/ BREAK-OFF STATION HAWK FLAT FLEX CABLE TERMINATOR FOR SL WITH BREAK-OFF

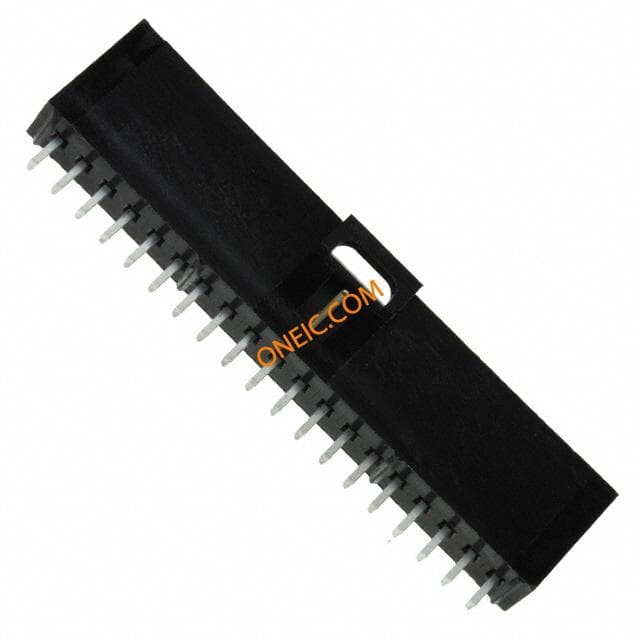

70543-0018
molex
Conn Shrouded Header HDR 19 POS 2.54mm Solder ST Thru-Hole Tube CONN HEADER 19POS .100 VERT GOLD Headers & Wire Housings 2.54MM HDR 19 CKT Vertical
70553-0053
molex
Conn Shrouded Header HDR 19 POS 2.54mm Solder RA Thru-Hole Tube CONN HEADER 19POS .100 R/A TIN
70543-0053
molex
Conn Shrouded Header HDR 19 POS 2.54mm Solder ST Thru-Hole Tube CONN HEADER 19POS .100 VERT TIN 2.54mm Pitch SL™ Header, Single Row, Vertical, 3.05mm Pocket, Shrouded, 19 Circuits, Tin (Sn) Plating

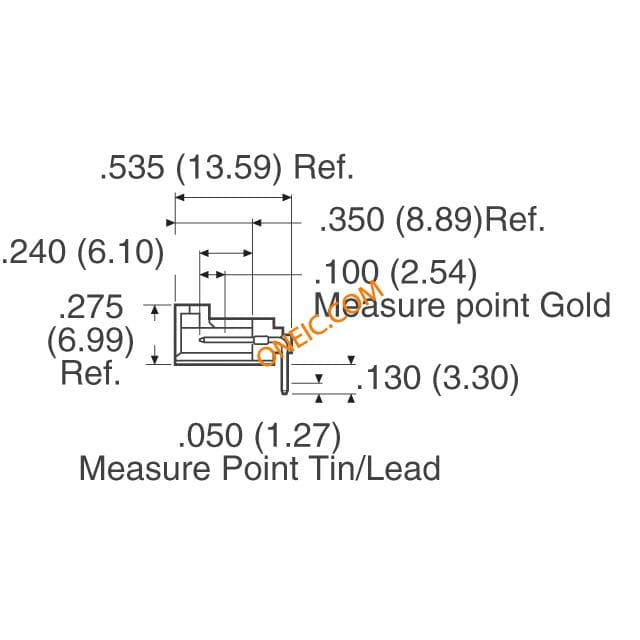

70553-0018
