点击放大查看

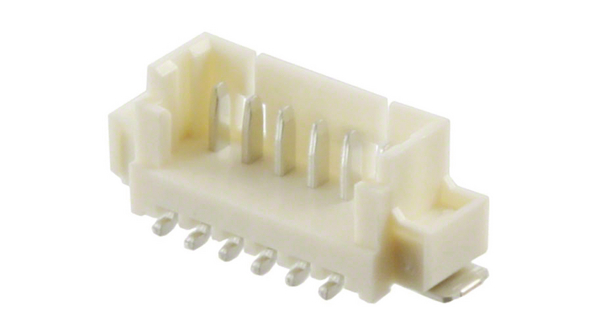

53398-0671
| 制造商 | Molex, LLC |
| 描述 | Conn Wire to Board HDR 6 POS 1.25mm Solder ST SMD Embossed T/R Molex 53398 Series 1.25mm Pitch 6 Way 1 Row Straight PCB Header, Solder Termination, 1A Headers & Wire Housings VERTICAL HDR SMT 6P HEADER, VERTICAL, SMT, 6WAY WIRE-BOARD CONNECTOR HEADER 6POS, 1.25MM .049 Pitch PicoBlade Header, Surface Mount, Vertical, Lead-free, 6 Circuits Pin header SMD 1.25 mm Poles 6 PicoBlade, 53398-0671, Molex Molex PICOBLADE 系列 1.25mm节距 6路 (1排) 直 PCB 针座, 焊接端接, 1A , 表面安装 |
| 分类 |
对参数有疑问？问 AI 助手
商业参数
| 商标名 | PicoBlade | 零件号别名 | 0533980671 53398-0671 BULK |
| 产品类别 | Headers & Wire Housings | 标准包装数量 | Tape & Reel |
| 工厂包装数量 | 1000 | ||
合规参数
| RoHS | Compliant | 海关税号 | 85369010 |
电气参数
| 量程（°/s） | :MOLEX - PicoBlade 53398 Series | 额定电压 | 125 V |
| 工作电压 | :125V | 击穿电压 | :250V |
| 最大额定电流 | 1A | 绝缘电阻 | :100Mohm |
机械参数
| 深度 | :3.7mm | 间距 | 1.25mm |
| 长度 | :4.7mm | 重量 | 0.01 |
| 包装方式 | Reel | 端接方式 | Solder |
| 引脚间距 | :1.25mm | 安装类型 | Straight |
| 连接器类型 | :Wire to Board | 接触镀层 | Tin |
| 排数 | 1 | 封装形式 | :GF Nylon UL94V-0 |
| 触头材料 | Phosphor Bronze | 壳体材料 | Nylon |
| 端接样式 | SMD | 触点数 | 6 |
| 接触件端接 | :Surface Mount Vertical | ||
产品信息
| 类型 | Wire to Board | 连接器性别 | :Header |
| 系列 | 53398 | CAD图纸 | 3D CAD Model |
| 产品子类型 | Headers | ||
环境参数
| 工作温度 | :85°C | ||
