点击放大查看

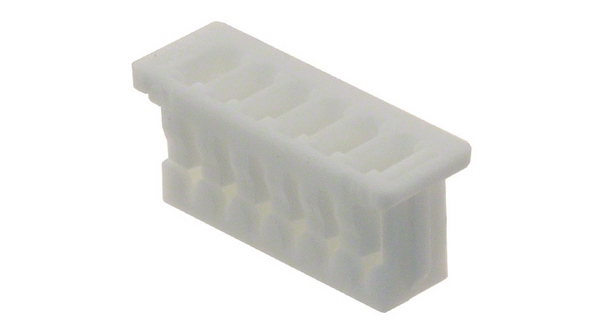

51021-0600
| 制造商 | Molex, LLC |
| 描述 | CONN HOUSING 6POS 1.25MM 6 way receptacle housing,1.25mm pitch Headers & Wire Housings RECEPTACLE 6 POS Conn Housing F 6 POS 1.25mm Crimp ST Cable Mount Bag CRIMP HOUSING, 1.25MM, 6WAY WIRE-BOARD CONNECTOR RECEPTACLE, 6POS, 1.25MM 1.25mm Wire-to-Board Receptacle Housing; 6 Circuit Crimp housing 1.25 mm Poles 6 PicoBlade, 51021-0600, Molex Molex PICOBLADE 系列 1.25mm 节距 6 路 直 母 电缆安装 压接连接器外壳 |
| 分类 |
商业参数
| 商标名 | PicoBlade | 零件号别名 | 0510210600 |
| 产品类别 | Headers & Wire Housings | 工厂包装数量 | 2000 |
合规参数
| RoHS | RoHS Compliant | 海关税号 | 85369010 |
电气参数
| 量程（°/s） | :MOLEX - PicoBlade 51021 Series | 额定电压 | :125V |
| 工作电压 | :125V | 接触电阻 | :20mohm |
| 介电强度 | :250V | 最大额定电流 | :1A |
| 绝缘电阻 | :100Mohm | ||
机械参数
| 颜色 | :Natural | 深度 | 3.95mm |
| 间距 | 1.25mm | 宽度 | 3.2mm |
| 长度 | 9.25mm | 重量 | 0.002 |
| 端接方式 | :Crimp | 基体材料 | :PBT Polyester |
| 安装类型 | Straight | 连接器类型 | :Wire to Board |
| 接触镀层 | :Tin | 安装样式 | Wire |
| 排数 | 1 | 封装形式 | :GF Nylon UL94V-0 |
| 触头材料 | :Phosphor Bronze | 壳体材料 | PBT |
| 端接样式 | Crimp | 第一触头极性 | Socket (Female) |
| 触点数 | 6 | 接触件端接 | :Crimp |
| 第一连接器安装类型 | :PCB | ||
产品信息
| 连接器性别 | Female | 系列 | 51021 |
| CAD图纸 | 3D CAD Model | 产品子类型 | Receptacles / Sockets - Housings |
| 适用产品/相关产品 | PicoBlade Wire-to-Board Connector, PicoBlade Wire-to-Wire Connector | ||
环境参数
| 工作温度 | :85°C | ||
文档与媒体
相关型号
06-66-0013
Molex
Cable Assemblies 50058 12 CUSTOM Socket to socket crimped lead,300mm L Specialized Cables 50058 12 CUSTOM Discrete Wire, 28AWG, 0.30m RED -wire LEAD, SKT/SKT, 300MM, 28AWG, PK10 Pre-crimped lead 2 x female 300 mm red, 06-66-0013, Molex Molex 测试引线 300mm长
53261-0671
molex
Conn Shrouded Header HDR 6 POS 1.25mm Solder RA SMD Embossed T/R Molex 53261 Series 1.25mm Pitch 6 Way 1 Row Right Angle PCB Header, Solder Termination, 1A Headers & Wire Housings 1.25MM HDR 6 CKT Right-Angle HEADER, RIGHT ANGLE, SMT, 6WAY Pin header 90° SMD 1.25 mm Poles 6 PicoBlade, 53261-0671, Molex Molex PICOBLADE 系列 1.25mm节距 6路 (1排) 直角 PCB 针座, 焊接端接, 1A , 表面安装
06-66-0015
molex
Cable Assembly 0.304m 28AWG Crimp Terminal F Crimp Cable Assemblies DISCRETE WIRE 28AWG 0.30M RED Socket to free end crimped lead,300mm L Specialized Cables DISCRETE WIRE 28AWG 0.30M RED LEAD, SKT/FREE END, 300MM, 28AWG, PK10 Pre-crimped lead 1 x female-1 x free end 300 mm red, 06-66-0015, Molex Molex 测试引线 300mm长

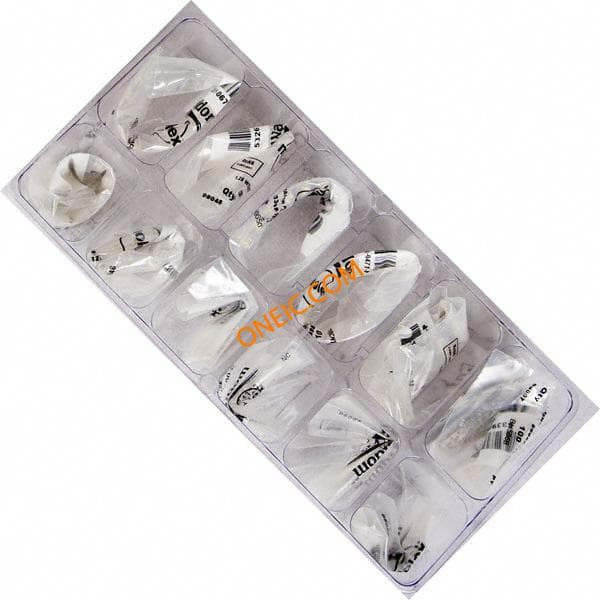

76650-0129
