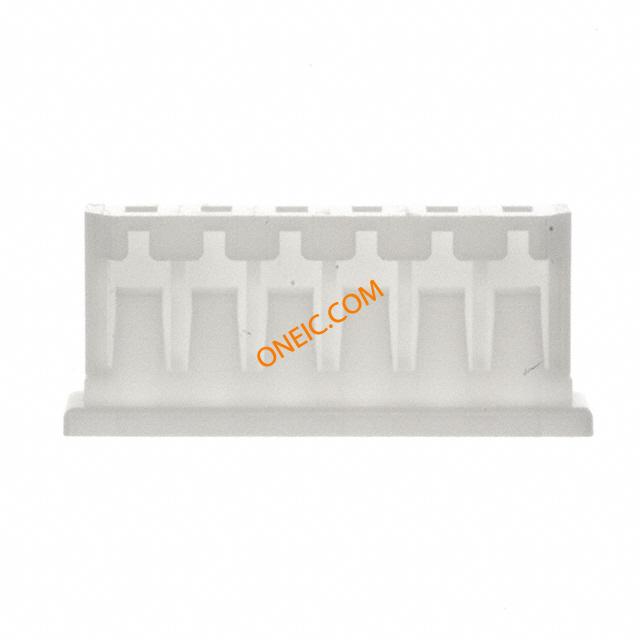

51004-0600
| 制造商 | |
| 描述 | Conn Housing RCP 6 POS 2mm Crimp ST Cable Mount Bag CONN RCPT HOUSING 2MM 6POS SGL Housing,rcp,MicroBlade,2.0mm,LoPro,6way Headers & Wire Housings 2MM W-T-B HSG 6P friction lock Conn Housing RCP 6 POS 2mm ST Bag 2.0MM LOW PROFILE HOUSING Molex MICROBLADE 系列 2mm 节距 6 路 直 母 电缆安装 压接连接器外壳 |
| 分类 |
商业参数
| 商标名 | MicroBlade | 零件号别名 | 0510040600 |
| 产品类别 | Headers & Wire Housings | 标准包装数量 | Bulk |
| 工厂包装数量 | 1000 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | ||
电气参数
| 最大额定电流 | 2 A | 连接器类型 - 电压输入 | Crimp |
机械参数
| 颜色 | Natural | 深度 | 5.8mm |
| 间距 | 2 mm | 长度 | 14mm |
| 包装方式 | Bulk | 方向 | 直 |
| 触点形式 | Female Socket | 触头类型 | Female Socket |
| 安装类型 | Straight | 连接器类型 | Receptacle |
| 紧固类型 | Locking Ramp | 安装样式 | Wire |
| 排数 | 1 | 壳体材料 | PBT |
| 端接样式 | Crimp | 第一触头极性 | Socket (Female) |
| 触点数 | 6 | 接触件端接 | Crimp |
| 位数 | 6 | ||
产品信息
| 备注 | Contacts Not Provided | 类型 | Housing |
| 连接器性别 | RCP | 系列 | 51004 |
| 产品子类型 | Receptacles / Sockets - Housings | 基础产品编号 | 51004 |
| 输出配置 | Free Hanging (In-Line) | 适用产品/相关产品 | MicroBlade Wire-to-Board Connector |
