点击放大查看

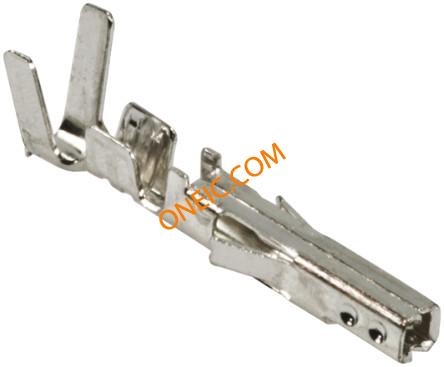

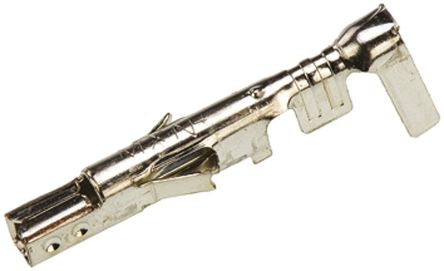

44476-1112
| 制造商 | Molex, LLC |
| 描述 | Headers & Wire Housings SOCKET 18-20 BULK Crimp terminal,MiniFit,female,18-20awg Contact SKT Crimp ST Cable Mount Reel CONTACT, SOCKET, 20-18 AWG, CRIMP Series Mini-Fit HCS Female Terminals; Tin; 18-20 AWG Crimp socket 13 A Female 20...18 AWG, 44476-1112, Molex Molex Mini-Fit Plus HCS 系列 母 压接接线端子, 压接, 镀锡镀镍触点 |
| 分类 |
商业参数
| 商标名 | Mini-Fit HCS | 零件号别名 | 0444761112 |
| 产品类别 | Headers & Wire Housings | 工厂包装数量 | 8000 |
合规参数
| RoHS | RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 海关税号 | 85369010 | ||
电气参数
| 接触电阻 | 10mΩ | 最大额定电流 | 11 A |
机械参数
| 长度 | 14.86 mm | 重量 | 0.00002 |
| 包装方式 | Bag | 绝缘类型 | Not Insulated |
| 导线线规 | 20-18 | 端接方式 | Crimp |
| 接触镀层 | Tin | 触头材料 | High Performance Alloy (HPA) |
| 端接样式 | Crimp | 第一触头极性 | Socket (Female) |
| 接触件端接 | :Crimp | 线规或范围 - AWG | :20AWG |
产品信息
| 连接器性别 | Female | 系列 | 44476 |
| 产品子类型 | Contacts | 适用产品/相关产品 | :Mini-Fit HCS Housings |
环境参数
| 工作温度 | +105°C | ||
