点击放大查看

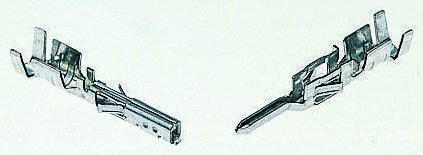

43031-0011
| 制造商 | Molex, LLC |
| 描述 | Crimp,male,Au plated,phos,26-30AWG,bag Headers & Wire Housings MALE CRIMP TERM 26-30AWG Contact PIN Crimp ST Cable Mount Bag CONTACT, SOCKET, 30-26AWG, CRIMP MICROFIT3.0MCRPTERMLSE15AU26-30 Molex MICRO-FIT 3.0 系列 公 压接接线端子, 压接, 镀金镀镍触点 |
| 分类 |
商业参数
| 商标名 | Micro-Fit 3.0 | 零件号别名 | 0430310011 |
| 产品类别 | Headers & Wire Housings | 工厂包装数量 | 12000 |
合规参数
| RoHS | RoHS Compliant | 海关税号 | 85369010 |
电气参数
| 接触电阻 | 10mΩ | ||
机械参数
| 重量 | 0 | 导线线规 | 30-26 |
| 端接方式 | Crimp | 接触镀层 | Gold over Nickel |
| 触头材料 | Phosphor Bronze | 端接样式 | Crimp |
| 第一触头极性 | Pin (Male) | 接触件端接 | :Crimp |
| 线规或范围 - AWG | :30AWG | ||
产品信息
| 连接器性别 | Male | 系列 | 43031 |
| 产品子类型 | Contacts | 适用产品/相关产品 | :Micro-Fit 3.0 Plug Housings |
环境参数
| 工作温度 | +105°C | ||
