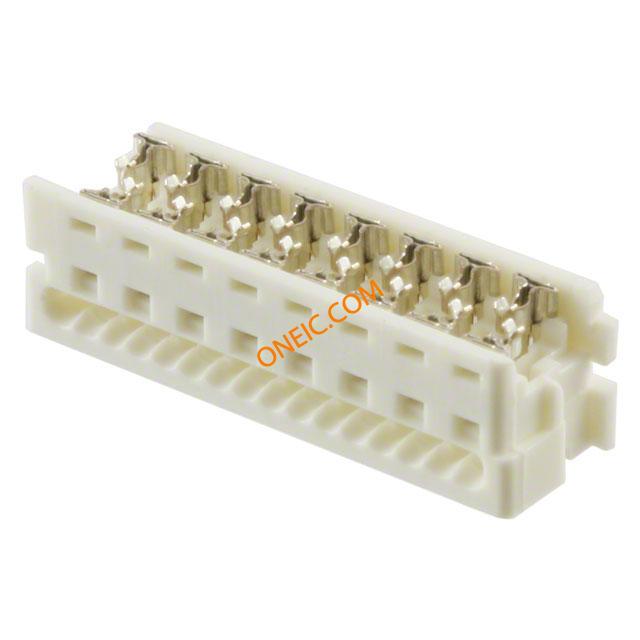

点击放大查看
0903270316
| 制造商 | Molex, LLC |
| 描述 | Conn IDC Connector RCP 16 POS 2.54mm IDT RA Cable Mount Bag CONN RECEPT IDT 16POS 1.27MM TIN Connector: wire-board; PicoFlex; plug; female; 16; tinned; 1.2A |
| 分类 |
商业参数
| 交货时间 | 37 Days | 子类别 | Connector Headers and PCB Receptacles |
| 标准包装数量 | Bulk | ||
合规参数
| RoHS | Lead free / RoHS Compliant | ||
电气参数
| 最大电压 | 250V | 最大额定电流 | 1.2A |
机械参数
| 颜色 | White | 间距 | 2.54 mm |
| 重量 | 1.05 g | 包装方式 | Bag |
| 导线类型 | Ribbon Cable | 导线线规 | 26-28 AWG |
| 端接方式 | IDT | 触头类型 | Female Socket |
| 柱间距 | 1.27mm | 安装类型 | Free Hanging (In-Line) |
| 连接器类型 | Receptacle | 接触镀层 | Tin Over Nickel |
| 安装样式 | for ribbon cable | 排数 | 2 |
| 包装数量 | 400 | 电缆端接方式 | IDC |
| 连接器 - 电缆 | plug | 触点数 | 16 |
| 位数 | 16 | 接触镀层厚度 | 78.7µin (2.00µm) |
| 触点材料 - 镀层 | tinned | 第一连接器安装特征 | 2x8 |
产品信息
| SPG | 400 | 类型 | IDC Connector |
| 连接器性别 | RCP | 产品特性 | Feed Through |
| 适配器系列 | PicoFlex | 单元数量 | 1 |
| 行业别名 | 90327-0316, 903270316 | ||
