点击放大查看

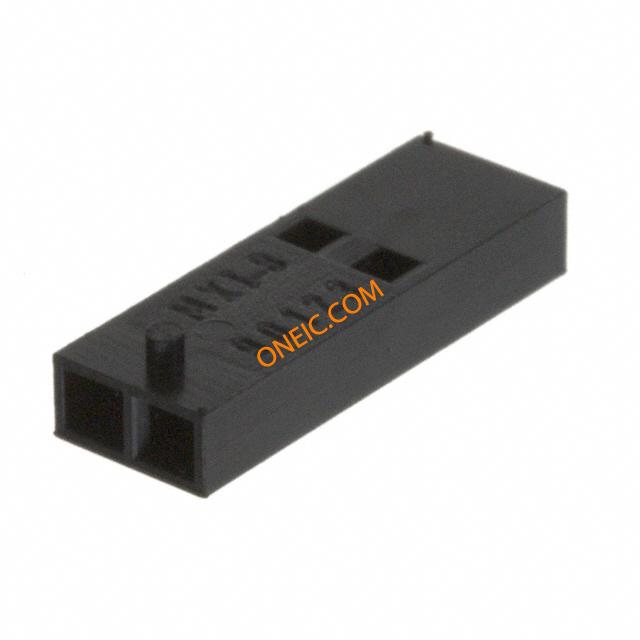

0901230102
| 制造商 | Molex, LLC |
| 描述 | Conn Housing RCP 2 POS 2.54mm Crimp ST Bag CONN HOUSING 2POS .100" SINGLE Plug; wire-board; C-Grid III; female; PIN:2; w/o terminals; 2.54mm |
| 分类 |
商业参数
| 标准包装数量 | Bulk | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
| 材料阻燃等级 | UL94V-1 | ||
电气参数
| 额定电压值 | 350V AC | 连接器类型 - 电压输入 | w/o terminals |
机械参数
| 颜色 | Black | 深度 | 15.24 mm |
| 间距 | 2.54 mm | 高度 | 3.43 mm |
| 重量 | 0.12 g | 包装方式 | Bag |
| 触头类型 | Female Socket | 柱间距 | 2.54mm |
| 外壳颜色 | Black | 安装类型 | Straight |
| 连接器类型 | Receptacle | 安装样式 | for cable |
| 排数 | 1 | 壳体材料 | Polyphenylene Oxide |
| 总长度 | 5.08 mm | 包装数量 | 8000 |
| 连接器 - 电缆 | plug | 触点数 | 2 |
| 接触件端接 | Crimp | 位数 | 2 |
| 第一连接器安装特征 | 1x2 | ||
产品信息
| SPG | 8000 | 备注 | Contacts Not Provided |
| 类型 | Housing | 连接器性别 | RCP |
| 产品特性 | Polarizing Key | 适配器系列 | C-Grid III |
| 单元数量 | 1 | ||
环境参数
| 工作温度 | -55C to 105C | ||
文档与媒体
相关型号
0901192109
molex
Contact SKT Crimp ST Cable Mount Bag CONN SOCKET 22-24AWG .100" TIN Conn Contact F 1 POS Crimp ST Cable Mount Bag Contact; female; 22÷24AWG; C-Grid III; tinned; crimped; in bulk; 3A
0901190110
molex
Contact SKT Crimp ST Cable Mount Reel CONN TERM FEMALE 22-24AWG GOLD Contact; female; 22÷24AWG; C-Grid III; tinned; crimped; tape; 3A
0901200762
molex
Conn Unshrouded Header HDR 2 POS 2.54mm Solder ST Thru-Hole Bag Conn Unshrouded Header HDR 2 POS 2.54mm Solder ST Thru-Hole Tray CONN HEADER 2POS .100" STR GOLD
0901190109
molex
Contact SKT Crimp ST Cable Mount T/R CONN TERM FEMALE 22-24AWG TIN Contact; female; 22÷24AWG; C-Grid III; tinned; crimped; tape; 3A
0901190122
molex
Contact SKT Crimp ST Cable Mount Reel C-GRID TERM FEM CRP 26/28AWG
0901192120
molex
Contact SKT Crimp ST Cable Mount Bag CONN SOCKET 26-28AWG .100" TIN

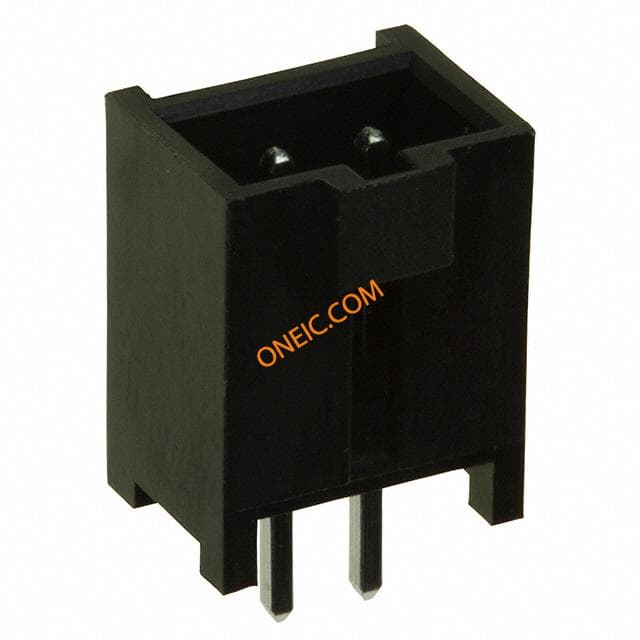

0901361102
molex
Conn Shrouded Header HDR 2 POS 2.54mm Solder ST Thru-Hole Tray CONN HEADER 2POS .100" STR TIN

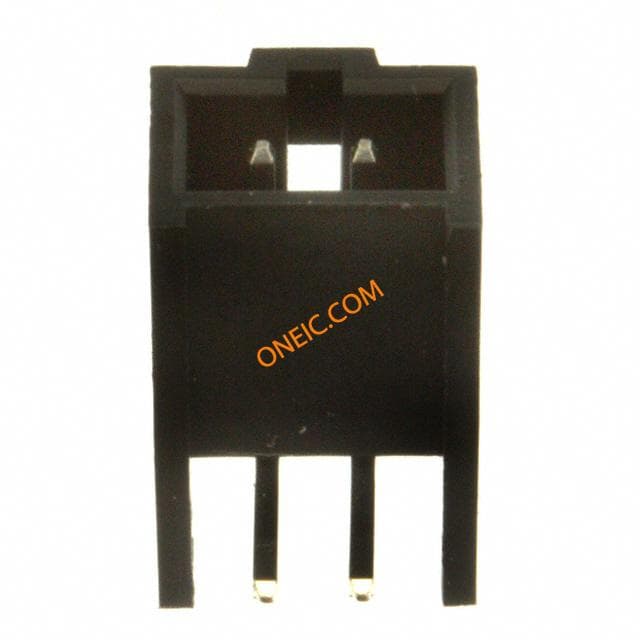

0901362102
molex
Conn Shrouded Header HDR 2 POS 2.54mm Solder RA Thru-Hole Tray CONN HEADER 2POS .100" R/A TIN
0901210762
molex
Conn Unshrouded Header HDR 2 POS 2.54mm Solder RA Thru-Hole Bag Conn Unshrouded Header HDR 2 POS 2.54mm Solder RA Thru-Hole Tray CONN HEADER 2POS .100" R/A GOLD Pin header; pin strips; C-Grid III; male; PIN:2; angled 90°; THT

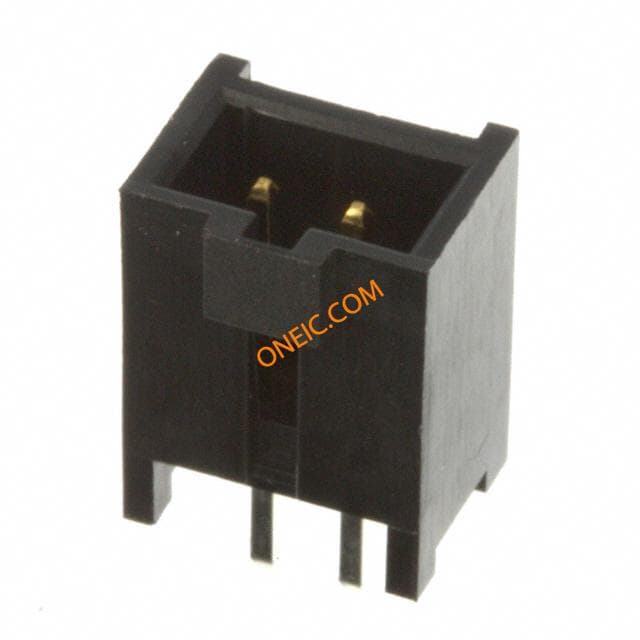

0901361202
molex
Conn Shrouded Header HDR 2 POS 2.54mm Solder ST Thru-Hole Tray CONN HEADER 2POS .100" STR GOLD
90119-2111
Molex
Headers & Wire Housings FM C-GRID TERM 22/24AWG CONN TERM FEMALE 22-24AWG C-Grid III Terminal 22-24 AWG gold, bag Contact SKT Crimp ST Cable Mount Loose Piece TERMINAL, FEMALE, AWG22-24 C-GRID TERM FEM CRP LP AU-F 22/24AWG Contact; female; 22÷24AWG; C-Grid III; gold plated; crimped; 3A Molex C-GRID III 系列 母 压接接线端子, 压接, 镀金镀镍触点
0901210122
Molex
Conn Unshrouded Header HDR 2 POS 2.54mm Solder RA Thru-Hole Tray CONN HEADER 2POS .100" R/A TIN Conn Unshrouded Header HDR 2 POS 2.54mm Solder RA Thru-Hole Bag
0901200122
Molex
Conn Unshrouded Header HDR 2 POS 2.54mm Solder ST Thru-Hole Tray CONN HEADER 2POS .100" STR TIN Pin header; pin strips; C-Grid III; male; PIN:2; straight; 2.54mm
0901192110
Molex
Contact SKT Crimp ST Cable Mount Bag CONN SOCKET 22-24AWG .100" GOLD Contact; female; 22÷24AWG; C-Grid III; gold plated; crimped; 3A
0901192121
Molex
Contact SKT Crimp ST Cable Mount Bag CONN SOCKET 26-28AWG .100" GOLD Contact; female; 26÷28AWG; C-Grid III; gold plated; crimped; 3A

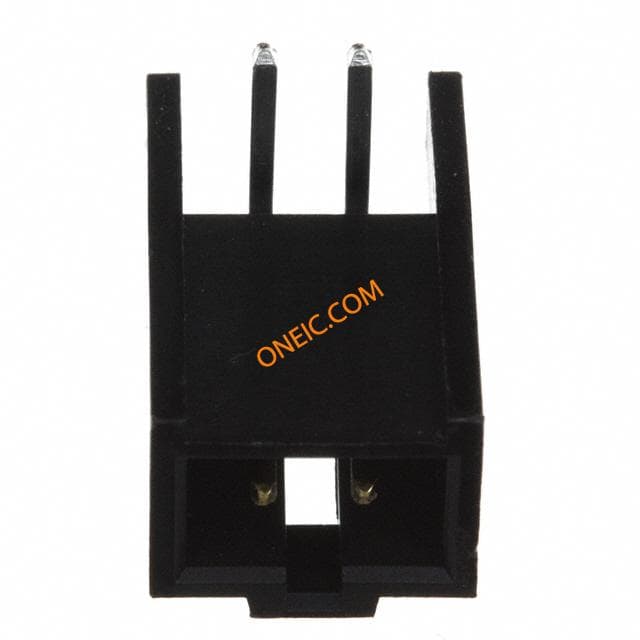

90136-2202
