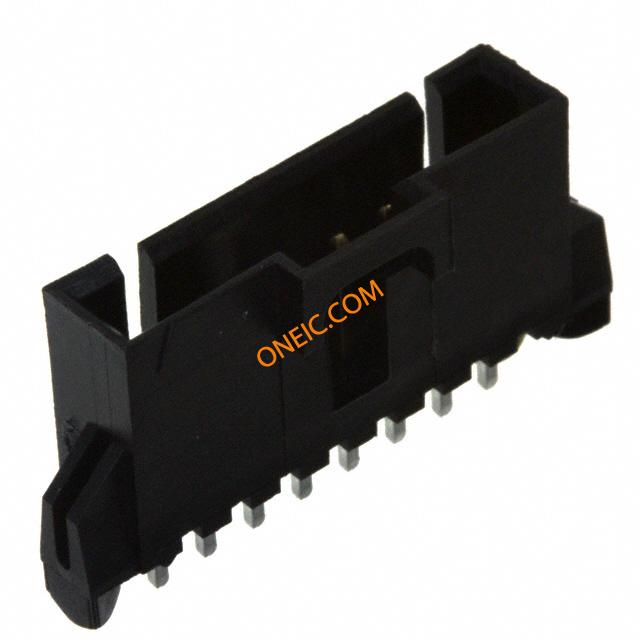

0705450042
| 制造商 | Molex, LLC |
| 描述 | Conn Shrouded Header HDR 8 POS 2.54mm Solder ST Thru-Hole Tube CONN HEADER 8POS .100 VERT 15AU |
| 分类 |
商业参数
| 交货时间 | 36 Days | 子类别 | Connector Headers and PCB Receptacles |
| 标准包装数量 | Rail / Tube | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
电气参数
| 接触电阻 | 30 | 最大额定电流 | 3/Contact |
| 最小输入电压 | 250V | ||
机械参数
| 颜色 | Black | 深度 | 6.6 |
| 间距 | 2.54 mm | 高度 | 11.43 |
| 包装方式 | Tube | 端接方式 | Solder |
| 触头类型 | Male Pin | 外壳颜色 | Black |
| 安装类型 | Through Hole | 连接器类型 | Header, Shrouded |
| 接触镀层 | Gold Over Nickel | 排数 | 1 |
| 触头材料 | Phosphor Bronze | 壳体材料 | Polyester |
| 触点数 | 8 | 位数 | 8 |
| 接触长度 - 配合 | 0.240" (6.10mm) | 接触镀层厚度 | 15µin (0.38µm) |
产品信息
| 类型 | Shrouded Header | 连接器性别 | HDR |
| 产品特性 | Board Guide | 行业别名 | 70545-0042, 705450042 |
| 加载位置数 | All | ||
文档与媒体
相关型号

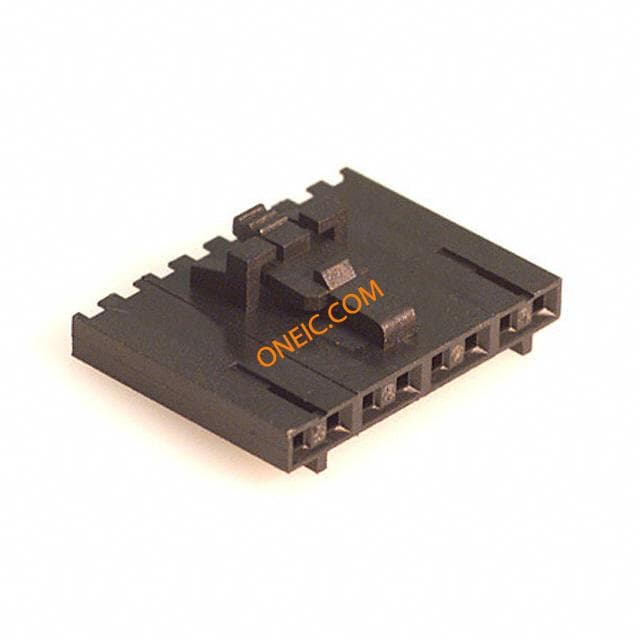

0050579408
molex
Conn Housing F 8 POS 2.54mm Crimp ST Cable Mount Bag CONN HOUSING 8POS .100 W/LATCH

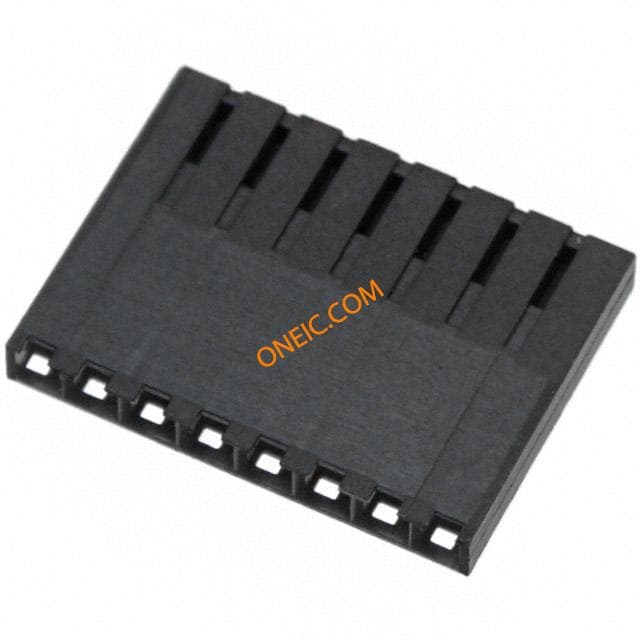

0050579208
Molex
Conn Housing RCP 8 POS 2.54mm Crimp ST Bag CONN HSG 8POS .100 SINGLE VER C
14-56-2081
molex
Conn IDC Connector F 8 POS 2.54mm IDT ST Cable Mount Tube CONN IDC 8POS .100 GOLD 24AWG
0009482041
Molex
Conn Socket Strip RCP 4 POS 3.96mm Solder RA Thru-Hole Tray CONN RCPT R/A 4POS TIN PCB
0704002082
Molex Inc
CONN SL IDT OPT G GOLD 8POS
0704003084
Molex Inc
CONN SL IDT OPT D GOLD 8POS

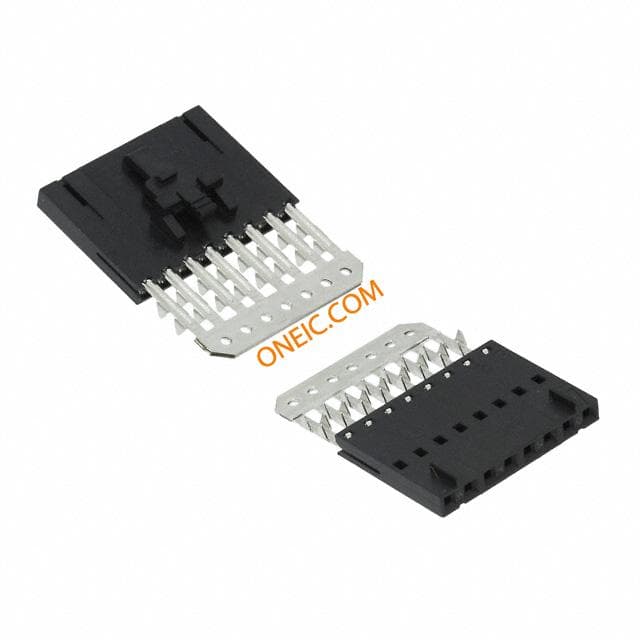

15-38-8080
Molex Connector Corporation
CONN FFC FEMALE 8POS .100 TIN FFC & FPC Connectors SL FFC/FPC Opt G Fem 8CKT TIN Conn IDC Connector F 8 POS 2.54mm IDT ST Cable Mount Tube

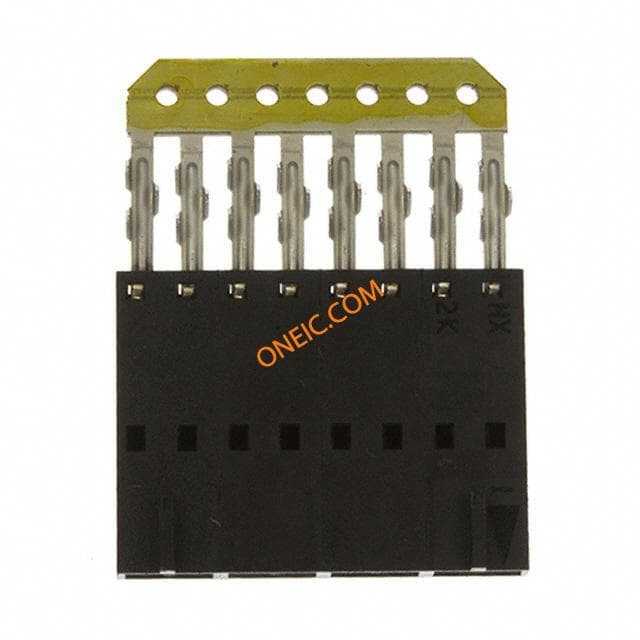

15-47-4083
Molex Connector Corporation
CONN FFC FEMALE 8POS .100 GOLD FFC & FPC Connectors RECP FEMALE SNGL 8P Conn IDC Connector F 8 POS 2.54mm IDT ST Cable Mount Tube

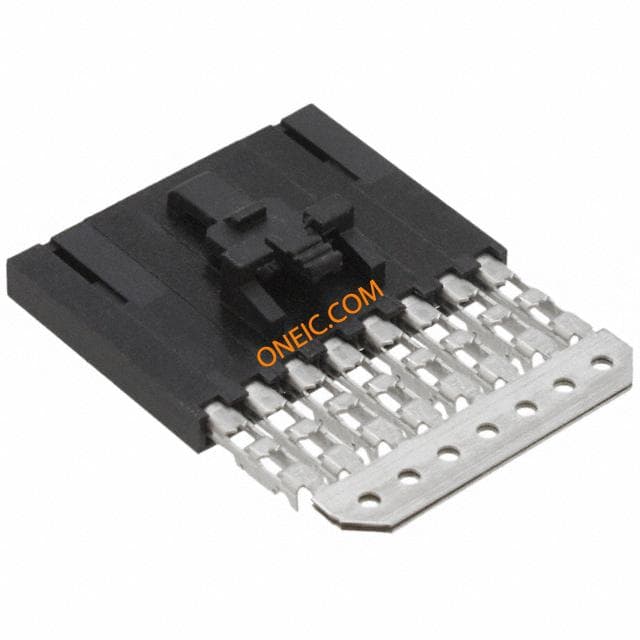

14-56-2082
