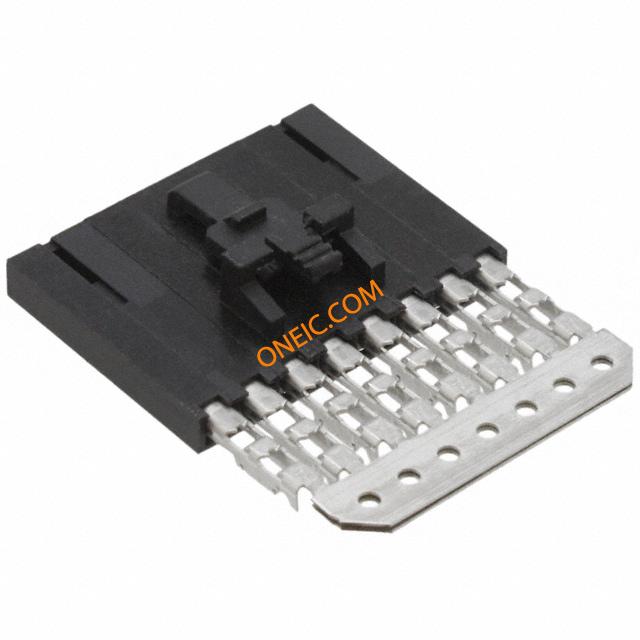

点击放大查看
14-56-2082
| 制造商 | Molex, LLC |
| 描述 | CONN IDC 8POS .100 GOLD 24AWG Headers & Wire Housings CGrid SL IDT Opt G 15 SAu 8Ckt 2.54mm Pitch SL™ Insulation Displacement Connector Assembly, Female, Single Row, Version G, Positive Lock, Wire Size 24 AWG, 0.38µm Gold ... 2.54mm Pitch SL™ Insulation Displacement Connector Assembly, Female, Single Row, Version G, Positive Lock, Wire Size 24 AWG, 0.38µm Gold (Au), 8 Circuits |
| 分类 |
商业参数
| 商标名 | C-Grid, SL | 零件号别名 | 0014562082 A-70400-0672 |
| 产品类别 | Headers & Wire Housings | 标准包装数量 | 1 |
| 工厂包装数量 | 780 | ||
合规参数
| RoHS | RoHS Compliant | ||
电气参数
| 额定电压 | 250 V | 最大额定电流 | 3 A |
机械参数
| 颜色 | Black | 间距 | 0.100" (2.54mm) |
| 包装方式 | Tube | 导线类型 | Discrete or Ribbon Cable |
| 导线线规 | 24 AWG | 触头类型 | Female Socket |
| 安装类型 | Free Hanging (In-Line) | 连接器类型 | Receptacle |
| 接触镀层 | Gold | 紧固类型 | Latch Lock |
| 安装样式 | Cable | 排数 | 1 |
| 触头材料 | Phosphor Bronze | 壳体材料 | Polyester Alloy |
| 电缆端接方式 | IDC | 端接样式 | IDC |
| 第一触头极性 | Socket (Female) | 触点数 | 8 |
| 位数 | 8 | 接触镀层厚度 | 15µin (0.38µm) |
产品信息
| 系列 | 70400 | 产品特性 | Closed End |
| 产品子类型 | Receptacles / Sockets - Housings | ||
