点击放大查看

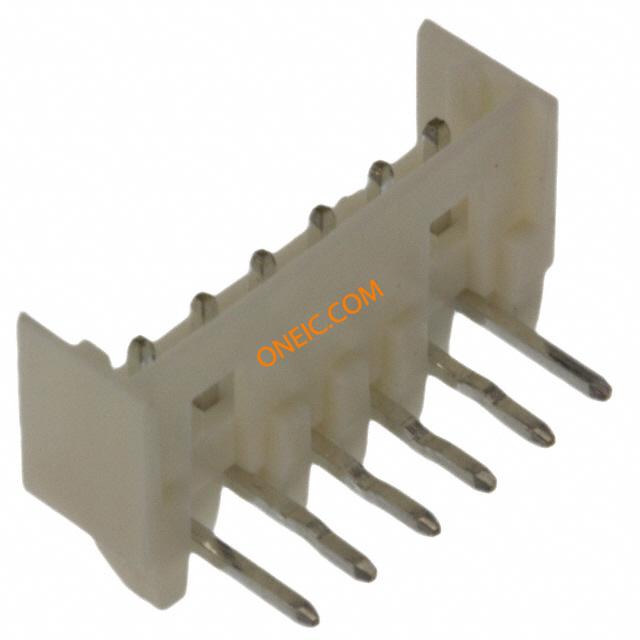

0532540670
| 制造商 | Molex, LLC |
| 描述 | Conn Wire to Board HDR 6 POS 2mm Solder RA Thru-Hole Tray CONN HEADER 6POS 2MM RT ANG TIN |
| 分类 |
对参数有疑问？问 AI 助手
商业参数
| 标准包装数量 | 1 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
电气参数
| 最大额定电流 | 2/Contact A | 最小输入电压 | 125VAC |
| 最小供电电压 | 125VAC | ||

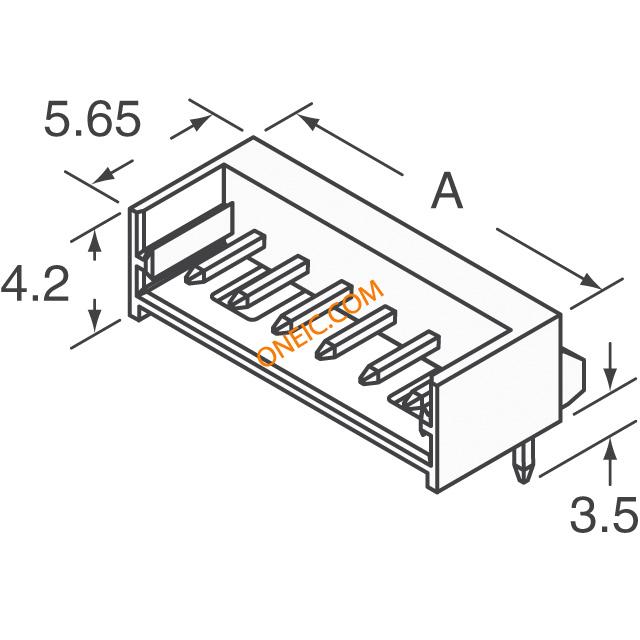

机械参数
| 深度 | 7.3 mm | 间距 | 0.079" (2.00mm) |
| 高度 | 4.2 mm | 包装方式 | Tray |
| 端接方式 | Solder | 触头类型 | Male Pin |
| 外壳颜色 | Natural | 安装类型 | Through Hole |
| 连接器类型 | Header, Shrouded | 接触镀层 | Tin |
| 安装样式 | Through Hole | 排数 | 1 |
| 触头材料 | Brass | 壳体材料 | Nylon |
| 总长度 | 14 mm | 触点数 | 6 |
| 位数 | 6 | 接触长度 - 配合 | 0.130" (3.30mm) |
产品信息
| 类型 | Wire to Board | 连接器性别 | HDR |
| 加载位置数 | All | ||
环境参数
| 工作温度 | -40C to 105C | ||
相关型号
0510650600
molex
Conn Housing RCP 6 POS 2mm Crimp ST Bag CONN RCPT HOUSING 6POS 2MM NATL
¥0.4712
详情

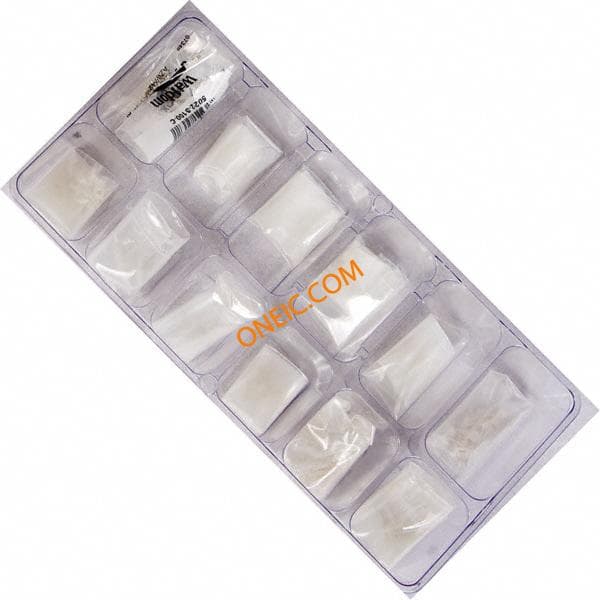

76650-0114
