0430250200
| 制造商 | Molex, LLC |
| 描述 | Conn Housing RCP 2 POS Crimp ST Bag CONN RECEPT 2POS 3MM VERT DUAL Plug; wire-board; female; 3mm; PIN:2; w/o terminals; 5A; UL94V-0 |
| 分类 |
商业参数
| 交货时间 | 20 Days | 子类别 | Connector Discrete Wire Housing |
| 标准包装数量 | Bulk | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
| 材料阻燃等级 | UL94V-0 | ||
电气参数
| 额定电压 | 250V | 最大额定电流 | 5A |
| 最小输入电压 | 600VDC|600VAC | 最小供电电压 | 600VDC/600VAC |
| 连接器类型 - 电压输入 | w/o terminals | ||
机械参数
| 颜色 | Black | 深度 | 14 mm |
| 间距 | 0.118" (3.00mm) | 重量 | 0.34 g |
| 材料（通用） | polyester | 包装方式 | Bag |
| 排间距 | 0.118" (3.00mm) | 触点形式 | Female Socket |
| 触头类型 | Female Socket | 引脚间距 | 0.118" (3.00mm) |
| 柱间距 | 3mm | 外壳颜色 | Black |
| 安装类型 | Straight | 连接器类型 | Receptacle |
| 紧固类型 | Latch Lock | 安装样式 | for cable |
| 排数 | 2 | 锁定特性 | lock |
| 壳体材料 | Polyester | 总长度 | 3.86 mm |
| 包装数量 | 250 | 尺寸/外形 | see |
| 连接器 - 电缆 | plug | 触点数 | 2 |
| 接触件端接 | Crimp | 位数 | 2 |
| 第一连接器安装特征 | 2x1 | ||
产品信息
| SPG | 250 | 备注 | Contacts Not Provided |
| 类型 | Housing | 连接器性别 | RCP |
| 系列 | Micro-Fit 3.0™ 43025 | 适配器系列 | Micro-Fit 3.0 |
| 单元数量 | 1 | 行业别名 | 43025-0200, 430250200 |
| 输出配置 | Free Hanging (In-Line) | ||
环境参数
| 工作温度 | -40C to 105C | ||
文档与媒体
相关型号
0430300003
Molex, LLC
Buy now, ships today. 0430300003 - Socket Contact Gold 20-24 AWG Crimp Power from Molex. View datasheets, pricing and availability from DigiKey now!
0430450202
Molex, LLC
Buy now, ships today. 0430450202 - Connector Header Through Hole, Right Angle 2 position from Molex. View datasheets, pricing and availability from DigiKey now!
0430450214
Molex, LLC
Buy now, ships today. 0430450214 - Connector Header Through Hole 2 position from Molex. View datasheets, pricing and availability from DigiKey now!
0430200201
molex
Conn Housing PL 2 POS Crimp ST Cable Mount Bag CONN PLUG 2POS 3MM VERT DUAL Conn Housing PL 2 POS 3mm Crimp ST Cable Mount Bag

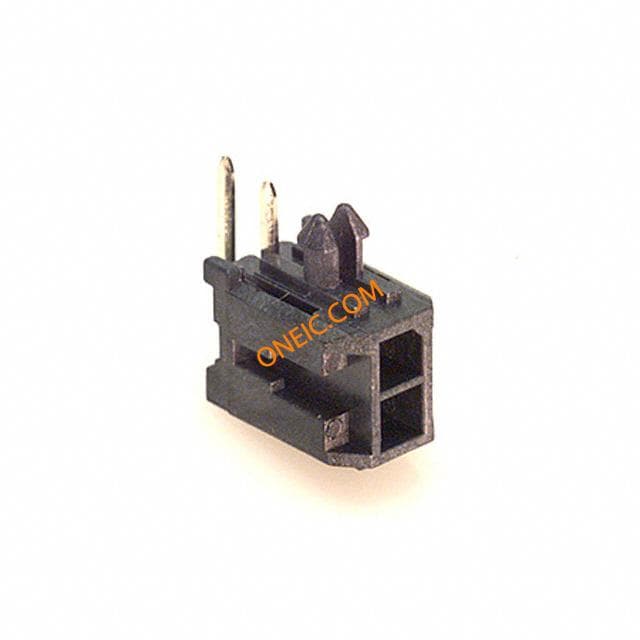

0430450200
molex
Conn Wire to Board HDR 2 POS 3mm Solder RA Thru-Hole Tray Conn Wire to Board HDR 2 POS Solder RA Thru-Hole Tray CONN HEADER 2POS 3MM RT ANG TIN Socket; wire-board; male; 3mm; PIN:2; tinned; Series: Micro-Fit 3.0
0430300001
Molex, LLC
Buy now, ships today. 0430300001 - Socket Contact Tin 20-24 AWG Crimp Power from Molex. View datasheets, pricing and availability from DigiKey now!
0430300006
molex
Contact SKT Crimp ST Cable Mount Reel CONN SOCKET 26-30AWG GOLD CRIMP
0430200200
molex
Conn Housing PL 2 POS Crimp ST Panel Mount Bag CONN PLUG 2POS 3MM DUAL PNL MNT Conn Housing PL 2 POS 3mm Crimp ST Bag Plug; wire-board; male; 3mm; PIN:2; Series: Micro-Fit 3.0; UL94V-0
0430450212
Molex, LLC
Buy now, ships today. 0430450212 - Connector Header Through Hole 2 position from Molex. View datasheets, pricing and availability from DigiKey now!

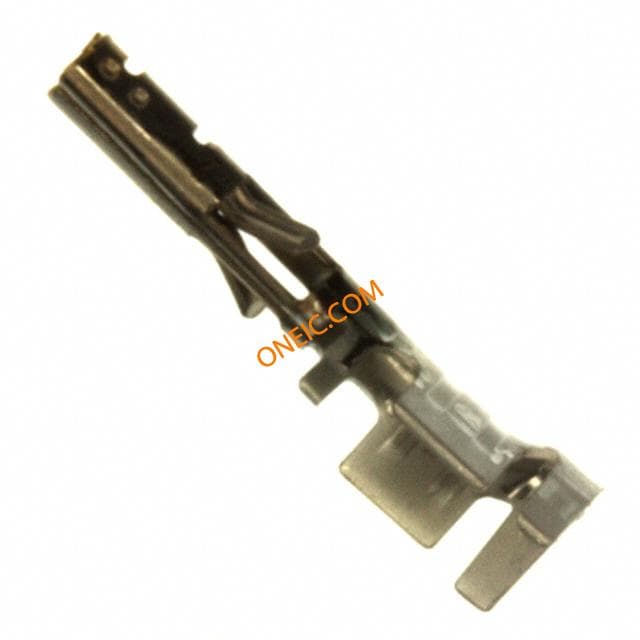

0430300008
molex
Contact SKT Crimp ST Cable Mount Bag CONN TERM FEMALE 20-24AWG 15GOLD
0430300010
molex
Contact F Crimp ST Cable Mount Bag Contact SKT Crimp ST Cable Mount Bag CONN TERM FEMALE 26-30AWG TIN Contact; female; 0.05÷0.128mm2; 26÷30AWG; Micro-Fit 3.0; tinned

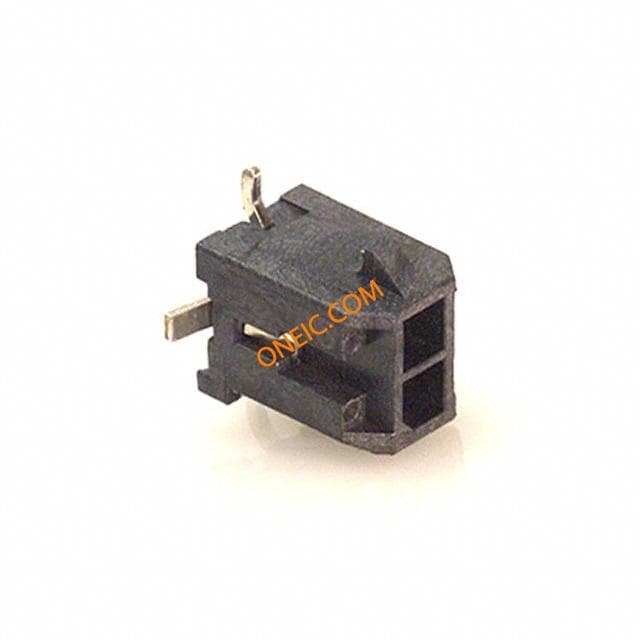

43045-0218
molex
Conn Wire to Board HDR 2 POS 3mm Solder ST SMD T/R CONN HEADER 2POS VERT SMD TIN Molex 43045 Series 3mm Pitch 2 Way 2 Row Straight PCB Header, Solder Termination, 5A Headers & Wire Housings 2 CKT VERT SMT HDR Conn Wire to Board HDR 2 POS Solder ST SMD Embossed T/R HEADER, SMT, VERTICAL, 2WAY MicroFit 3.0 V Hdr smt 2 ckt sn Pin header dual row SMD Pitch3 mm Poles 2 x 1 Micro-Fit, 43045-0218, Molex Molex MICRO-FIT 3.0 系列 3mm节距 2路 (2排) 直 PCB 针座, 焊接端接, 5A , 表面安装

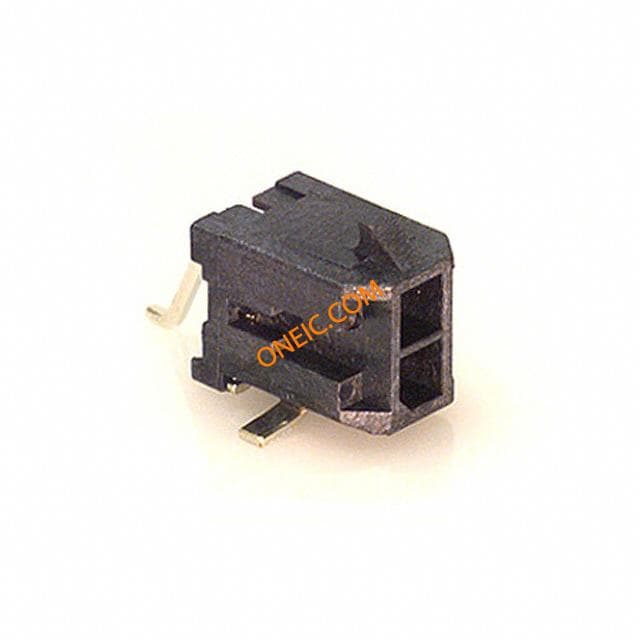

0430450209
Molex
Conn Wire to Board HDR 2 POS Solder RA SMD Embossed T/R CONN HEADER 2POS RT ANG SMD TIN

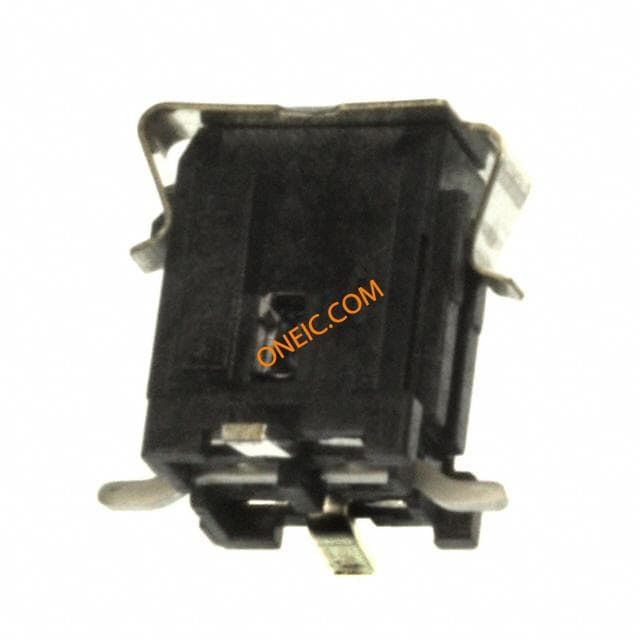

0430450219
Molex
Conn Wire to Board HDR 2 POS Solder ST SMD Embossed T/R CONN HEADER 2POS 3MM STR SMD AU
0430450213
Molex, LLC
Buy now, ships today. 0430450213 - Connector Header Through Hole 2 position from Molex. View datasheets, pricing and availability from DigiKey now!

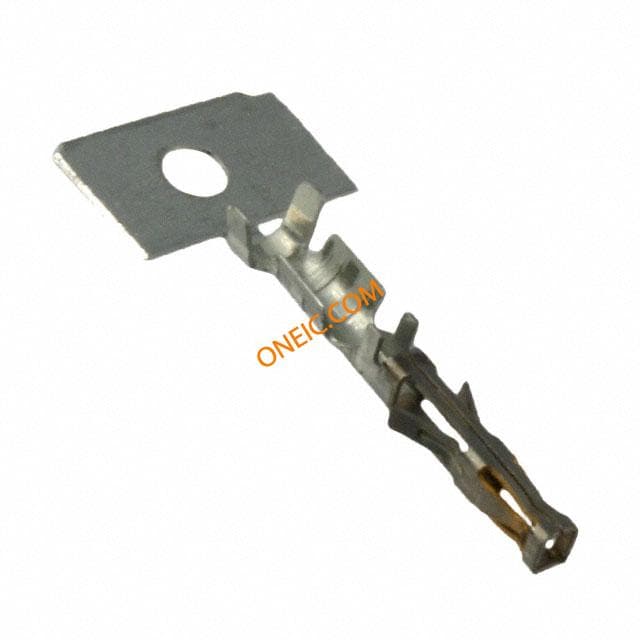

0462355004
Molex Inc
CONN TRM 30U 26-30AWG LUBRICATE

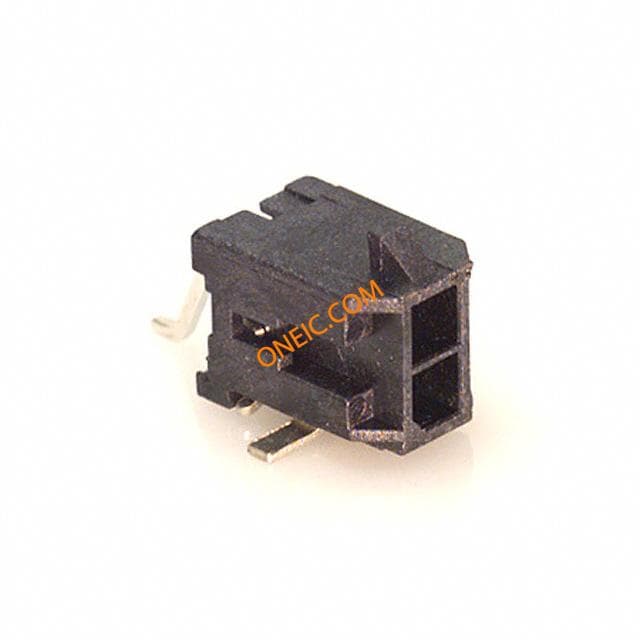

43045-0211
Molex Connector Corporation
CONN HEADER 2POS RT ANG SMD GOLD Molex 43045 Series 3mm Pitch 2 Way 2 Row Right Angle PCB Header, Solder Termination, 5A Headers & Wire Housings 2 CKT R/A SMT HDR Conn Wire to Board HDR 2 POS Solder RA SMD Embossed T/R MICROFIT3.0RASMT/NAILDR30AU2CKT Pin header dual row 90° SMD Pitch3 mm Poles 2 x 1 Micro-Fit, 43045-0211, Molex Molex MICRO-FIT 3.0 系列 3mm节距 2路 (2排) 直角 PCB 针座, 焊接端接, 5A , 表面安装

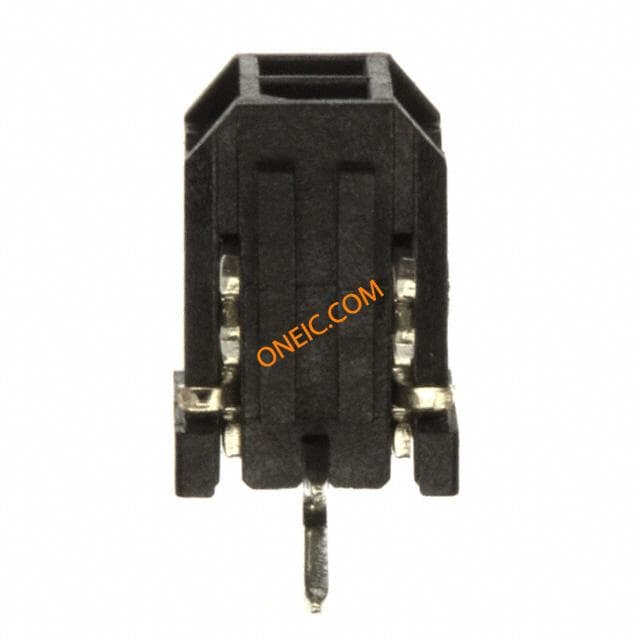

43045-0221
Molex Connector Corporation
CONN HEADER 2POS 3MM R/A TIN Molex 43045 Series 3mm Pitch 2 Way 2 Row Right Angle PCB Header, Solder Termination, 5A Conn Wire to Board HDR 2 POS Solder RA Thru-Hole Tray Molex MICRO-FIT 3.0 系列 3mm节距 2路 (2排) 直角 PCB 针座, 焊接端接, 5A , 通孔

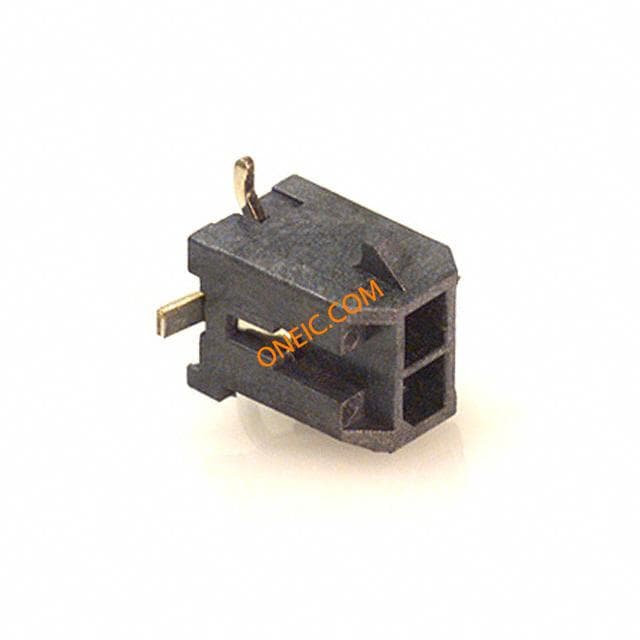

43045-0220
Molex Connector Corporation
CONN HEADER 2POS VERT SMD GOLD Molex 43045 Series 3mm Pitch 2 Way 2 Row Straight PCB Header, Solder Termination, 5A Headers & Wire Housings 2 CKT VERT SMT HDR Conn Wire to Board HDR 2 POS Solder ST SMD Embossed T/R MICROFIT3.0VHDR/NAILDR30AU2CKT Molex MICRO-FIT 3.0 系列 3mm节距 2路 (2排) 直 PCB 针座, 焊接端接, 5A , 表面安装

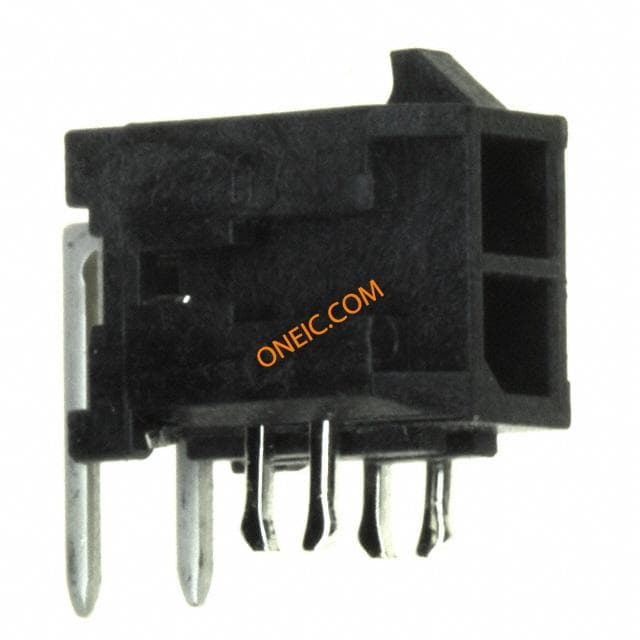

43045-0222
