点击放大查看

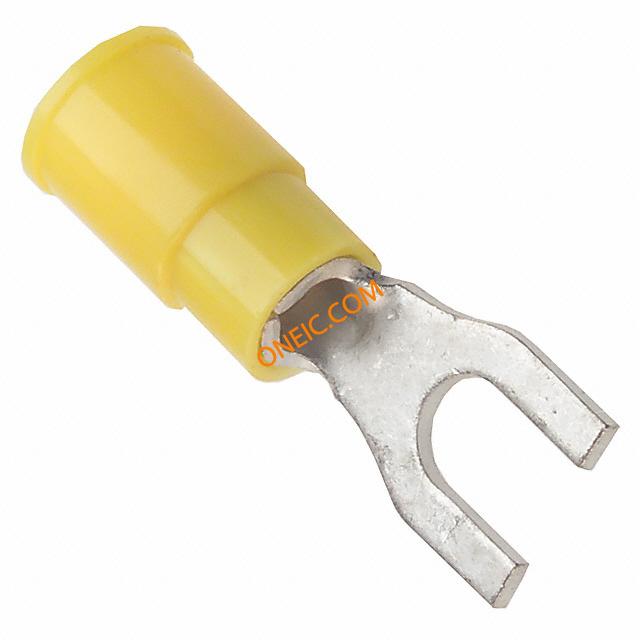

0191440042
| 制造商 | Molex, LLC |
| 描述 | Spade Tongue Terminal 10-12AWG 28mm 9.8mm Tin Loose Piece CONN TONGUE SPADE #10 10-12AWG |
| 分类 |
对参数有疑问？问 AI 助手
商业参数
| 标准包装数量 | 100 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
机械参数
| 颜色 | Yellow | 深度 | 9.8 |
| 镀层 | Tin | 包装方式 | Loose Piece |
| 绝缘类型 | Insulated | 导线线规 | 10-12 AWG |
| 端接方式 | Crimp | 基体材料 | Copper |
| 安装类型 | Free Hanging (In-Line) | 螺柱/焊片尺寸 | 10 Stud |
| 端子类型 | Standard | 接触镀层 | Electro-Tin |
| 触头材料 | Copper | 总长度 | 1.103" (28.02mm) |
| 绝缘直径 | 0.250" (6.35mm) | 绝缘材料 - 类型 | Polyvinyl Chloride |
| 外缘宽度 | 0.375" (9.53mm) | 端接长度 | 0.550" (13.97mm) |
| 绝缘材料 - 材质 | Poly-Vinyl Chloride (PVC) | 舌片内部开口 | 0.198" (5.03mm) |
| 环中心到端接长度 | 0.301" (7.65mm) | ||
产品信息
| 类型 | Spade Tongue Terminal | ||
文档与媒体
PDF 文档
