点击放大查看
0039014041
| 制造商 | Molex, LLC |
| 描述 | Conn Housing F 4 POS 4.2mm Crimp ST Cable Mount Bag CONN RECEPT 4POS VERT SINGLE |
| 分类 |
商业参数
| 标准包装数量 | Bulk | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
电气参数
| 最大额定电流 | 12/Contact A | 最小输入电压 | 600VDC|600VAC |
| 最小供电电压 | 600VDC/600VAC | ||
机械参数
| 颜色 | Natural | 深度 | 19.6 mm |
| 间距 | 0.165" (4.20mm) | 包装方式 | Bag |
| 触头类型 | Female Socket | 外壳颜色 | Natural |
| 安装类型 | Straight | 连接器类型 | Receptacle |
| 紧固类型 | Latch Lock | 排数 | 1 |
| 壳体材料 | Nylon 6/6 | 总长度 | 18 mm |
| 触点数 | 4 | 接触件端接 | Crimp |
| 位数 | 4 | ||
产品信息
| 备注 | Contacts Not Provided | 类型 | Housing |
| 连接器性别 | F | ||
环境参数
| 工作温度 | -40C to 105C | ||
文档与媒体
相关型号
0039302045
molex
Conn Wire to Board HDR 4 POS 4.2mm Solder ST Thru-Hole Tray Conn Power HDR 4 POS 4.2mm Solder ST Thru-Hole 4 Terminal 1 Port Tray CONN HEADER 4POS 4.2MM VERT TIN
0039303045
molex
Conn Wire to Board HDR 4 POS 4.2mm Solder RA Thru-Hole Bag CONN HEADER 4POS 4.2MM R/A TIN PLUG & SOCKET CONN, HEADER, 4POS, 4.2MM
0039301049
molex
Conn Wire to Board HDR 4 POS 4.2mm Solder ST Thru-Hole Tray Conn Power HDR 4 POS 4.2mm Solder ST Thru-Hole 4 Terminal 1 Port Tray CONN HEADER 4POS SNGL VERT TIN
0039000213
molex
Contact SKT Crimp ST Cable Mount Reel CONN TERM FEMALE 18-24AWG TIN
0039000180
molex
Contact SKT Crimp ST Cable Mount Loose Piece MINI FIT JR. TERM. BL/PT/FORM
0039303047
molex
Conn Wire to Board HDR 4 POS 4.2mm Solder RA Thru-Hole Bag Conn Power HDR 4 POS 4.2mm Solder RA Thru-Hole 4 Terminal 1 Port Bag CONN HEADER 4POS 4.2MM R/A GOLD
71233-0005
Molex
Headers & Wire Housings Obsolete CONN HEADER 4POS .165 RT ANG TIN
71233-0105
Molex
Headers & Wire Housings Obsolete CONN HEADER 4POS .165 R/A GOLD
0039302047
Molex
Conn Power HDR 4 POS 4.2mm Solder ST Thru-Hole 4 Terminal 1 Port Tray CONN HEADER 4POS 4.2MM VERT GOLD
0039000217
Molex
Contact SKT Crimp ST Cable Mount Reel CONN TERM FEMALE 16AWG TIN
0039303046
Molex
Conn Power HDR 4 POS 4.2mm Solder RA Thru-Hole 4 Terminal 1 Port Bag CONN HEADER 4POS 4.2MM R/A TIN
0039000155
Molex
Contact SKT Crimp ST Cable Mount
0039014047
Molex
Conn Housing M 4 POS 4.2mm Crimp ST Cable Mount Bag CONN PLUG 4POS VERT SINGLE
0039302046
Molex
Conn Power HDR 4 POS 4.2mm Solder ST Thru-Hole 4 Terminal 1 Port Tray CONN HEADER 4POS SNGL VERT TIN

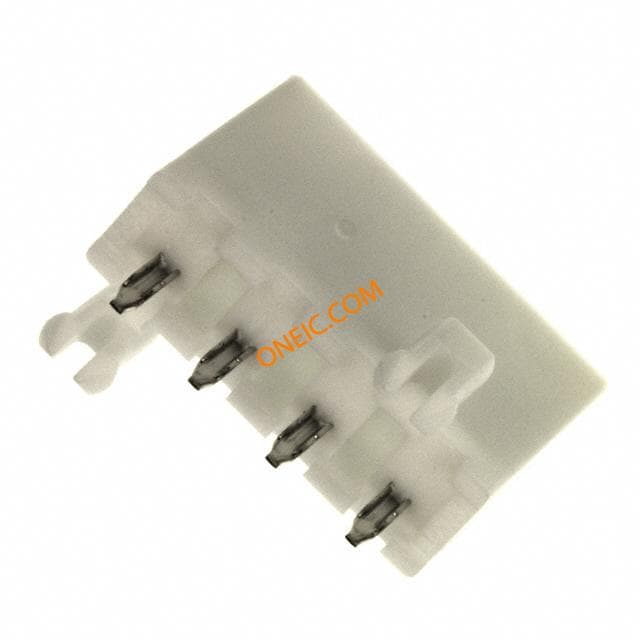

0039302040
