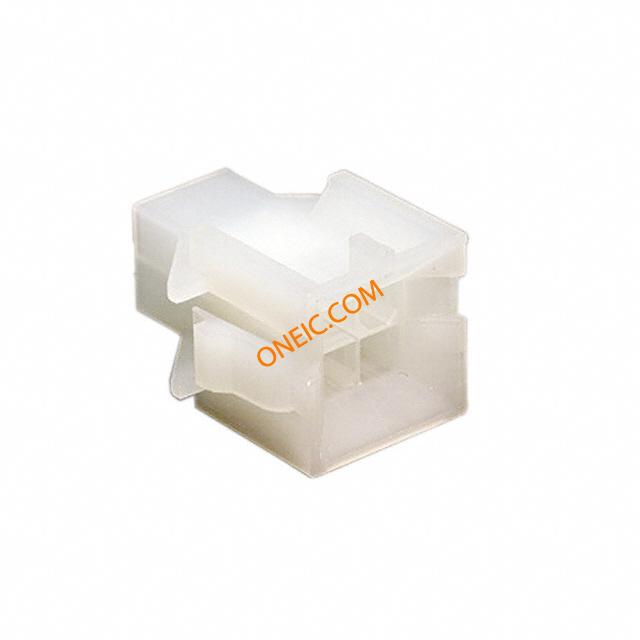

15-06-0045
| 制造商 | Molex, LLC |
| 描述 | CONN PLUG 4POS W/PANEL MNT EARS Plug Housing 4.20mm BMI UL94V-D/R,2,4w Headers & Wire Housings PLUG DUAL ROW 4POS w/panel mount ears Conn Housing M 4 POS 4.2mm Crimp ST Panel Mount Bag PLUG & SOCKET CONNECTOR, PLUG 4POS 4.2MM MINIFIT BMI PLUG PANMNT V-2 Molex MINI-FIT BMI 系列 2 行 4.2mm 节距 4 路 直 公 面板安装 压接连接器外壳 |
| 分类 |
商业参数
| 商标名 | Mini-Fit BMI | 零件号别名 | 0015060045 42475-0411 |
| 产品类别 | Headers & Wire Housings | 标准包装数量 | 10 |
| 工厂包装数量 | 2000 | ||
合规参数
| RoHS | Compliant | 海关税号 | 85369010 |
电气参数
| 最大额定电流 | 11 A, 8 A | 连接器类型 - 电压输入 | Male |
机械参数
| 颜色 | Natural | 深度 | 25.6mm |
| 间距 | 0.165" (4.20mm) | 宽度 | 16.8mm |
| 长度 | 15.8mm | 重量 | 0.003 |
| 包装方式 | Bulk | 排间距 | 0.165" (4.20mm) |
| 触头类型 | Male Pin | 基体材料 | :PA Polyamide (Nylon) 6/6 |
| 安装类型 | Panel Mount, Snap-In | 行程角度 | Straight |
| 连接器类型 | Plug | 排数 | 2 |
| 壳体材料 | Nylon | 触点数 | 4 |
| 接触件端接 | Crimp | 位数 | 4 |
产品信息
| 备注 | Contacts Not Provided | 类型 | Plug Housing |
| 连接器性别 | Male | 系列 | 42475 |
| CAD图纸 | 3D CAD Model | 制造商全称 | Mini-Fit BMI |
| 产品子类型 | Wire Housings | 电路数 | 4 |
| 应用细节 | Power, Wire-to-Wire, Wire-to-Board | 适用产品/相关产品 | Mini-Fit BMI Plug |
