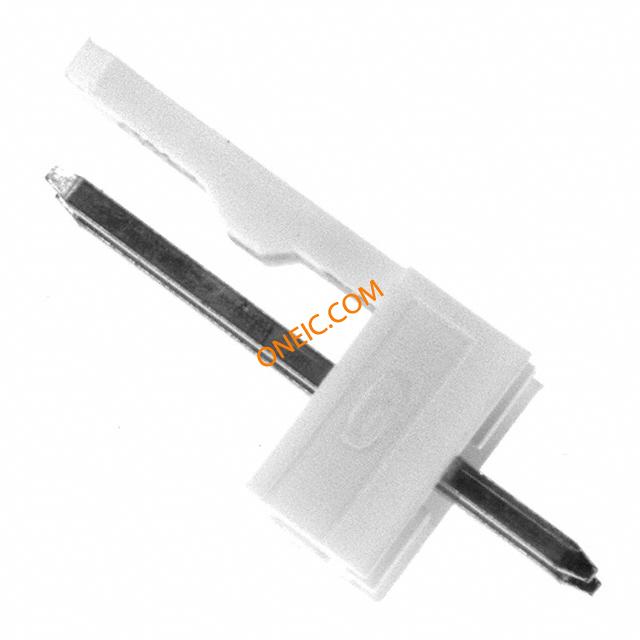

0022272021
| 制造商 | Molex, LLC |
| 描述 | Conn Wire to Board HDR 2 POS 2.54mm Solder ST Thru-Hole Bag CONN HEADER 2POS .100 VERT TIN |
| 分类 |
商业参数
| 交货时间 | 36 Days | 子类别 | Connector Headers and PCB Receptacles |
| 标准包装数量 | Bulk | ||
合规参数
| RoHS | Lead free / RoHS Compliant | ||
机械参数
| 颜色 | Natural | 间距 | 2.54 mm |
| 包装方式 | Bag | 端接方式 | Solder |
| 触头类型 | Male Pin | 安装类型 | Through Hole |
| 连接器类型 | Header, Unshrouded | 接触镀层 | Tin Over Copper |
| 紧固类型 | Friction Lock | 排数 | 1 |
| 触点数 | 2 | 位数 | 2 |
| 接触长度 - 配合 | 0.295" (7.49mm) | 接触镀层厚度 | 100µin (2.54µm) |
产品信息
| 类型 | Wire to Board | 连接器性别 | HDR |
| 行业别名 | 22-27-2021, 22272021 | 加载位置数 | All |
