点击放大查看

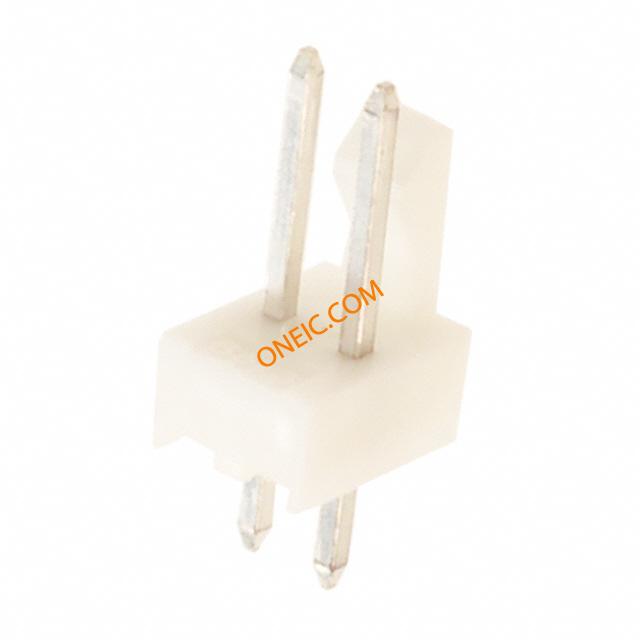

0022232021

制造商	Molex, LLC
描述	Conn Wire to Board HDR 2 POS 2.54mm Solder ST Thru-Hole Bulk Conn Wire to Board HDR 2 POS 2.54mm Solder ST Thru-Hole Bag CONN HEADER 2POS .100 VERT TIN
分类	连接器解决方案板对板连接器板对板连接器

对参数有疑问？问 AI 助手

商业参数

标准包装数量

Bulk

合规参数

RoHS

Lead free / RoHS Compliant

欧盟RoHS

Compliant

电气参数

接触电阻	10 mohm	最大额定电流	4/Contact A
最小输入电压	250V	最小供电电压	250V

机械参数

颜色	White	深度	6.35 mm
间距	2.54 mm	高度	10.67 mm
包装方式	Bag	端接方式	Solder
触点形式	Male Pin	触头类型	Male Pin
外壳颜色	White	安装类型	Through Hole
连接器类型	Header, Unshrouded	接触镀层	Tin Over Copper
紧固类型	Friction Lock	安装样式	Through Hole
排数	1	触头材料	Brass
壳体材料	Nylon	总长度	5.08 mm
板面高度	0.295" (7.49mm)	触点数	2
位数	2	接触长度 - 配合	0.295" (7.49mm)
接触镀层厚度	100µin (2.54µm)	每排/每行位置数	All

产品信息

类型	Wire to Board	连接器性别	HDR
系列	KK® 6373	输出配置	Through Hole
加载位置数	All

环境参数

工作温度

0C to 75C

文档与媒体

PDF 文档

0022232021_PCB_HEADERS.pdf
