点击放大查看

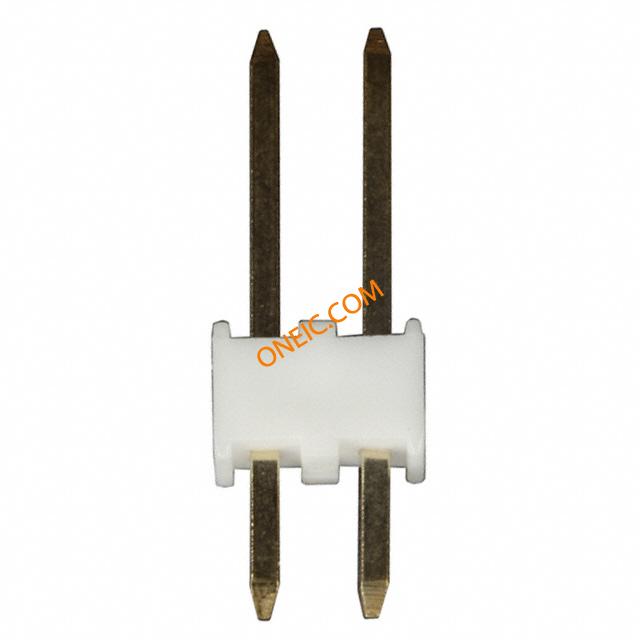

0022102021

制造商	Molex, LLC
描述	Conn Unshrouded Header HDR 2 POS 2.54mm Solder ST Thru-Hole Bulk Conn Unshrouded Header HDR 2 POS 2.54mm Solder ST Thru-Hole Bag CONN HEADER 2POS .100 VERT GOLD
分类	连接器解决方案板对板连接器板对板连接器

商业参数

交货时间	36 Days	子类别	Connector Headers and PCB Receptacles
标准包装数量	Bulk

合规参数

RoHS

Lead free / RoHS Compliant

欧盟RoHS

Compliant

电气参数

接触电阻	10 mohm	最大额定电流	4/Contact A
最小输入电压	250V	最小供电电压	250V

机械参数

颜色	White	深度	2.34 mm
间距	2.54 mm	高度	10.79 mm
包装方式	Bag	端接方式	Solder
触头类型	Male Pin	外壳颜色	White
安装类型	Through Hole	连接器类型	Header, Unshrouded
接触镀层	Gold Over Nickel	安装样式	Through Hole
排数	1	触头材料	Brass
壳体材料	Nylon	总长度	4.83 mm
触点数	2	位数	2
接触长度 - 配合	0.295" (7.49mm)	接触镀层厚度	20µin (0.51µm)

产品信息

类型	Unshrouded Header	连接器性别	HDR
行业别名	22-10-2021, 22102021	加载位置数	All

环境参数

工作温度

0C to 75C

文档与媒体

PDF 文档

相关型号

0022012027

molex

Conn Housing RCP 2 POS 2.54mm Crimp ST Cable Mount Bag CONN HOUSING 2POS .100 W/RAMP Conn Housing F 2 POS 2.54mm Crimp ST Cable Mount Bag

¥0.2966

详情

0022013027

molex

Conn Housing RCP 2 POS 2.54mm Crimp ST Cable Mount Bag Conn Housing F 2 POS 2.54mm Crimp ST Cable Mount Bag CONN HOUS 2POS .100 W/RAMP/RIB

¥0.0857

详情

0010112023

molex

Conn Housing RCP 2 POS 2.54mm Crimp ST Bag CONN HOUSING 2POS .100 HI PRESS

¥0.5018

详情

0022012021

molex

Conn Housing F 2 POS 2.54mm Crimp ST Cable Mount Bag CONN HOUSING 2POS .100 W/O RAMP Conn Housing RCP 2 POS 2.54mm ST Bag

¥0.3370

详情

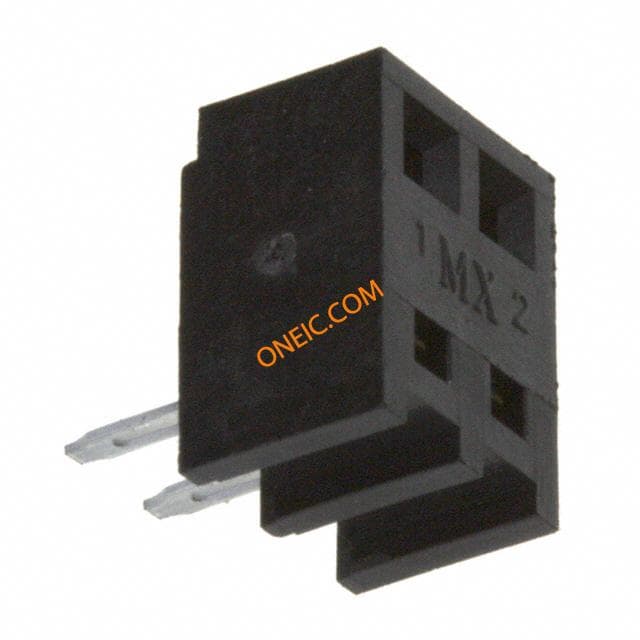

44812-0020

molex

Conn Socket Strip RCP 2 POS 2.54mm Solder ST Thru-Hole Tray CONN RECPT 2POS .100" 15GOLD PCB Headers & Wire Housings 2.54 Recept. 2 CKT Top/bottom Gold

¥17.1460

详情

0022012025

Molex

Conn Housing F 2 POS 2.54mm Crimp ST Cable Mount Bag CONN HSNG 2POS .100 W/RAMP/RIB

¥0.9122

详情

0022152026

Molex

Conn Socket Strip RCP 2 POS 2.54mm Solder RA Thru-Hole Tray CONN RECEPT 2POS .100 R/A PCB

¥0.6242

详情

0022022025

Molex

Conn Socket Strip RCP 2 POS 2.54mm Solder ST Thru-Hole Tray CONN RECEPT 2POS .100 VERT PCB

¥0.6869

详情

22-17-3022

Molex Connector Corporation

CONN RECEPT 2POS .100 VERT PCB Headers & Wire Housings 2.54MM BOARD CONN Bottom Entry 2 CKT Conn Socket Strip RCP 2 POS 2.54mm Solder ST Thru-Hole Tray

¥0.8352

详情

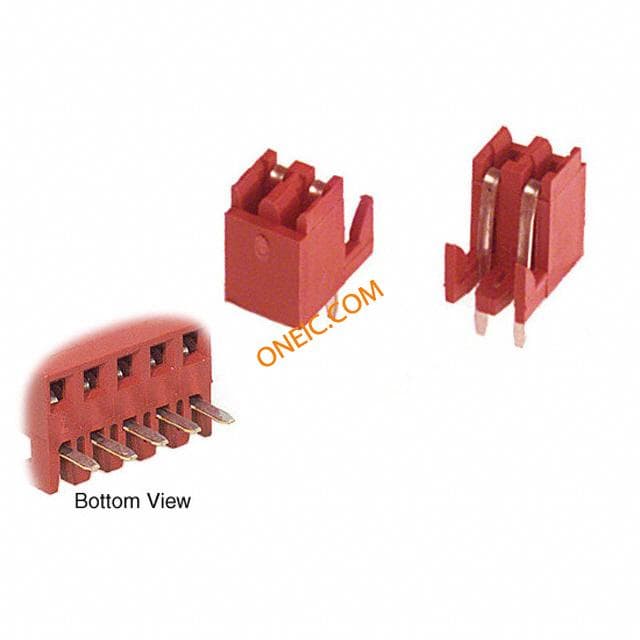

22-14-2024

Molex Connector Corporation

CONN RECEPT 2POS .100 VERT PCB Molex 2.54mm 2 Way 1 Row Straight PCB Socket Through Hole Socket Strip Headers & Wire Housings PCB RECPT 2P BOTTOM ENTRY Conn Socket Strip RCP 2 POS 2.54mm Solder ST Thru-Hole Tray Molex KK 254 系列 2路直 2.54mm节距通孔印刷电路板插座, 插座板

¥0.6336

详情

22-18-2021

Molex Connector Corporation

CONN RECEPT 2POS .100 VERT PCB Conn Socket Strip RCP 2 POS 2.54mm Solder ST Thru-Hole Tray

¥0.7272

详情

22-16-2020

Molex Connector Corporation

CONN RECEPT 2POS .100 R/A PCB Headers & Wire Housings 2.54MM BOARD CONN RA 2 CKT Gold Conn Socket Strip RCP 2 POS 2.54mm Solder RA Thru-Hole Tray

¥1.3680

详情

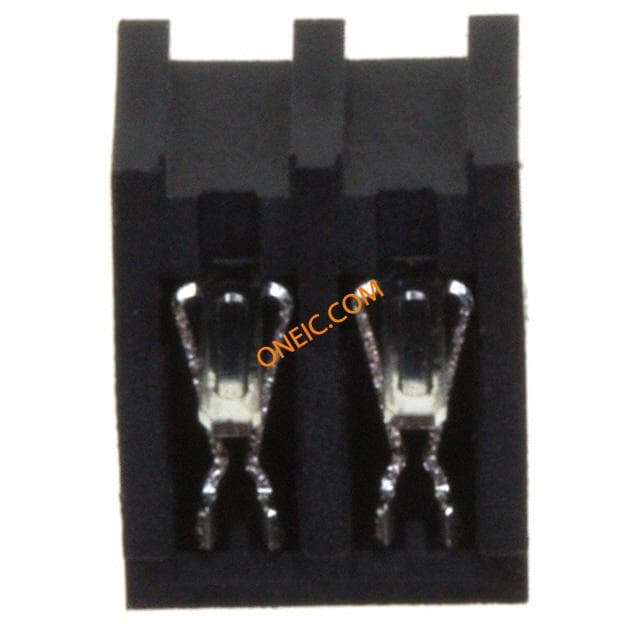

44812-0002
