点击放大查看

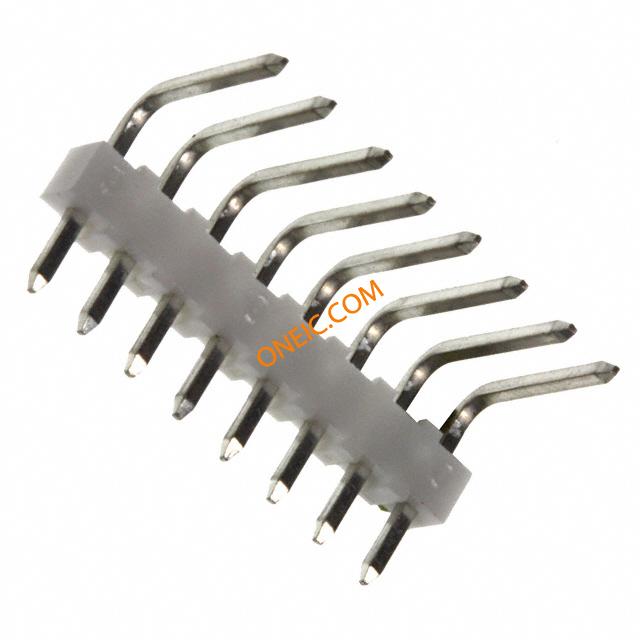

0022052081
| 制造商 | Molex, LLC |
| 描述 | Conn Unshrouded Header HDR 8 POS 2.54mm Solder RA Thru-Hole Bulk Conn Unshrouded Header HDR 8 POS 2.54mm Solder RA Thru-Hole Bag CONN HEADER 8POS .100 R/A TIN |
| 分类 |
商业参数
| 交货时间 | 36 Days | 子类别 | Connector Headers and PCB Receptacles |
| 标准包装数量 | Bulk | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
电气参数
| 接触电阻 | 10 mohm | 最大额定电流 | 4/Contact A |
| 最小输入电压 | 250V | 最小供电电压 | 250V |
机械参数
| 颜色 | White | 深度 | 9.89 mm |
| 间距 | 2.54 mm | 高度 | 6.3 mm |
| 包装方式 | Bag | 端接方式 | Solder |
| 触头类型 | Male Pin | 外壳颜色 | White |
| 安装类型 | Through Hole | 连接器类型 | Header, Unshrouded |
| 接触镀层 | Tin Over Copper | 安装样式 | Through Hole |
| 排数 | 1 | 触头材料 | Brass |
| 壳体材料 | Nylon | 总长度 | 20.07 mm |
| 触点数 | 8 | 位数 | 8 |
| 接触长度 - 配合 | 0.369" (9.37mm) | 接触镀层厚度 | 200µin (5.08µm) |
产品信息
| 类型 | Unshrouded Header | 连接器性别 | HDR |
| 行业别名 | 22-05-2081, 22052081 | 加载位置数 | All |
环境参数
| 工作温度 | 0C to 75C | ||
文档与媒体
相关型号
0022152086
molex
Conn Socket Strip RCP 8 POS 2.54mm Solder RA Thru-Hole Tray CONN RECEPT 8POS .100 R/A PCB
0022142084
molex
Conn Socket Strip RCP 8 POS 2.54mm Solder ST Thru-Hole Tray CONN RECEPT 8POS .100 VERT PCB
0022012085
molex
Conn Housing RCP 8 POS 2.54mm Crimp ST Cable Mount Bag CONN HSNG 8POS .100 W/RAMP/RIB
76650-0009
molex
COMPONENT KITS, WIRE TO BOARD KIT 10,2,4,6,8POS 2.5A THROUGH HOLE MOUNTING RECEPTACLE, RIGHT ANGLE HEADER, VERTICAL HEADER 2.54MM PITCH 250V 22-30 WIRE SIZE KIT CONN KK SERIES ASSORTED Headers & Wire Housings .100KK CONNECTOR KIT PREM CRIMPTOOL 184PC COMPONENT KITS, WIRE TO BOARD KIT 10,2,4,6,8POS 2.5A THROUGH HOLE MOUNTING RECEPTACLE, RIGHT ANGLE HEADER, VERTICAL HEADER 2.54MM PITCH 250V ... Kit Description:Vertical and Right Angle Header and Receptacle, with Extraction and Premium Crimp ToolKit Category:Wire to BoardSolution:Off the BoardPackaging:Clamshell: 12.75" by 6"Num. Pieces:184 kk-100 connector kit KK .100 Header & Housing kit with extraction tool and premium crimp tool
0022013087
Molex
Conn Housing F 8 POS 2.54mm Crimp ST Cable Mount Bag CONN HOUS 8POS .100 W/RAMP/RIB
14-56-2081
molex
Conn IDC Connector F 8 POS 2.54mm IDT ST Cable Mount Tube CONN IDC 8POS .100 GOLD 24AWG
0022182081
Molex
Conn Socket Strip RCP 8 POS 2.54mm Solder ST Thru-Hole Tray CONN RECEPT 8POS .100 VERT PCB
22-01-2081
molex
Conn Housing F 8 POS 2.54mm Crimp ST Cable Mount Bag CONN HOUSING 8POS .100 W/O RAMP 2.54mm,housing,KK 100,2695,w/o ramp,8w Headers & Wire Housings 8 CKT TERM HOUSING CONNECTOR, HOUSING, RECEPTACLE, 8POS, 2.54MM .100 TERMINAL HOUSING; W/O LOCK RAMP; 8 CIRCUITS Molex KK 254 系列 1 行 2.54mm 节距 8 路 直 母 电缆安装 压接连接器外壳

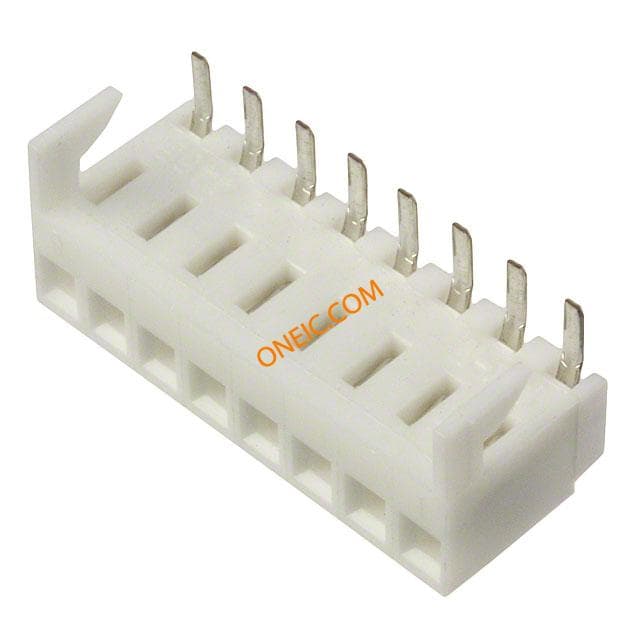

0038001338
Molex
Conn Socket Strip RCP 8 POS 2.54mm Solder RA Thru-Hole Tray RCPT .100 RT ANG 8CKT TIN
0050579008
Molex
Conn Housing F 8 POS 2.54mm Crimp ST Cable Mount Bag CONN HOUSING 8POS .100 SINGLE
0022022085
Molex
Conn Socket Strip RCP 8 POS 2.54mm Solder ST Thru-Hole Tray CONN RECEPT 8POS .100 VERT PCB
22-17-3082
Molex Connector Corporation
CONN RECEPT 8POS .100 VERT PCB Molex 2.54mm 8 Way 1 Row Straight PCB Socket Through Hole Socket Strip Headers & Wire Housings PCB BOTTOM ENTRY 8P Conn Socket Strip RCP 8 POS 2.54mm Solder ST Thru-Hole Tray Molex KK 254 系列 8路 直 2.54mm节距 通孔 印刷电路板插座, 插座板
10-11-2083
Molex Connector Corporation
CONN HOUSING 8POS .100 HI PRESS 2.54mm,KK100,housing,f/ramp,nylon,8way Headers & Wire Housings 8CKT HOUSING 2.54mm Pitch KK® Crimp Terminal Housing, High Pressure, 8 Circuits HOUSING FEMALE, 8WAY .100 KK Crimp Housing 8 Circuit Molex KK 254 系列 1 行 2.54mm 节距 8 路 直 母 压接连接器外壳
22-01-2087
Molex Connector Corporation
CONN HOUSING 8POS .100 W/RAMP 2.54mm,housing,KK 100,2695,lock ramp,8w Headers & Wire Housings HSG 8P WITH LKG RAMP Conn Housing F 8 POS 2.54mm Crimp ST Cable Mount Bag .100 TERMINAL HOUSING; W/LOCK RAMP; 8 CIRCUITS Molex KK 254 系列 1 行 2.54mm 节距 8 路 直 母 电缆安装 压接连接器外壳
50-57-9008
Molex Connector Corporation
CONN HOUSING 8POS .100 SINGLE 2.54mm,housing,Cgrid,SL,versionA,1row,8w Headers & Wire Housings HSG 8P SINGLE ROW NON-POLARIZED Conn Housing F 8 POS 2.54mm Crimp ST Cable Mount Bag HOUSING, 2.54MM, 8WAY Conn.; Rect.; Housing; Crimp; 2.54mm Pitch; 8 Cir.; SL; W-to-B; Sngl; Non-Pol. Molex SL 系列 1 行 2.54mm 节距 8 路 直 母 压接连接器外壳
14-60-0081
Molex Connector Corporation
CONN IDC 8POS .100 TIN 24AWG 2.54mm Pitch SL™ Insulation Displacement Connector Assembly, Female, Single Row, Version A, Non-polarized, Wire Size 24 AWG, 3.81µm Tin/Lead (SnPb), ... 2.54mm Pitch SL™ Insulation Displacement Connector Assembly, Female, Single Row, Version A, Non-polarized, Wire Size 24 AWG, 3.81µm Tin/Lead (SnPb), 8 Circuits

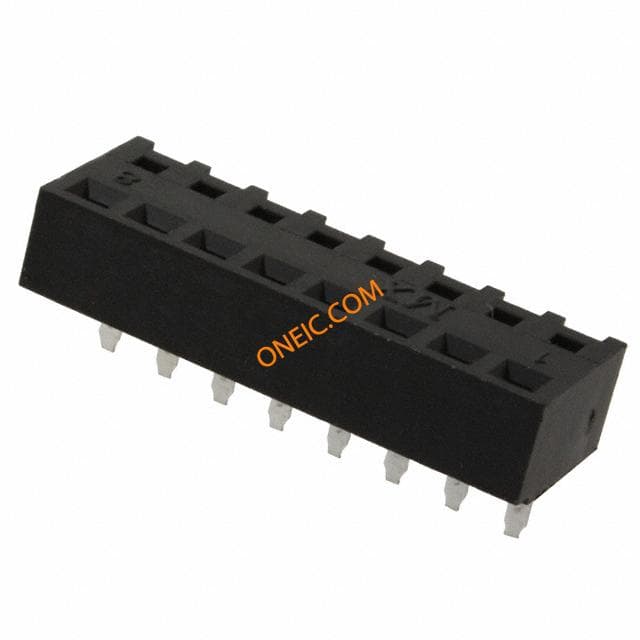

44812-0026
Molex Connector Corporation
CONN RECPT 8POS .100" 15GOLD PCB Conn Socket Strip RCP 8 POS 2.54mm Solder ST Thru-Hole Tray
22-16-2080
Molex Connector Corporation
CONN RECEPT 8POS .100 R/A PCB Headers & Wire Housings RA PCB CONN 8P Conn Socket Strip RCP 8 POS 2.54mm Solder RA Thru-Hole Tray KK100PCBASSYRTAN08CKTGOLD

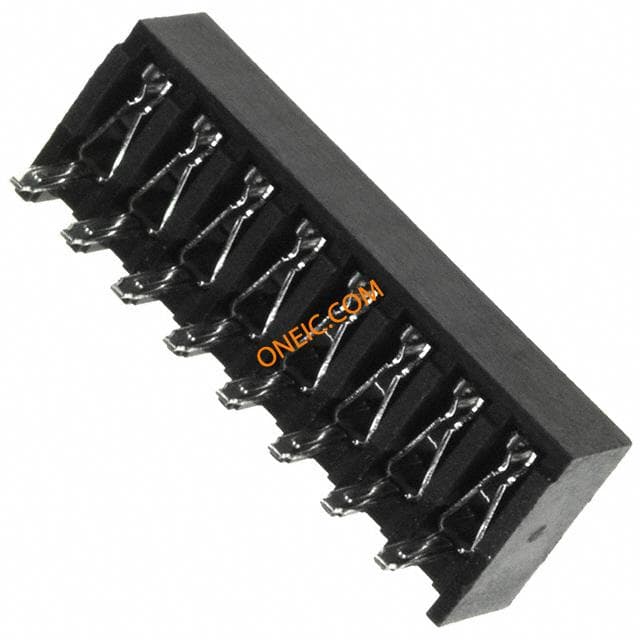

0448120008
