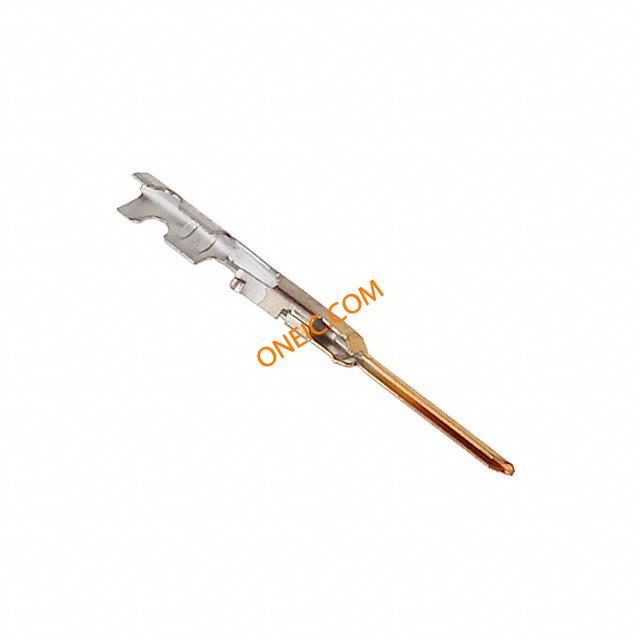

点击放大查看
0016020115
| 制造商 | Molex, LLC |
| 描述 | Contact PIN Crimp ST Cable Mount Bag CONN TERM MALE 22-24AWG GOLD CONTACT, MALE, 24-22AWG, CRIMP |
| 分类 |
商业参数
| 交货时间 | 36 Days | 子类别 | Connector Contact |
| 标准包装数量 | Bulk | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
| 海关税号 | 85369010 | ||
电气参数
| 漏极类型 | 22-24 | 接触电阻 | 15 mohm |
| 连接器阻抗 | Crimp | 最大额定电流 | 3 A |
| 最小供电电压 | 250V | ||
机械参数
| 深度 | 2.03 mm | 间距 | Not Required mm |
| 高度 | 2.18 mm | 长度 | 21.39 |
| 重量 | 0.00001 | 包装方式 | Bag |
| 屏蔽 | No | 启动方式 | Signal |
| 导线线规 | 22-24 AWG | 方向 | Straight |
| 端接方式 | Crimp | 触头类型 | Signal |
| 外壳颜色 | Not Required | 安装类型 | Cable Mount |
| 插针或插孔 | Pin | 连接器类型 | Connector Headers and PCB Receptacles |
| 接触镀层 | Gold Over Nickel | 安装样式 | Cable |
| 触头材料 | Phosphor Bronze | 壳体材料 | Not Required |
| 总长度 | 21.39 mm | 第一触头极性 | :Pin |
| 触点数 | Not Required | 接触件端接 | Crimp |
| 接触镀层厚度 | 15µin (0.38µm) | 线规或范围 - AWG | :24AWG |
产品信息
| 类型 | Contact | 连接器性别 | PIN |
| 系列 | :SL | 行业别名 | 16-02-0115, 16020115 |
| 适用产品/相关产品 | 0016020081 | ||
环境参数
| 工作温度 | -40C to 105C | ||
