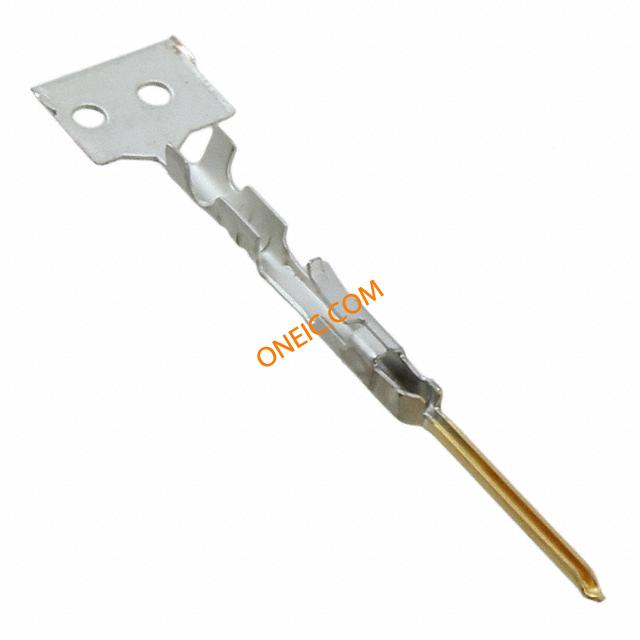

点击放大查看
0016020110
| 制造商 | Molex, LLC |
| 描述 | Contact PIN Crimp ST Cable Mount Bag CONN PIN 24-30AWG CRIMP 30GOLD |
| 分类 |
商业参数
| 标准包装数量 | Bulk | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
电气参数
| 接触电阻 | 15 | 最大额定电流 | 3 |
机械参数
| 深度 | 2.29 | 高度 | 2.03 |
| 包装方式 | Bag | 导线线规 | 24-30 AWG |
| 屏蔽类型 | No | 端接方式 | Crimp |
| 触头类型 | Signal | 安装类型 | Cable Mount |
| 插针或插孔 | Pin | 连接器类型 | Connector Headers and PCB Receptacles |
| 接触镀层 | Gold Over Nickel | 触头材料 | Phosphor Bronze |
| 总长度 | 21.39 | 接触件端接 | Crimp |
| 接触镀层厚度 | 30µin (0.76µm) | ||
产品信息
| 连接器性别 | PIN | ||
环境参数
| 工作温度 | 105 | ||
文档与媒体
