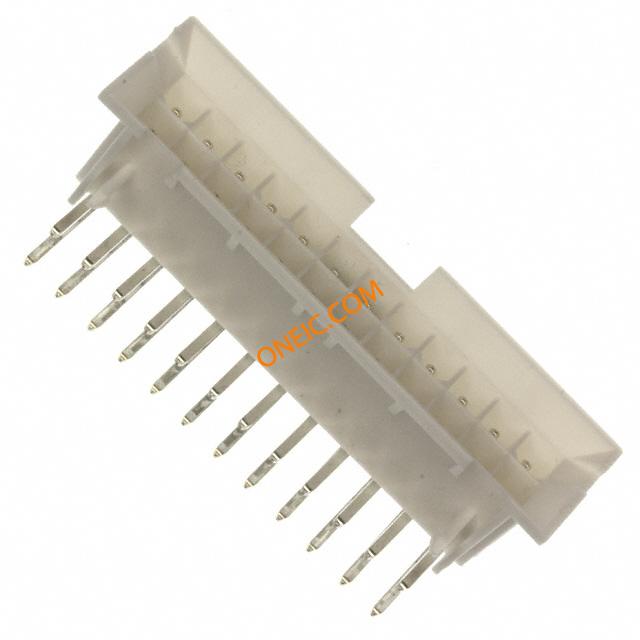

点击放大查看
0015246243
| 制造商 | Molex, LLC |
| 描述 | Conn Wire to Board HDR 24 POS 4.2mm Solder RA Thru-Hole Tray CONN HEADER DL 24POS R/A TIN |
| 分类 |
商业参数
| 标准包装数量 | 200 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
电气参数
| 最大额定电流 | 13/Contact A | 最小输入电压 | 600V |
| 最小供电电压 | 600V | ||
机械参数
| 颜色 | Natural | 深度 | 20.7 mm |
| 间距 | 0.165" (4.20mm) | 高度 | 15 mm |
| 包装方式 | Tray | 排间距 | 0.165" (4.20mm) |
| 端接方式 | Solder | 触头类型 | Male Pin |
| 外壳颜色 | Natural | 安装类型 | Through Hole |
| 连接器类型 | Header, Shrouded | 接触镀层 | Gold |
| 安装样式 | Through Hole | 排数 | 2 |
| 触头材料 | Brass | 壳体材料 | Nylon |
| 总长度 | 57 mm | 触点数 | 24 |
| 位数 | 24 | 接触镀层厚度 | 100µin (2.54µm) |
产品信息
| 类型 | Wire to Board | 连接器性别 | HDR |
| 产品特性 | Board Lock | 加载位置数 | All |
环境参数
| 工作温度 | -40C to 105C | ||
