点击放大查看

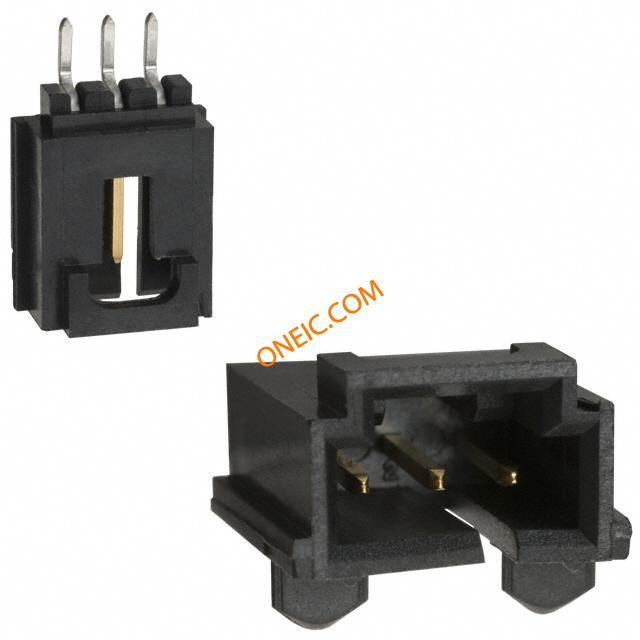

0015912035
| 制造商 | Molex, LLC |
| 描述 | CONN HEADER 3POS .100 R/A SMD |
商业参数
| 标准包装数量 | 1,380 | ||
机械参数
| 颜色 | Black | 间距 | 0.100" (2.54mm) |
| 包装方式 | Tube | 端接方式 | Solder |
| 触头类型 | Male Pin | 安装类型 | Surface Mount, Right Angle |
| 连接器类型 | Header, Shrouded | 接触镀层 | Gold |
| 排数 | 1 | 位数 | 3 |
| 接触长度 - 配合 | 0.240" (6.10mm) | 接触镀层厚度 | 15µin (0.38µm) |
产品信息
| 产品特性 | Board Guide | 加载位置数 | All |
