点击放大查看

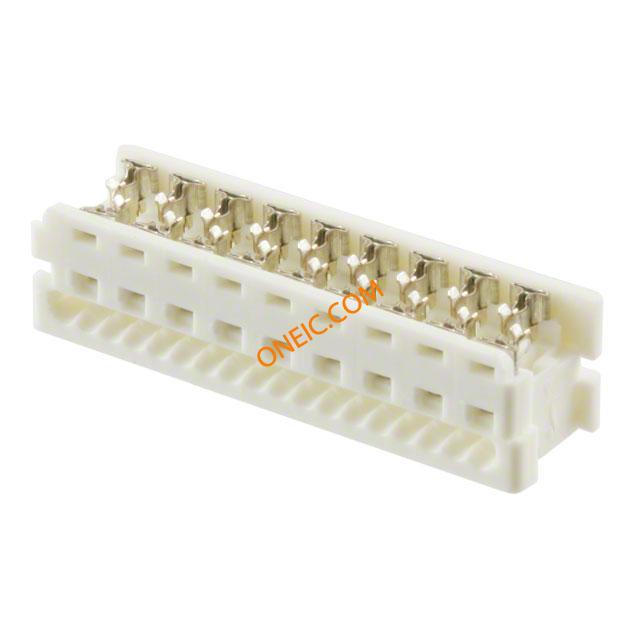

90327-0318
| 制造商 | Molex, LLC |
| 描述 | CONN RECEPT IDT 18POS 1.27MM TIN 18 way IDT housing,1.27mm pitch low prof Headers & Wire Housings PICOFLEX 18P HSG LOPRO IDT SN Conn IDC Connector RCP 18 POS 2.54mm IDT RA Cable Mount Bag CONNECTOR, PICOFLEX, 18WAY Female connector 18P, 90327-0318, Molex Molex PICOFLEX 系列 2行 18路 1.27mm节距 直角 电缆安装 母 IDC 连接器 |
| 分类 |
商业参数
| 商标名 | Picoflex | 零件号别名 | 0903270318 |
| 产品类别 | Headers & Wire Housings | 标准包装数量 | 1 |
| 工厂包装数量 | 2000 | ||
合规参数
| RoHS | Compliant | 海关税号 | 85369010 |
| 材料阻燃等级 | :UL94V-0 | ||
电气参数
| 量程（°/s） | :MOLEX - Picoflex 90327 Series | 额定电压 | 250 V |
| 接触电阻 | :10mohm | 击穿电压 | :750V |
| 最大额定电流 | 1.2A | 触点额定电流 | :1.2A |
机械参数
| 颜色 | White | 间距 | 0.100" (2.54mm) |
| 宽度 | :21.59mm | 重量 | 0.002 |
| 材料（通用） | :Polyester | 包装方式 | Bulk |
| 导线类型 | Ribbon Cable | 导线线规 | 26-28 AWG |
| 端接方式 | IDT | 触头类型 | Female Socket |
| 安装类型 | Free Hanging (In-Line) | 连接器类型 | Receptacle |
| 接触镀层 | Tin | 排数 | 2 |
| 触头材料 | Phosphor Bronze | 壳体材料 | PET |
| 电缆端接方式 | IDC | 端接样式 | IDC |
| 连接器颜色 | :White | 触点数 | 18 |
| 接触件端接 | :IDC / IDT | 位数 | 18 |
| 接触镀层厚度 | 78.7µin (2.00µm) | 线规或范围 - AWG | :28AWG |
| 第一连接器安装类型 | :Cable | ||
产品信息
| 连接器性别 | Female | 系列 | 90327 |
| 产品特性 | Feed Through | CAD图纸 | 3D CAD Model |
| 产品子类型 | Receptacles / Sockets - Housings | ||
环境参数
| 工作温度 | +105°C | ||
文档与媒体
相关型号
0691271001
molex
Connector Accessories Bench Press Tool Semi-Automatic Bench Press PB14 For 90327 Connectors, 4 to 26 Circuit PB14 PNEUMATIC TERMINATOR
0691271024
molex
Connector Accessories Semi Automatic Bench Press Tool with Auto De Reeling Semi-Automatic Bench Press PB14 With Auto De-Reeling For 90327 Connectors PB14 DETAPE-110 VOLTS

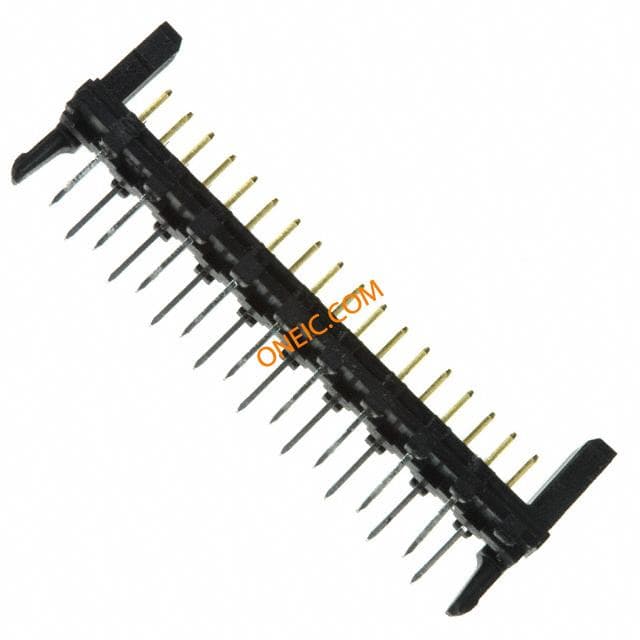

90325-7018
molex
Conn Ribbon Cable Connector HDR 18 POS 1.27mm Solder ST Thru-Hole Tube CONN HEADER 18PS 1.27MM GOLD T/H Headers & Wire Housings PICOFLEX 18P HDR AU R/A LP W/PCB PEGS
90800-0018
molex
Conn Ribbon Cable Connector PIN 18 POS 1.27mm Solder RA Thru-Hole Tube CONN HEADER 18POS 1.27MM RT ANG Headers & Wire Housings 1.27mm PF Hdr RA LoP LoPro Stag Sn 18Ckt

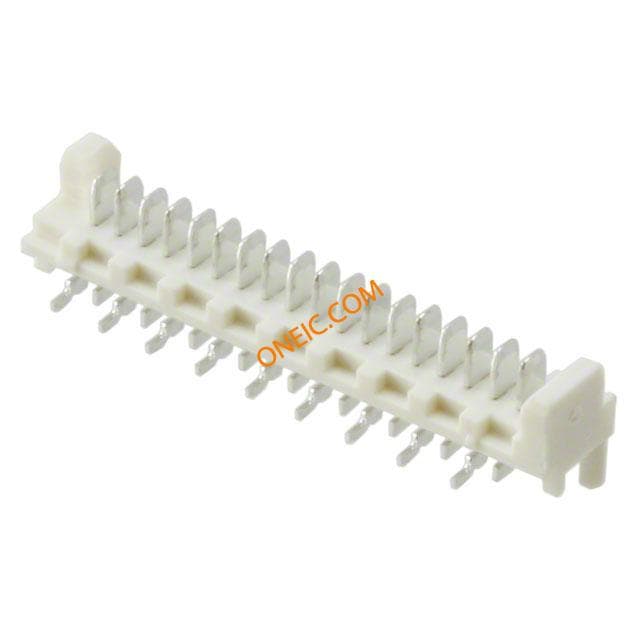

90814-0818
molex
Conn Ribbon Cable Connector HDR 18 POS 2.54mm Solder ST SMD Tube CONN HEADER 18POS 1.27MM SMD TIN Headers & Wire Housings 1.27MM 18P VERT HDR LO-PRO SMT,SN HEADER, PICOFLEX, SMT, 18WAY

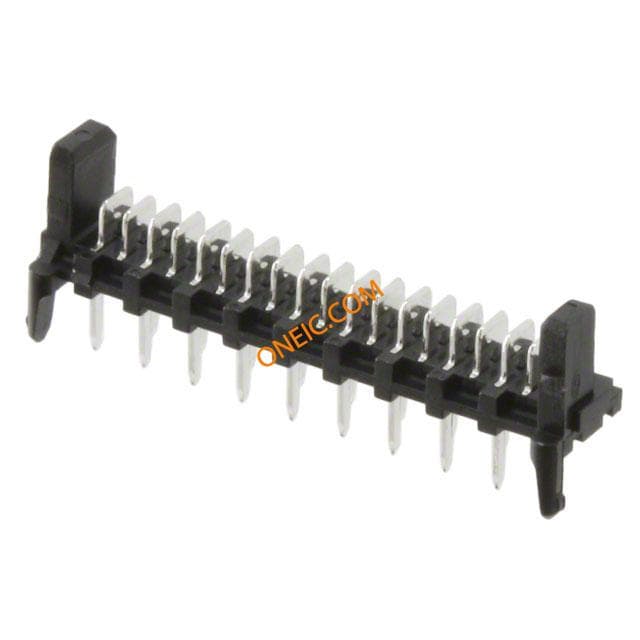

90325-0018
molex
Conn Ribbon Cable Connector HDR 18 POS 1.27mm Solder ST Thru-Hole Bag CONN HEADER 18POS 1.27MM TIN Header 1.27mm, RA, low pro,18w,pcb peg Headers & Wire Housings PICOFLEX 18P HDR LOPRO SN HEADER, PICOFLEX 18WAY Straight header 18P, 90325-0018, Molex Molex PICOFLEX 系列 18路 1.27mm节距 公 IDC 连接器 , 通孔
69008-1090
molex
Connector Accessories Picoflex Connector IDT Hand Tool Crimpers HAND CRIMP 04-26P PICOFLEX Hand tool-Picoflex PF-50 IDT receptacles HAND TOOL, IDT Handtool, 69008-1090, Molex Molex HANDTOOL 系列 IDT 压接工具 , 适用于28 → 26 AWG 线规格
62100-6000
molex
PICOFLEX EXTRACTION TOOL Hand Tools PICOFLEX EXTRACTION TOOL Punches & Dies PICOFLEX EXTRACTION TOOL TOOL, PICOFLEX, EXTRACTION Dismantle tool, 62100-6000, Molex
90325-3018
molex
Conn Ribbon Cable Connector HDR 18 POS 1.27mm Solder ST Thru-Hole Bag CONN HEADER 18POS 1.27MM GOLD Headers & Wire Housings PICOFLEX PF-50 HDR 18 CKT

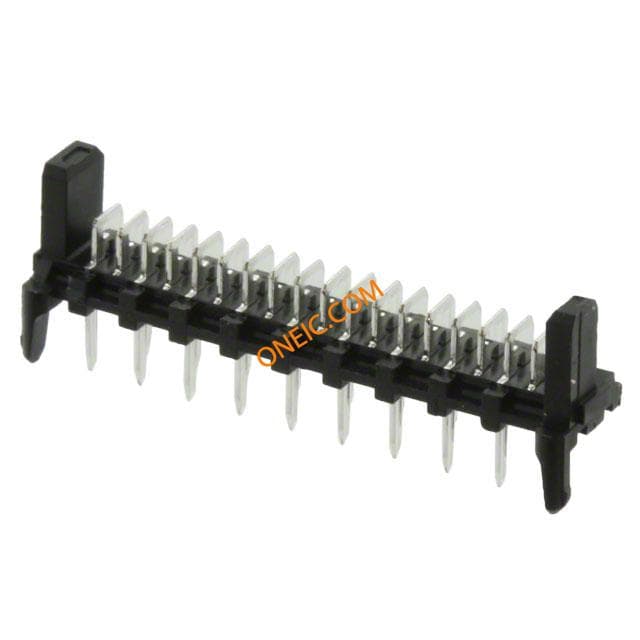

90325-9018
molex
Conn Ribbon Cable Connector HDR 18 POS 1.27mm Solder ST Thru-Hole Tube CONN HEADER 18POS 1.27MM TIN T/H Headers & Wire Housings PICOFLEX 18P HDR SN R/A LP W/PCB PEGS
0690081090
Molex
Handtool For 90327, 90584 and 91577 Picoflex Connectors, 4-26 Circuit TOOL HAND PICO FLEX Tool: for crimping; connectors; Application: MX-90327,MX-90584

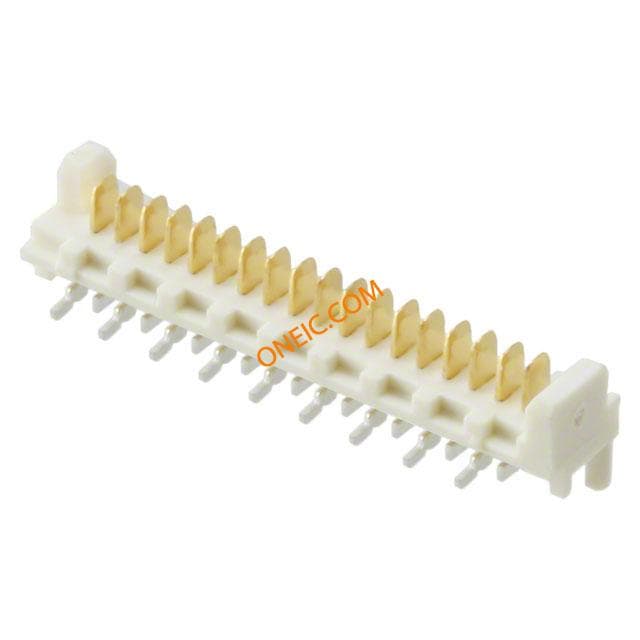

90814-3818
