点击放大查看

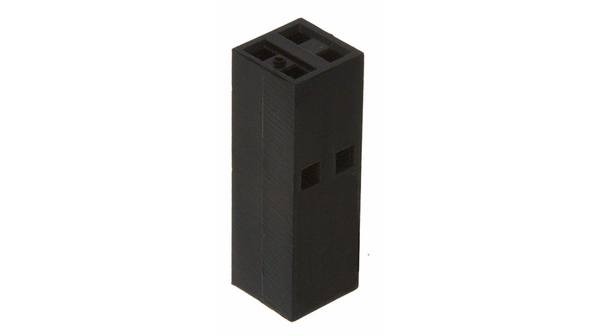

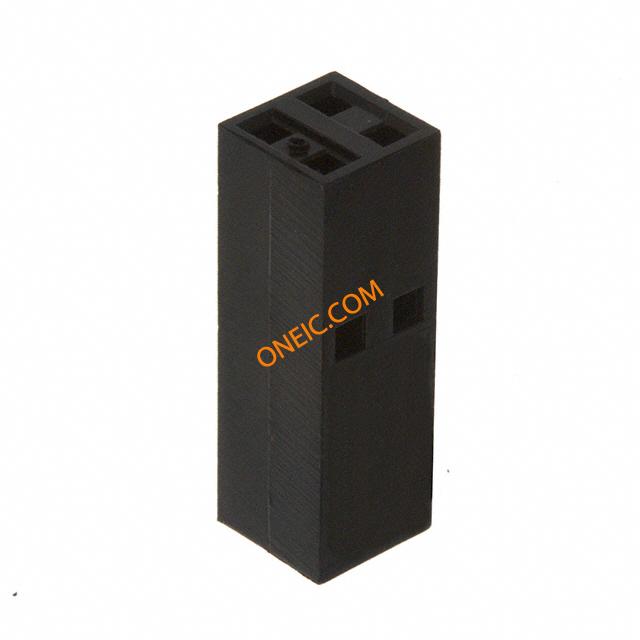

90143-0004
| 制造商 | Molex, LLC |
| 描述 | CONN HOUSING 4POS .100" DL CRIMP Headers & Wire Housings C-GRID III 4 CKT HOU Conn Housing F 4 POS 2.54mm Crimp ST Cable Mount Bag Crimp housing 2 x 2P, 90143-0004, Molex |
| 分类 |
商业参数
| 商标名 | C-GRID | 零件号别名 | 0901430004 |
| 产品类别 | Headers & Wire Housings | 标准包装数量 | 1 |
| 工厂包装数量 | 6000 | ||
合规参数
| RoHS | RoHS Compliant | ||
电气参数
| 极数 | 2 x 2 | 最大额定电流 | 3 A |
机械参数
| 颜色 | Black | 间距 | 0.100" (2.54mm) |
| 包装方式 | Bulk | 排间距 | 0.100" (2.54mm) |
| 触头类型 | Female Socket | 安装类型 | Free Hanging (In-Line) |
| 连接器类型 | Receptacle | 安装样式 | Wire |
| 排数 | 2 | 连接器样式 | Double row |
| 壳体材料 | Polyphenylene Oxide (PPO) | 端接样式 | Crimp |
| 第一触头极性 | Socket (Female) | 触点数 | 4 |
| 接触件端接 | Crimp | 位数 | 4 |
| 第一连接器极性 | Female | ||
产品信息
| 备注 | Contacts Not Provided | 设计类型 | Crimp connector housing, dual row |
| 系列 | 90143 | 产品子类型 | Receptacles / Sockets - Housings |
文档与媒体
相关型号

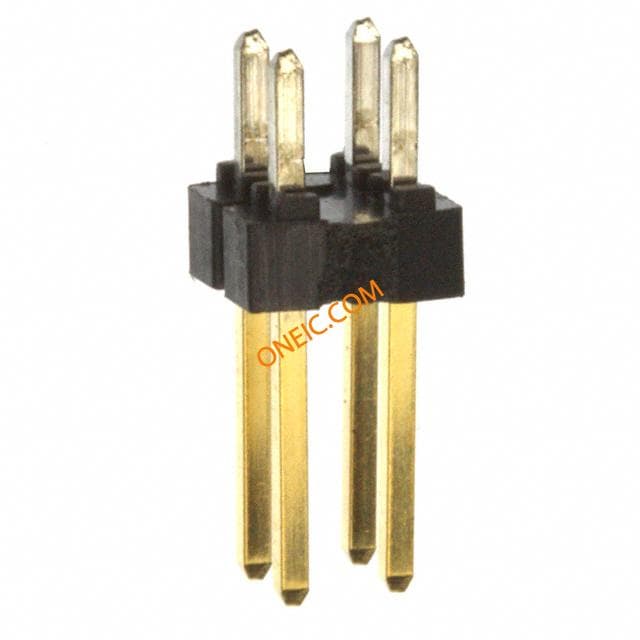

0901310762
molex
Conn Unshrouded Header HDR 4 POS 2.54mm Solder ST Thru-Hole Bag Conn Unshrouded Header HDR 4 POS 2.54mm Solder ST Thru-Hole Tray CONN HEADER 4POS .100" STR GOLD
0901192109
molex
Contact SKT Crimp ST Cable Mount Bag CONN SOCKET 22-24AWG .100" TIN Conn Contact F 1 POS Crimp ST Cable Mount Bag Contact; female; 22÷24AWG; C-Grid III; tinned; crimped; in bulk; 3A
0901190110
molex
Contact SKT Crimp ST Cable Mount Reel CONN TERM FEMALE 22-24AWG GOLD Contact; female; 22÷24AWG; C-Grid III; tinned; crimped; tape; 3A
0901190109
molex
Contact SKT Crimp ST Cable Mount T/R CONN TERM FEMALE 22-24AWG TIN Contact; female; 22÷24AWG; C-Grid III; tinned; crimped; tape; 3A
0901192122
molex
Contact SKT Crimp ST Cable Mount Loose Piece C-GRID TERM FEM CRP 26/28AWG
0901190122
molex
Contact SKT Crimp ST Cable Mount Reel C-GRID TERM FEM CRP 26/28AWG
0901192120
molex
Contact SKT Crimp ST Cable Mount Bag CONN SOCKET 26-28AWG .100" TIN

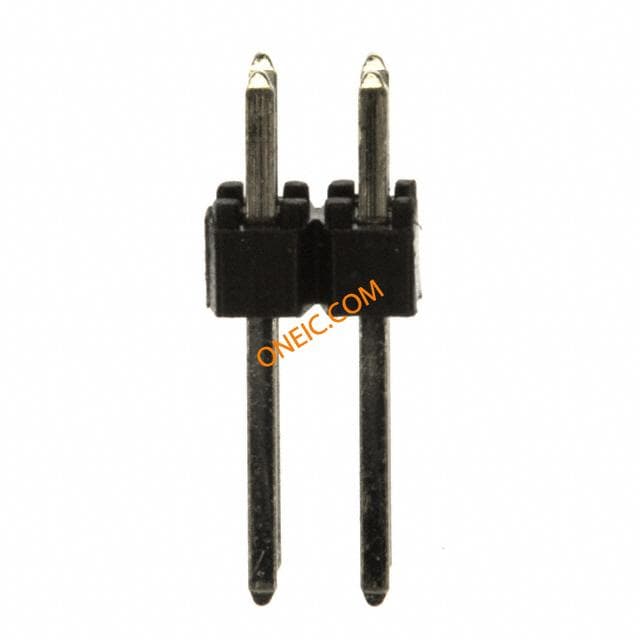

0901310122
molex
Conn Unshrouded Header HDR 4 POS 2.54mm Solder ST Thru-Hole Bag CONN HEADER 4POS .100" STR TIN

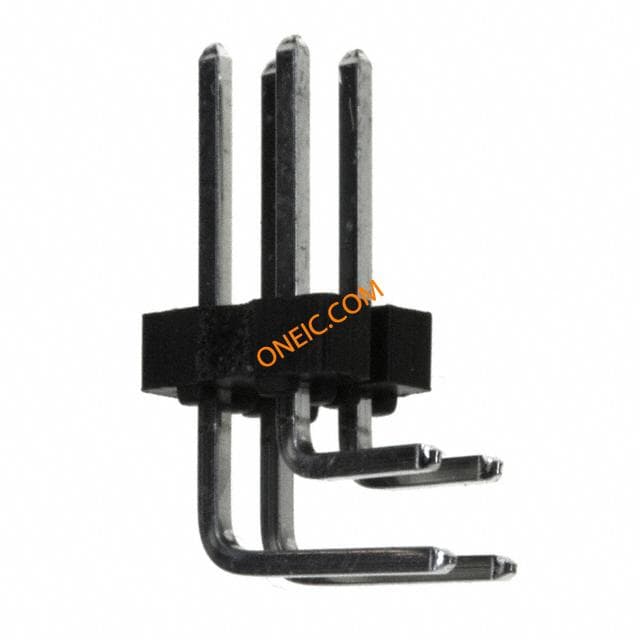

90122-0122
molex
Conn Unshrouded Header HDR 4 POS 2.54mm Solder RA Thru-Hole Bag CONN HEADER 4POS .100" R/A TIN Headers & Wire Housings 2.54MM CGRIDIII HDR 4P R/A DR TIN Conn Unshrouded Header HDR 4 POS 2.54mm Solder RA Thru-Hole Tray
90119-2111
Molex
Headers & Wire Housings FM C-GRID TERM 22/24AWG CONN TERM FEMALE 22-24AWG C-Grid III Terminal 22-24 AWG gold, bag Contact SKT Crimp ST Cable Mount Loose Piece TERMINAL, FEMALE, AWG22-24 C-GRID TERM FEM CRP LP AU-F 22/24AWG Contact; female; 22÷24AWG; C-Grid III; gold plated; crimped; 3A Molex C-GRID III 系列 母 压接接线端子, 压接, 镀金镀镍触点
0901192110
Molex
Contact SKT Crimp ST Cable Mount Bag CONN SOCKET 22-24AWG .100" GOLD Contact; female; 22÷24AWG; C-Grid III; gold plated; crimped; 3A
0901192121
Molex
Contact SKT Crimp ST Cable Mount Bag CONN SOCKET 26-28AWG .100" GOLD Contact; female; 26÷28AWG; C-Grid III; gold plated; crimped; 3A

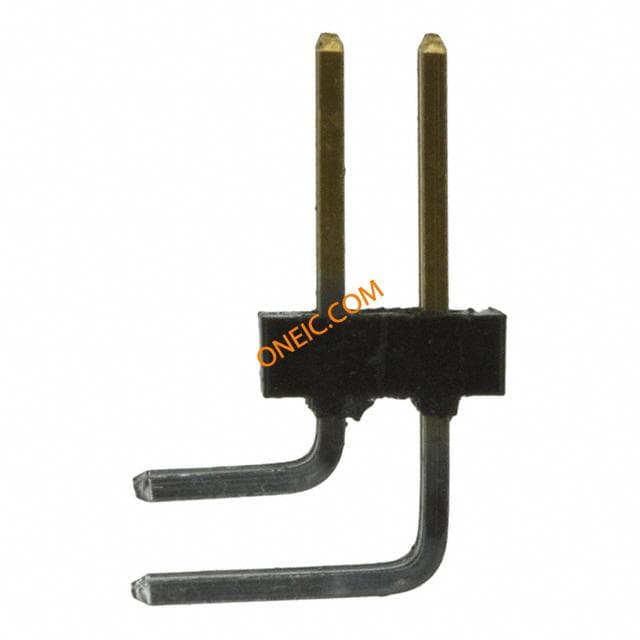

90122-0762
