90122-0124
| 制造商 | Molex, LLC |
| 描述 | CONN HEADER 8POS .100" R/A TIN Headers & Wire Housings 2.54MM CGRIDIII HDR 8P R/A DR TIN Conn Unshrouded Header HDR 8 POS 2.54mm Solder RA Thru-Hole Tray |
| 分类 |
商业参数
| 商标名 | C-GRID | 零件号别名 | 0901220124 |
| 产品类别 | Headers & Wire Housings | 标准包装数量 | 1 |
| 工厂包装数量 | 2400 | ||
合规参数
| RoHS | RoHS Compliant | ||
机械参数
| 颜色 | Black | 间距 | 0.100" (2.54mm) |
| 包装方式 | Bulk | 排间距 | 0.100" (2.54mm) |
| 端接方式 | Solder | 触头类型 | Male Pin |
| 安装类型 | Through Hole, Right Angle | 连接器类型 | Header, Unshrouded |
| 接触镀层 | Tin | 排数 | 2 |
| 触头材料 | Brass | 端接样式 | Through Hole |
| 触点数 | 8 | 位数 | 8 |
| 接触长度 - 配合 | 0.266" (6.75mm) | 接触镀层厚度 | 160µin (4.06µm) |
产品信息
| 类型 | Breakaway | 系列 | 90122 |
| 产品子类型 | Headers | 加载位置数 | All |
文档与媒体
相关型号
0901430008
molex
Conn Housing F 8 POS 2.54mm Crimp ST Cable Mount Bag CONN HOUSING 8POS .100" DL CRIMP

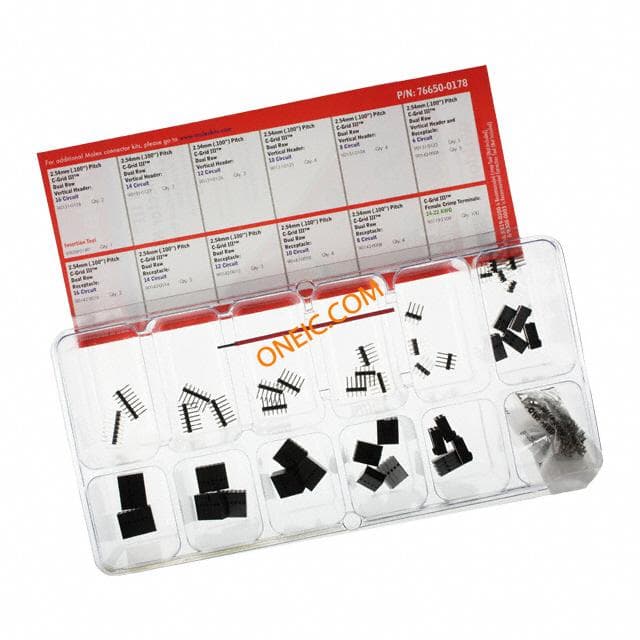

76650-0179
