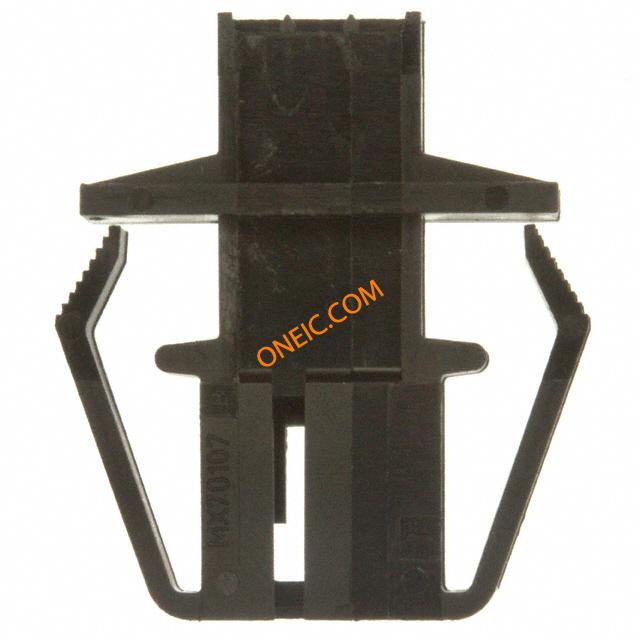

70107-0037
| 制造商 | Molex, LLC |
| 描述 | CONN HSNG MALE 3POS .100 PNL MT 2.54mm,housing,Cgrid,SL,A,w/ears,3w Headers & Wire Housings HSG 3P W/EARS SINGLE ROW Conn Housing M 3 POS 2.54mm Crimp ST Panel Mount Bag Conn.; Rect.; Housing; Crp; 2.54mm; 3 Cir.; SL; W2W Panel; Male; Sngl; w/Ears Molex SL 系列 1 行 2.54mm 节距 3 路 直 公 压接连接器外壳 |
| 分类 |
商业参数
| 商标名 | SL | 零件号别名 | 0701070037 |
| 产品类别 | Headers & Wire Housings | 标准包装数量 | 1 |
| 工厂包装数量 | 500 | ||
合规参数
| RoHS | Compliant | ||
电气参数
| 连接器类型 - 电压输入 | Male | ||
机械参数
| 颜色 | Black | 深度 | 24.26mm |
| 间距 | 0.100" (2.54mm) | 长度 | 19.05mm |
| 包装方式 | Bulk | 方向 | 直 |
| 触头类型 | Male Pin | 安装类型 | Panel Mount |
| 连接器类型 | Plug | 排数 | 1 |
| 壳体材料 | PET | 触点数 | 3 |
| 接触件端接 | Crimp | 位数 | 3 |
产品信息
| 备注 | Contacts Not Provided | 类型 | Crimp Housing |
| 连接器性别 | Male | 系列 | 70107 |
| CAD图纸 | 3D CAD Model | 产品子类型 | Wire Housings |
| 基础产品编号 | 70107 | 应用细节 | Signal, Wire-to-Wire |
| 适用产品/相关产品 | SL Wire-to-Wire Panel Mount Connector | ||
