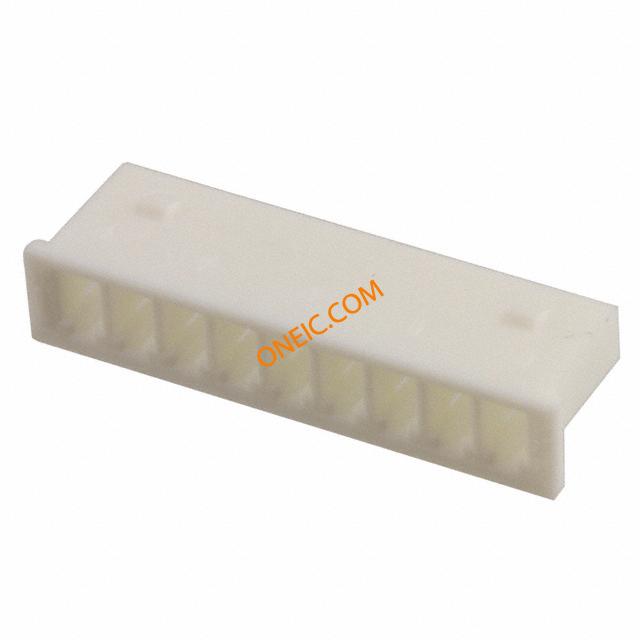

51004-0900
| 制造商 | |
| 描述 | CONN RCPT HOUSING 2MM 9POS SGL Housing,rcp,MicroBlade,2.0mm,LoPro,9way Headers & Wire Housings 2MM W-T-B HSG 9P friction lock 2.00mm Pitch MicroBlade™ Wire-to-Board Housing, Friction Lock, 5.80mm Height, 9 Circuits Multipole Connector Molex MICROBLADE 系列 2mm 节距 9 路 直 母 电缆安装 压接连接器外壳 |
| 分类 |
商业参数
| 商标名 | MicroBlade | 零件号别名 | 0510040900 |
| 产品类别 | Headers & Wire Housings | 标准包装数量 | 1 |
| 工厂包装数量 | 1000 | ||
合规参数
| RoHS | Not Applicable | 海关税号 | 85369010 |
电气参数
| 最大额定电流 | 2 A | ||
机械参数
| 颜色 | Natural | 深度 | 5.8mm |
| 间距 | 0.079" (2.00mm) | 长度 | 20mm |
| 重量 | 0.00045 | 包装方式 | Bulk |
| 触头类型 | Female Socket | 基体材料 | :PBT Polyester |
| 安装类型 | Free Hanging (In-Line) | 连接器类型 | Receptacle |
| 紧固类型 | Locking Ramp | 安装样式 | Wire |
| 排数 | 1 | 线缆终端 | :Crimp |
| 壳体材料 | PBT | 端接样式 | Crimp |
| 第一触头极性 | Socket (Female) | 触点数 | 9 |
| 接触件端接 | Crimp | 位数 | 9 |
产品信息
| 备注 | Contacts Not Provided | 连接器性别 | Female |
| 系列 | 51004 | 产品子类型 | Receptacles / Sockets - Housings |
| 适用产品/相关产品 | MicroBlade Wire-to-Board Connector | ||
文档与媒体
相关型号
0530140910
molex
Conn Shrouded Header HDR 9 POS 2mm Solder ST Thru-Hole Bag CONN HEADER 2MM 9POS TIN

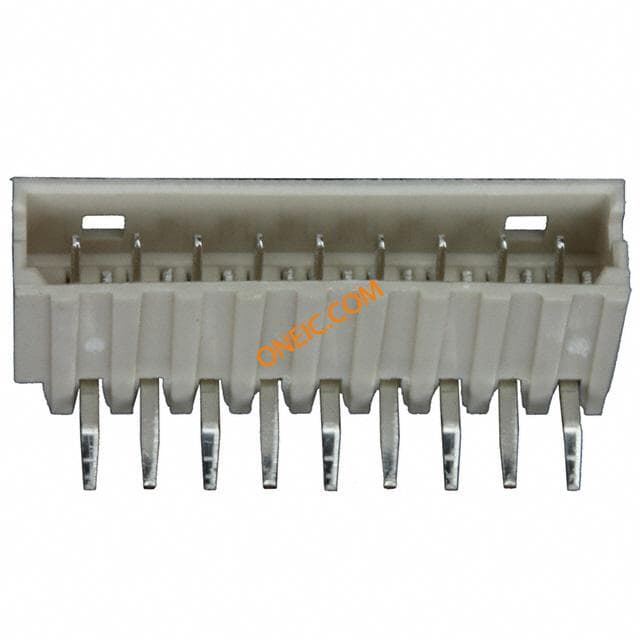

0530150910
