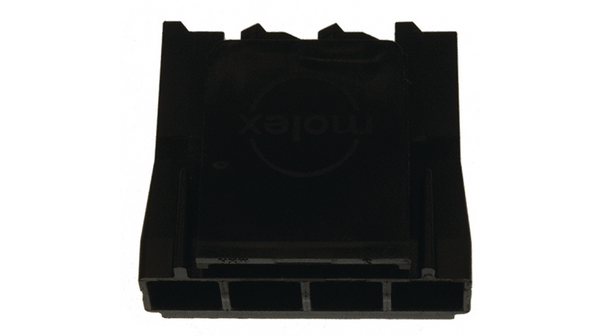

点击放大查看
44441-2004
| 制造商 | Molex, LLC |
| 描述 | CONN RECEPT 4POS 7.5MM SINGLE 4 way single row cable socket,14-18 awg Headers & Wire Housings RECPT SINGLE ROW 4P Conn Housing RCP 4 POS 7.49mm Crimp ST Bag RECEPTACLE, 4WAY .295 Sabre Receptacle Housing, Single Row, PA Polyamide Nylon 6/6, UL 94V-0, 4 .295SabreReceptacleHousing,SingleRow,PAPolyamideNylon6/6,UL94V-0,4 Socket housing Pitch7.5 mm Poles 4 Sabre™, 44441-2004, Molex Molex SABRE 系列 1 行 7.49mm 节距 4 路 直 母 压接连接器外壳 |
| 分类 |
商业参数
| 商标名 | Sabre | 零件号别名 | 0444412004 MOL44441-2004 |
| 产品类别 | Headers & Wire Housings | 工厂包装数量 | 1000 |
合规参数
| RoHS | RoHS Compliant | 海关税号 | 85369010 |
电气参数
| 额定电压 | 600 V | 工作电压 | :600V |
| 介电强度 | :6000V/m | 最大额定电流 | 18 A |
| 绝缘电阻 | :1000Mohm | ||
机械参数
| 深度 | 27.38mm | 间距 | 7.49mm |
| 宽度 | 15.24mm | 长度 | 30.81mm |
| 重量 | 0.002 | 导线线规 | 18-14 |
| 安装类型 | Straight | 安装样式 | Wire |
| 排数 | 1 | 封装形式 | :Nylon UL94V-0 |
| 壳体材料 | Nylon | 端接样式 | Crimp |
| 第一触头极性 | Socket (Female) | 触点数 | 4 |
| 位数 | :4 | 线规或范围 - AWG | :14AWG |
产品信息
| 连接器性别 | Female | 系列 | 44441 |
| CAD图纸 | 3D CAD Model | 产品子类型 | Receptacles / Sockets - Housings |
| 适用产品/相关产品 | Sabre Receptacle | ||
环境参数
| 工作温度 | :130°C | ||
