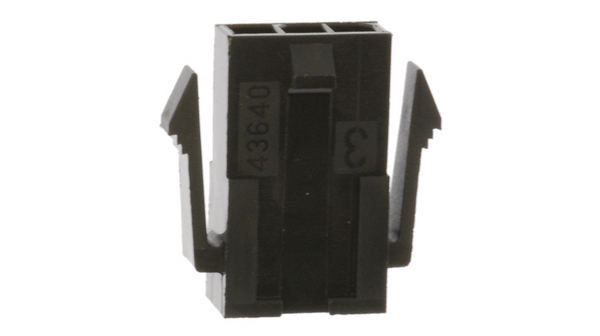

43640-0300
| 制造商 | Molex, LLC |
| 描述 | CONN PLUG 3POS 3MM SGL PANEL MNT 3 way 1 row panel mount plug,3mm pitch Headers & Wire Housings PLUG PANEL MOUNT 3P SINGLE ROW Conn Housing PL 3 POS 3mm Crimp ST Cable Mount Bag PLUG, IN-LINE, PANEL MOUNT, 3WAY MicroFit 3.0 Plug SR Pnl Mnt 3Ckt Male contact housing single row Pitch3 mm Poles 1 x 3 Micro-Fit, 43640-0300, Molex Molex MICRO-FIT 3.0 系列 1 行 3mm 节距 3 路 直 公 电缆安装 压接连接器外壳 |
| 分类 |
商业参数
| 商标名 | Micro-Fit 3.0 | 零件号别名 | 0436400300 |
| 产品类别 | Headers & Wire Housings | 工厂包装数量 | 2500 |
合规参数
| RoHS | RoHS Compliant | 海关税号 | 85369010 |
| 材料阻燃等级 | :UL94V-0 | ||
电气参数
| 额定电压 | :250V | 工作电压 | :250V |
| 接触电阻 | :10Mohm | 介电强度 | :1500V/m |
| 最大额定电流 | 2.5 A | 连接器类型 - 电压输入 | Male |
机械参数
| 深度 | 24.53mm | 间距 | 3mm |
| 重量 | 0.072 | 材料（通用） | :Polyester |
| 安装类型 | Straight | 安装样式 | Panel |
| 排数 | 1 | 壳体材料 | PET |
| 触点数 | 3 | 位数 | :3 |
产品信息
| 类型 | Plug Housing | 连接器性别 | Male |
| 系列 | 43640 | CAD图纸 | 3D CAD Model |
| 产品子类型 | Wire Housings | 应用细节 | Power, Wire-to-Wire |
| 适用产品/相关产品 | Micro-Fit 3.0 Plug | ||
