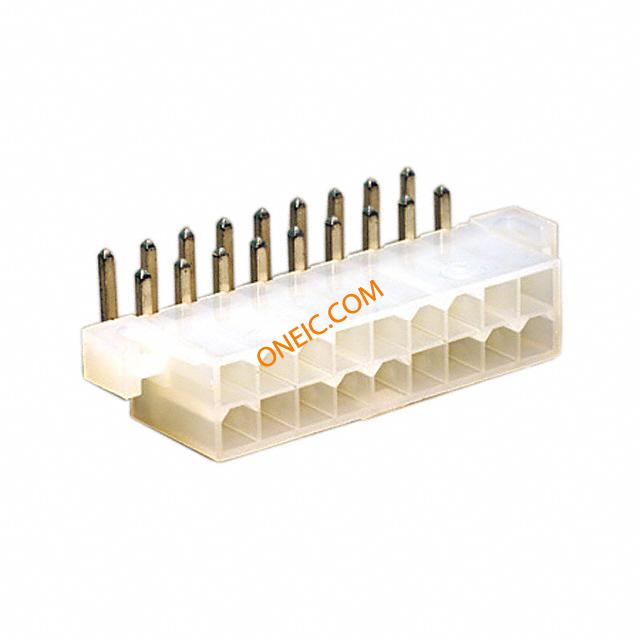

39-29-1188
| 制造商 | Molex, LLC |
| 描述 | CONN HEADER 18POS 4.2MM R/A TIN Molex 5569 Series 4.2mm Pitch 18 Way 2 Row Right Angle PCB Header, Solder Termination, 6A Headers & Wire Housings 18 CKT R/A HEADER Conn Power HDR 18 POS 4.2mm Solder RA Thru-Hole 18 Terminal 1 Port Bag HEADER, MINI-FIT, R/A, 18WAY Molex MINI-FIT JR. 系列 4.2mm节距 18路 (2排) 直角 PCB 针座, 焊接端接, 6A , 通孔 |
| 分类 |
商业参数
| 商标名 | Mini-Fit Jr. | 零件号别名 | 0039291188 39-29-1188-PB 5569-18A1 |
| 产品类别 | Headers & Wire Housings | 标准包装数量 | 10 |
| 工厂包装数量 | 75 | ||
合规参数
| RoHS | Compliant | 海关税号 | 85369010 |
| 认证机构 | :CSA, UL | 材料阻燃等级 | :UL94V-2 |
电气参数
| 量程（°/s） | :MOLEX - Mini-Fit Jr 5569 Series | 额定电压 | 600 V |
| 工作电压 | :600V | 接触电阻 | :10mohm |
| 介电强度 | :1500V/m | 最大额定电流 | 6A |
机械参数
| 颜色 | Natural | 间距 | 0.165" (4.20mm) |
| 重量 | 0.006 | 材料（通用） | :Clear nylon |
| 包装方式 | Tray | 排间距 | 0.165" (4.20mm) |
| 端接方式 | Solder | 触头类型 | Male Pin |
| 安装类型 | Through Hole, Right Angle | 连接器类型 | Header, Shrouded |
| 接触镀层 | Tin | 紧固类型 | Locking Ramp |
| 排数 | 2 | 触头材料 | Brass |
| 壳体材料 | Nylon | 端接样式 | Through Hole |
| 第一触头极性 | Pin (Male) | 触点数 | 18 |
| 接触件端接 | :Solder | 位数 | 18 |
| 接触镀层厚度 | 200µin (5.08µm) | 第一连接器安装类型 | :PCB |
产品信息
| 类型 | Wire to Board | 连接器性别 | :Plug |
| 系列 | 5569 | CAD图纸 | 3D CAD Model |
| 产品子类型 | Header Assemblies | 加载位置数 | All |
环境参数
| 插拔次数 | :30 | 工作温度 | :105°C |
