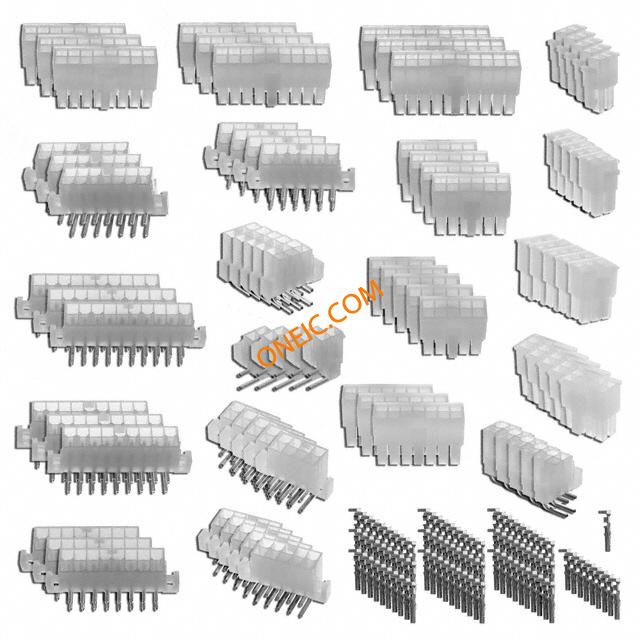

76650-0016
| 制造商 | Molex, LLC |
| 描述 | COMPONENT KITS, WIRE TO BOARD AND WIRE TO WIRE KIT 10,12,14,16,18,2,20,3,4,6,8POS 3-9A FREE-HANGING, THROUGH HOLE MOUNTING RECEPTACLE, RIGHT ANGLE HEADER 4.2MM PITCH 600V 24-18 WIRE SIZE KIT CONN MINI-FIT JR 4.20MM COMPONENT KITS, WIRE TO BOARD AND WIRE TO WIRE KIT 10,12,14,16,18,2,20,3,4,6,8POS 3-9A FREE-HANGING, THROUGH HOLE MOUNTING RECEPTACLE, RIGHT ANGLE HEADER ... Kit Description:Right Angle Header and ReceptacleKit Category:Wire to BoardSolution:PowerPackaging:Clamshell: 12.75" by 6"Num. Pieces:182 MINI-FIT JR. PWR CONNECTOR KIT RT ANGLEHEADER & RECEPT |
| 分类 |
对参数有疑问？问 AI 助手
商业参数
| 标准包装规格 | 1 | 标准包装数量 | Bulk |
合规参数
| RoHS | Lead free / RoHS Compliant | ||
电气参数
| 电压 | 600 V | 最大额定电流 | 3.0-9.0 A |
机械参数
| 间距 | 4.20 mm | 包装方式 | Plastic Box |
| 导线线规 | 24-18 | 行程角度 | Right Angle |
| 连接器类型 | Receptacle and Header | ||
产品信息
| 值 | 182 pcs - Assorted 2, 4, 6, 8, 10, 12, 14, 16, 18, 20 Circuit Header, Housing, 24 ~ 18 AWG Crimp Terminals | 套件类型 | Rectangular - Contact, Header, Housing |
| 制造商全称 | 76650 | 配置 | Wire-to-Board |
| 应用细节 | Security and Alarms, Vending and Gaming Machines, White Goods, Production Equipment, Broadcast Equipment, Telecom Infrastructure | ||
