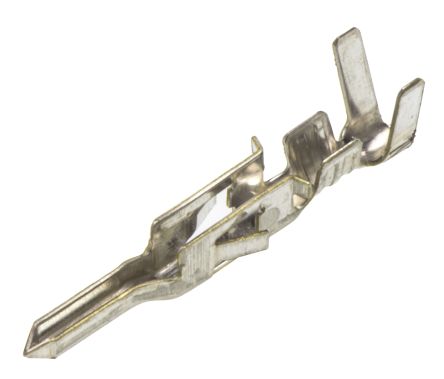

点击放大查看
39-00-0040
| 制造商 | Molex, LLC |
| 描述 | CONN TERM MALE 18-24AWG TIN Crimp term,male,18-24 AWG,reel Headers & Wire Housings MN-FT TERM 18-24G F Reel of 4000 Contact PIN Crimp ST Cable Mount Reel CONTACT, PIN, 24-18 AWG, CRIMP CONTACT, PIN, 24AWG TO 18AWG, CRIMP .165 pitch mini fit crimp terminal, male, 18-24 awg, reel Molex MINI-FIT 系列 公 压接接线端子, 压接, 镀锡镀铜触点 |
| 分类 |
商业参数
| 商标名 | Mini-Fit Jr. | 零件号别名 | 0039000040 5558T |
| 产品类别 | Headers & Wire Housings | 工厂包装数量 | 4000 |
合规参数
| RoHS | RoHS Compliant | 海关税号 | 85369010 |
电气参数
| 额定电压 | 600 V | ||
机械参数
| 重量 | 0.492 | 包装方式 | Reel |
| 导线线规 | 24-18 | 端接方式 | Crimp |
| 触点尺寸 | :18 | 连接器类型 | Contact |
| 接触镀层 | Tin over Copper | 触头材料 | Brass |
| 端接样式 | Crimp | 第一触头极性 | Pin (Male) |
| 接触件端接 | :Crimp | 线规或范围 - AWG | :24AWG |
| 外径-未扩张 | :3.1mm | ||
产品信息
| 连接器性别 | Male | 系列 | 5558 |
| 产品子类型 | Contacts | 适用产品/相关产品 | 30068 Mini-Fit TPA Plug, 42475 Mini-Fit BMI Plug, 5559 Mini-Fit Jr.™ Plug |
