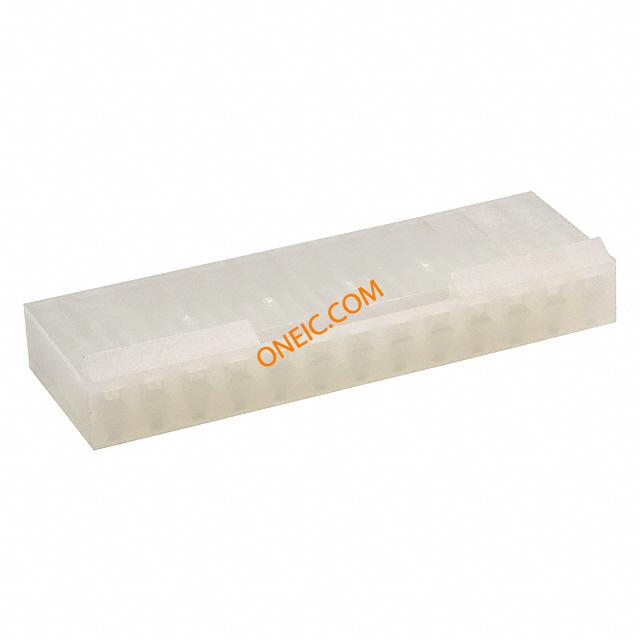

26-03-4131
| 制造商 | Molex, LLC |
| 描述 | CONN HOUSING 13POS .156 W/RAMP Headers & Wire Housings TRIFURCON HOUSING Conn Housing F 13 POS 3.96mm Crimp ST Cable Mount Bag Conn Housing RCP 13 POS 3.96mm Crimp ST Cable Mount Bag PLUG & SOCKET HOUSING, RECEPTACLE 13POS, 3.96MM |
| 分类 |
商业参数
| 商标名 | KK | 零件号别名 | 0026034131 6442-R13-Z |
| 产品类别 | Headers & Wire Housings | 标准包装数量 | 10 |
| 工厂包装数量 | 500 | ||
合规参数
| RoHS | RoHS Compliant | 海关税号 | 85366930 |
机械参数
| 颜色 | Natural | 间距 | 0.156" (3.96mm) |
| 重量 | 0 | 包装方式 | Bulk |
| 触头类型 | Non Gendered | 安装类型 | Free Hanging (In-Line) |
| 连接器类型 | Receptacle | 紧固类型 | Locking Ramp |
| 安装样式 | Wire | 排数 | 1 |
| 壳体材料 | Nylon | 端接样式 | Crimp |
| 第一触头极性 | Socket (Female) | 触点数 | 13 |
| 接触件端接 | Crimp | 位数 | 13 |
产品信息
| 备注 | Contacts Not Provided | 系列 | 6442 |
| 产品子类型 | Receptacles / Sockets - Housings | 适用产品/相关产品 | :6838, 7258, KK Trifurcon Crimp Terminals, 45570 MarKK Terminals |
文档与媒体
相关型号
0008500187
molex
Contact SKT Crimp ST Cable Mount Reel CONN TERM FEMALE 18-20AWG TIN
0008520112
molex
Contact SKT Crimp ST Cable Mount Reel CONN TERM FEMALE 18-20AWG TIN
0008580189
molex
Contact SKT Crimp ST Cable Mount Loose Piece CONN TERM FEMALE 18-20AWG GOLD

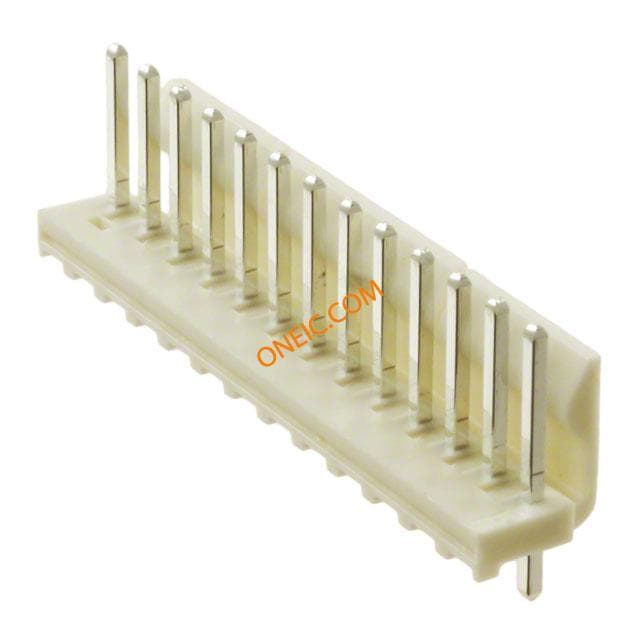

0026604130
molex
Conn Wire to Board HDR 13 POS 3.96mm Solder ST Thru-Hole Bag CONN HEADER 13POS VERT TIN
0008580110
molex
Contact SKT Crimp ST Cable Mount Reel CONN TERM FEMALE 18-20AWG GOLD
0008520113
molex
Contact SKT Crimp ST Cable Mount Bag CONN TERM FEMALE 18-20AWG TIN
0008580111
molex
Contact SKT Crimp ST Cable Mount Loose Piece CONN TERM FEMALE 18-20AWG GOLD
0008500189
Molex
Contact SKT Crimp ST Cable Mount Loose Piece CONN TERM FEMALE 18-20AWG TIN
0008650121
molex
Contact SKT Crimp ST Cable Mount Reel CONN TERM FEMALE 22-26AWG GOLD
0008580105
molex
Contact SKT Crimp ST Cable Mount CONN TERM CRIMP 18-20 AWG GOLD
0008650122
Molex
Contact SKT Crimp ST Cable Mount Loose Piece CONN TERM FEMALE 22-26AWG GOLD
0008520125
Molex
Contact SKT Crimp ST Cable Mount Bag CONN TERM FEMALE 22-26AWG TIN Conn Contact F 1 POS Crimp ST Cable Mount Bag CONTACT, FEMALE, 26-22AWG, CRIMP

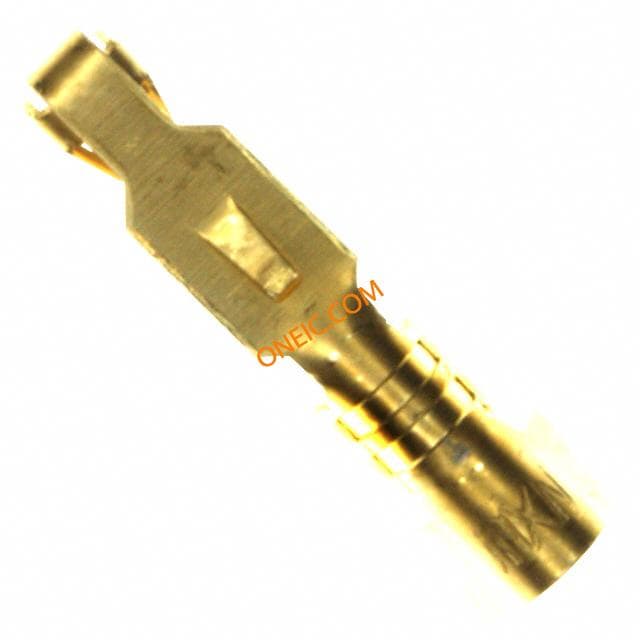

0008580187
