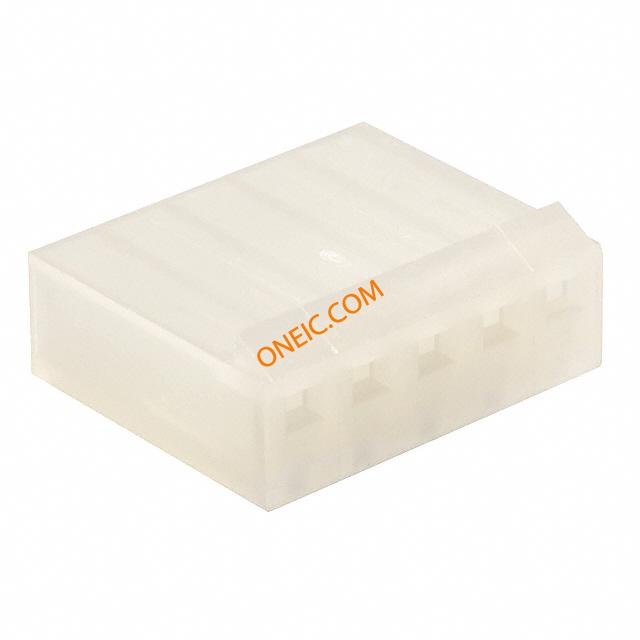

26-03-4050

制造商	Molex, LLC
描述	CONN RECEPT 5POS .156 W/RAMP Crimp Housing 3.96mm KK,for TrifurCon,5w Headers & Wire Housings .156 5CRKT KK HOUSE Conn Housing F 5 POS 3.96mm Crimp ST Cable Mount Bag HOUSING, CRIMP, RECEPTACLE, 3.96MM, 5WAY Molex KK 396 系列 3.96mm 节距 5 路直母电缆安装压接连接器外壳
分类	连接器解决方案板对板连接器板对板连接器

对参数有疑问？问 AI 助手

商业参数

商标名	KK	零件号别名	0026034050 6442-R05-Z
产品类别	Headers & Wire Housings	标准包装数量	10
工厂包装数量	1000

合规参数

RoHS	Compliant	SVHC	:No SVHC (20-Jun-2013)
海关税号	85369010

机械参数

颜色	Natural	深度	17mm
间距	0.156" (3.96mm)	宽度	6.6mm
长度	20.62mm	重量	0.005
包装方式	Bulk	触头类型	Non Gendered
引脚间距	:3.96mm	安装类型	Free Hanging (In-Line)
连接器类型	Receptacle	紧固类型	Locking Ramp
安装样式	Wire	排数	1
壳体材料	Nylon	端接样式	Crimp
第一触头极性	Socket (Female)	触点数	5
接触件端接	Crimp	位数	5

产品信息

备注	Contacts Not Provided	连接器性别	Female
系列	6442	CAD图纸	3D CAD Model
产品子类型	Receptacles / Sockets - Housings	适用产品/相关产品	KK Connector

文档与媒体

PDF 文档

26-03-4050

PDF 文档

1631516.pdf

PDF 文档

0026034050_CRIMP_HOUSINGS.pdf

相关型号

0008500187

molex

Contact SKT Crimp ST Cable Mount Reel CONN TERM FEMALE 18-20AWG TIN

¥0.2234

详情

0008520112

molex

Contact SKT Crimp ST Cable Mount Reel CONN TERM FEMALE 18-20AWG TIN

¥0.2149

详情

0026605050

molex

Conn Wire to Board HDR 5 POS 3.96mm Solder RA Thru-Hole Bag CONN HEADER 5POS .156 R/A TIN

¥1.9298

详情

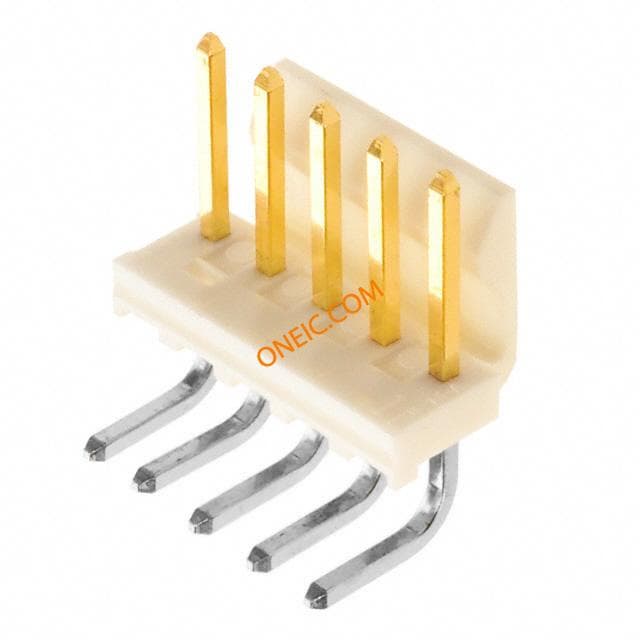

0026615050

molex

Conn Wire to Board HDR 5 POS 3.96mm Solder RA Thru-Hole Bag CONN HEADER 5POS .156 R/A GOLD

¥12.1312

详情

0008580110

molex

Contact SKT Crimp ST Cable Mount Reel CONN TERM FEMALE 18-20AWG GOLD

¥1.3176

详情

0026604050

molex

Conn Wire to Board HDR 5 POS 3.96mm Solder ST Thru-Hole Bag CONN HEADER 5POS .156 VERT TIN

¥1.4858

详情

0008520113

molex

Contact SKT Crimp ST Cable Mount Bag CONN TERM FEMALE 18-20AWG TIN

¥0.4678

详情

0026481055

Molex

Conn Unshrouded Header HDR 5 POS 3.96mm Solder ST Thru-Hole Bag CONN HEADER 5POS .156 VERT TIN

¥3.3191

详情

0008650122

Molex

Contact SKT Crimp ST Cable Mount Loose Piece CONN TERM FEMALE 22-26AWG GOLD

¥2.2919

详情

0026481056

Molex

Conn Wire to Board HDR 5 POS 3.96mm Solder RA Thru-Hole Bag CONN HEADER 5POS .156 R/A TIN

¥2.7370

详情

0008520125

Molex

Contact SKT Crimp ST Cable Mount Bag CONN TERM FEMALE 22-26AWG TIN Conn Contact F 1 POS Crimp ST Cable Mount Bag CONTACT, FEMALE, 26-22AWG, CRIMP

¥0.9030

详情

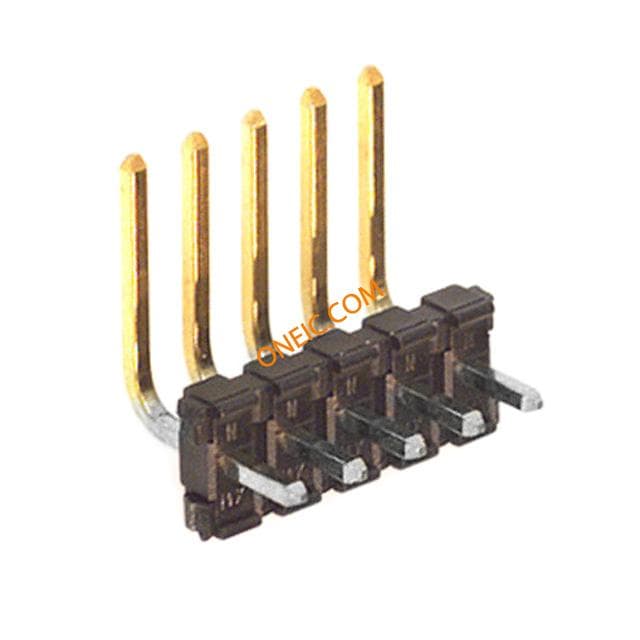

0026482052

Molex

Conn Unshrouded Header HDR 5 POS 3.96mm Solder RA Thru-Hole Bag CONN HEADER 5POS .156 R/A GOLD

¥6.6422

详情

0026614050

Molex

Conn Wire to Board HDR 5 POS 3.96mm Solder ST Thru-Hole Bag CONN HEADER 5POS .156 VERT GOLD

¥4.9470

详情

08-56-0124

Molex Connector Corporation

CONN TERM FEMALE 22-26AWG GOLD Headers & Wire Housings TERMINAL 22-26 BULK Contact SKT Crimp ST Cable Mount Loose Piece CONTACT, FEMALE, 26-22AWG, CRIMP KK 156 TERM CRP 22-26 AWG TRIFURCON GOLD Molex KK 396 系列母压接接线端子, 压接, 镀金触点

¥4.0426

详情

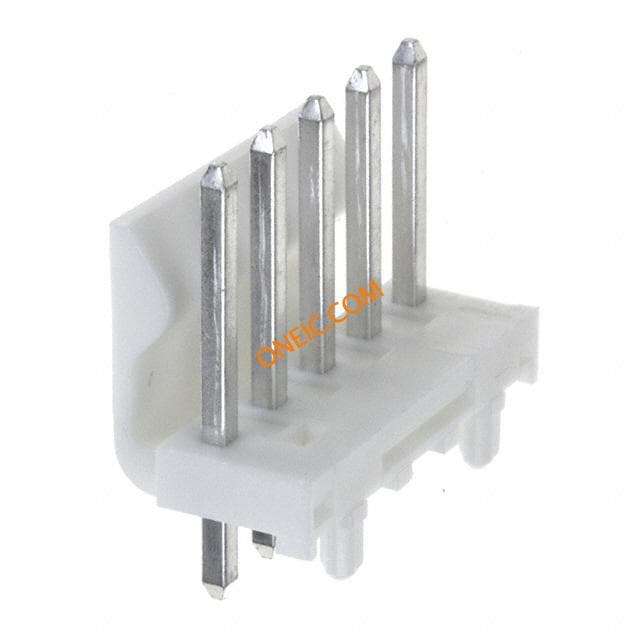

26-64-4050
