点击放大查看

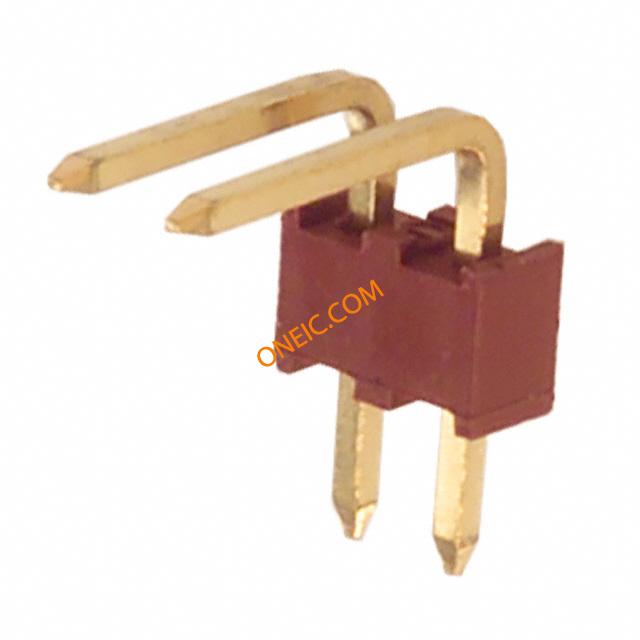

22-12-2021

制造商	Molex, LLC
描述	CONN HEADER 2POS .100 R/A GOLD Headers & Wire Housings 2P RIGHT ANGLE HEADR Conn Unshrouded Header HDR 2 POS 2.54mm Solder RA Thru-Hole Bag
分类	连接器解决方案板对板连接器板对板连接器

商业参数

商标名	KK	零件号别名	0022122021 A-4094-02A501
产品类别	Headers & Wire Housings	标准包装数量	10
工厂包装数量	3000

合规参数

RoHS

RoHS Compliant

电气参数

额定电压

250 V

最大额定电流

4 A

机械参数

颜色	White	间距	0.100" (2.54mm)
包装方式	Bulk	端接方式	Solder
触头类型	Male Pin	安装类型	Through Hole, Right Angle
连接器类型	Header, Unshrouded	接触镀层	Gold
排数	1	触头材料	Brass
壳体材料	Nylon	端接样式	Through Hole
触点数	2	位数	2
接触长度 - 配合	0.369" (9.37mm)	接触镀层厚度	20µin (0.51µm)

产品信息

类型	Pin Strip	系列	4094
产品子类型	Headers	加载位置数	All
