点击放大查看

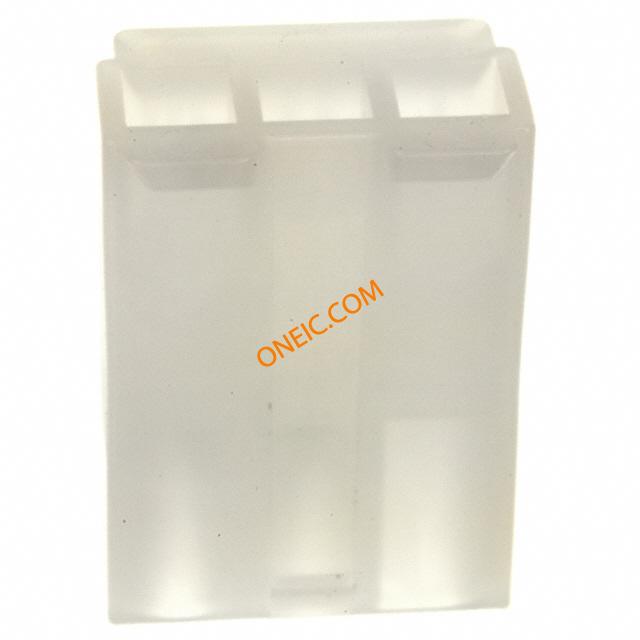

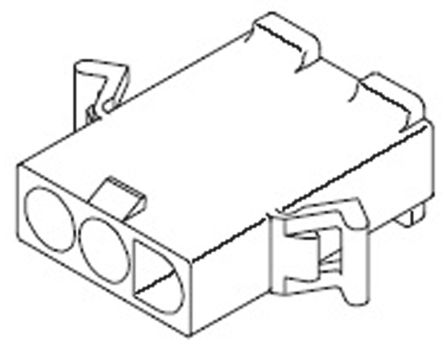

19-09-2039
| 制造商 | Molex, LLC |
| 描述 | CONN PLUG 3POS .093 Pin & Socket Connectors PLUG W/POS LTCH 3P Conn Housing PL 3 POS 6.7mm Crimp ST Cable Mount Bag HOUSING MALE, 3WAY .093 POWR CONNECTR; INTRNL SERIES; FREEHANG PLUG; 3 CIRCUT Molex STANDARD .093" 系列 6.7mm 节距 3 路 直 公 表面安装 压接连接器外壳 |
| 分类 |
商业参数
| 商标名 | Standard .093 in | 其他名称 | WM1688 |
| 零件号别名 | 0019092039 3191-3P1 | 产品类别 | Pin & Socket Connectors |
| 标准包装数量 | 1 | 工厂包装数量 | 1000 |
合规参数
| RoHS | RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 海关税号 | 85369010 | 认证机构标志 | CSA, UL, TUV |
| 材料阻燃等级 | UL94V-2 | ||
电气参数
| 额定电压 | 600 V | 最大额定电流 | 11 A |
机械参数
| 颜色 | Natural | 间距 | 0.264" (6.71mm) |
| 重量 | 3.64 | 包装方式 | Bulk |
| 端接方式 | Crimp | 触头类型 | Male or Female |
| 安装类型 | Free Hanging (In-Line) | 行程角度 | Straight |
| 连接器类型 | Plug | 紧固类型 | Locking Ramp |
| 排数 | 1 | 壳体材料 | Nylon |
| 总长度 | 0.85 " | 主要材料 | Power |
| 端接样式 | Crimp | 第一触头极性 | Pin (Male), Socket (Female) |
| 触点数 | 3 | 接触件端接 | Crimp |
| 位数 | 3 | ||
产品信息
| 备注 | Contacts Not Provided | 类型 | Cable Plug |
| 系列 | 3191 | 制造商全称 | 3191 Series |
| 产品子类型 | Plug Housings | 适用产品/相关产品 | :1189, 1190, 1434, 2605 Crimp Terminals |
环境参数
| 工作温度 | -40 to +105 °C | ||
