点击放大查看

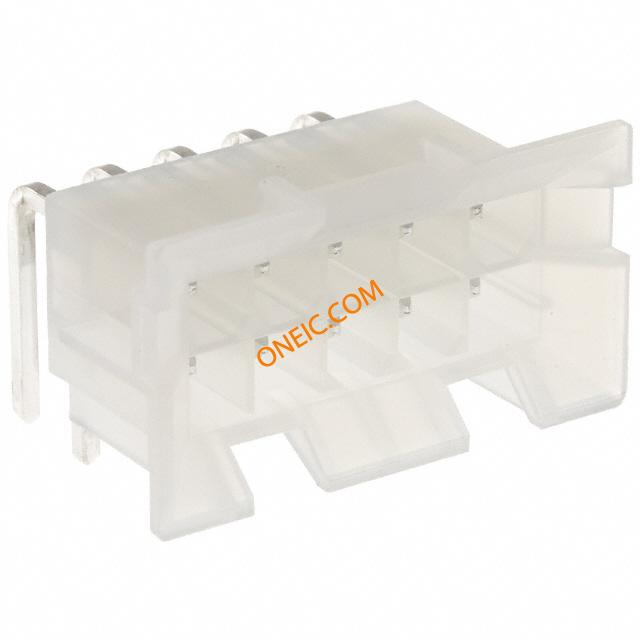

15-24-6100
| 制造商 | Molex, LLC |
| 描述 | CONN HEADER 10POS 4.2MM R/A TIN Headers & Wire Housings R/A HDR DUAL ROW 10P Conn Power HDR 10 POS 4.2mm Solder RA Thru-Hole 10 Terminal 1 Port Tray HEADER, 4.20MM, 10WAY |
| 分类 |
商业参数
| 商标名 | Mini-Fit BMI | 零件号别名 | 0015246100 A-42404-10A1 |
| 产品类别 | Headers & Wire Housings | 标准包装数量 | 10 |
| 工厂包装数量 | 440 | ||
合规参数
| RoHS | RoHS Compliant | 海关税号 | 85366930 |
电气参数
| 量程（°/s） | :MOLEX - Mini-Fit BMI 42404 Series | 额定电压 | 600 V |
| 最大额定电流 | 12 A, 7 A | ||
机械参数
| 颜色 | Natural | 间距 | 0.165" (4.20mm) |
| 重量 | 0.4 | 包装方式 | Tray |
| 排间距 | 0.165" (4.20mm) | 端接方式 | Solder |
| 触头类型 | Male Pin | 安装类型 | Through Hole, Right Angle |
| 连接器类型 | Header, Shrouded | 接触镀层 | Tin |
| 排数 | 2 | 触头材料 | Brass |
| 壳体材料 | Nylon | 端接样式 | Through Hole |
| 触点数 | 10 | 接触件端接 | :Through Hole Right Angle |
| 位数 | 10 | 接触镀层厚度 | 100µin (2.54µm) |
| 第一连接器安装类型 | :PCB | ||
产品信息
| 类型 | Pin Header | 连接器性别 | :Header |
| 系列 | 42404 | 产品特性 | Board Lock |
| 产品子类型 | Header Assemblies | 加载位置数 | All |
