03-09-2011
| 制造商 | Molex, LLC |

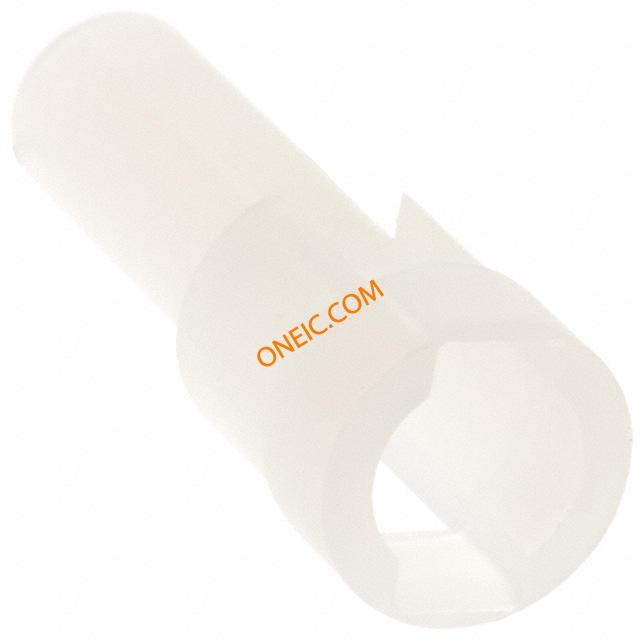

| 描述 | CONN PLUG 1POS .093 Molex 1 Way 1 Row Straight Cable Mount Male Housing Receptacle Pin & Socket Connectors 1 CIRCUIT PLUG 2.36mm Diameter Standard .093" Pin and Socket Plug Housing, 1 Circuit, Friction Lock PLUG HOUSING, 0.093", 1WAY TERMINAL HOUSE; STD; PLUG W/O MOUNT EAR; 1CIRCUIT |
| 分类 |
商业参数
| 商标名 | Standard .093 in | 零件号别名 | 0003092011 1619-1P1A5M1A 3092011 |
| 产品类别 | Pin & Socket Connectors | 标准包装数量 | 10 |
| 工厂包装数量 | 12000 | ||
合规参数
| RoHS | Compliant | 海关税号 | 85369010 |
| 认证机构 | :CSA, UL | 认证机构标志 | CSA, UL, TUV |
| 材料阻燃等级 | :UL94V-2 | ||
电气参数
| 额定电压 | :250V | 工作电压 | :250V |
| 介电强度 | :1500V/m | 击穿电压 | :3mV |
| 最大额定电流 | 14 A | ||
机械参数
| 颜色 | Natural | 间距 | 5.03 mm |
| 重量 | 0.005 | 材料（通用） | :Clear nylon |
| 包装方式 | Bulk | 导线线规 | :0.597mm² |
| 端接方式 | Crimp | 触头类型 | Male or Female |
| 安装类型 | Free Hanging (In-Line) | 释放力 | :0.027N |
| 行程角度 | Straight | 连接器类型 | Plug |
| 紧固类型 | Detent Lock | 安装样式 | Through Hole |
| 排数 | 1 | 封装形式 | :Plug |
| 插入力 | :0.034N | 壳体材料 | Nylon |
| 总长度 | 0.954 " | 端接样式 | Crimp |
| 第一触头极性 | Pin (Male), Socket (Female) | 触点数 | 1 |
| 接触件端接 | Crimp | 位数 | 1 |
| 线规或范围 - mm² | :1.68mm² | 外径-未扩张 | :4.06mm |
产品信息
| 备注 | Contacts Not Provided | 类型 | Plug |
| 连接器性别 | Male | 系列 | 1619 |
| CAD图纸 | 3D CAD Model | 制造商全称 | 1619 Series |
| 产品子类型 | Plug Housings | 适用产品/相关产品 | :1189, 1190, 1434, 1973 Crimp Terminals |
环境参数
| 工作温度 | :105°C | ||
