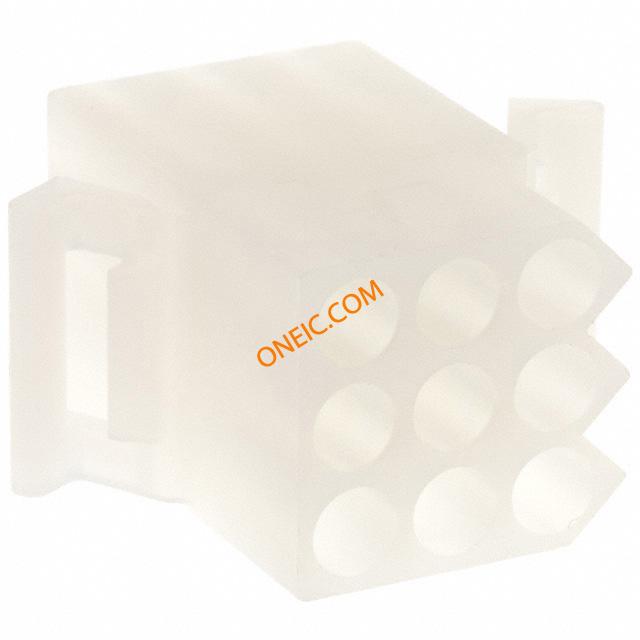

03-09-1091
| 制造商 | Molex, LLC |
| 描述 | CONN RECEPT 9POS .093 PANEL MNT Molex 5.03mm 9 Way 3 Row Straight Panel Mount Female Housing Receptacle Pin & Socket Connectors 9 CIRCUIT RECEPTACLE Conn Housing RCP 9 POS 5.03mm Crimp ST Panel Mount Bag CONNECTOR HOUSING, RECEPTACLE, NYLON TERMINAL HOUSE; STD; RECEPT W/MNT EAR & DTENT LCK; 9 CIRCUIT Molex STANDARD .093" 系列 9路 (3行) 5.03mm节距 直 面板安装 外壳 |
| 分类 |
商业参数
| 商标名 | Standard .093 in | 零件号别名 | 0003091091 1292-R 3091091 |
| 产品类别 | Pin & Socket Connectors | 标准包装数量 | 5 |
| 工厂包装数量 | 1500 | ||
合规参数
| RoHS | Compliant | 海关税号 | 85369010 |
| 认证机构 | :CSA, UL | 认证机构标志 | CSA, UL |
| 材料阻燃等级 | :UL94V-2 | ||
电气参数
| 额定电压 | 250 V | 最大额定电流 | 11A |
机械参数
| 颜色 | Natural | 间距 | 0.198" (5.03mm) |
| 高度 | 18.59mm | 重量 | 0.004 |
| 材料（通用） | :Nylon | 包装方式 | Bulk |
| 排间距 | 0.198" (5.03mm) | 端接方式 | Crimp |
| 触头类型 | Male or Female | 安装类型 | Panel Mount, Snap-In |
| 释放力 | :0.027N | 行程角度 | Straight |
| 连接器类型 | Receptacle | 紧固类型 | Locking Ramp |
| 排数 | 3 | 插入力 | :0.034N |
| 壳体材料 | Nylon | 总长度 | 1.03 " |
| 端接样式 | Crimp | 第一触头极性 | Pin (Male), Socket (Female) |
| 触点数 | 9 | 接触件端接 | Crimp |
| 位数 | 9 | 安装孔直径 | 0.828×0.725 " |
产品信息
| 备注 | Contacts Not Provided | 类型 | Panel Socket |
| 连接器性别 | Female | 系列 | 1292 |
| CAD图纸 | 3D CAD Model | 制造商全称 | 1292 Series |
| 产品子类型 | Receptacle Housings | 适用产品/相关产品 | :1189, 1190, 1434, 1973 Crimp Terminals |
环境参数
| 工作温度 | :105°C | ||
