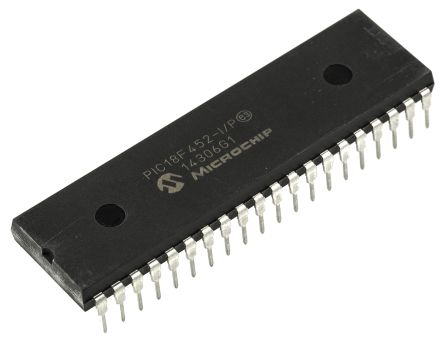

PIC18F452-I/P

制造商	Microchip Technology Inc.
描述	MCU 8-bit PIC18 PIC RISC 32KB Flash 5V 40-Pin PDIP Tube 8 bit MCU PDIP40 IC MCU 8BIT 32KB FLASH 40DIP PIC18F452-I/P, 8 bit Microcontroller PIC 40MHz 32kb Flash, 1536B RAM, I2C SPI 40-Pin PDIP IC, 8BIT FLASH MCU, 18F452, DIP40 IC, 8-BIT FLASH MCU, TUBE10 40-Pin,32KBFlash,1536RAM,34I/O PIC microcontroller; EEPROM:256B; SRAM:1536B; 40MHz; DIP40 Microcontroller 8 Bit DIL-40, PIC18F452-I/P, Microchip Microchip PIC18F 系列 8 bit PIC MCU, 40MHz, 32 kB ROM 闪存, 1536 B RAM, 40针 PDIP封装 8-bit Microcontrollers - MCU 32KB 1536 RAM 34I/O PIC18F 32K PDIP40 85°C
分类	集成电路嵌入式微控制器应用处理器

商业参数

最小起订量	1	单位包装	10
标准包装数量	Rail / Tube	标准封装名称	PDIP

合规参数

RoHS	Lead free / RoHS Compliant	SVHC	:No SVHC (20-Jun-2013)
欧盟RoHS	Compliant	海关税号	85423190
零件状态	:18F452	抗辐射加固	No
无铅定义	RoHS-conform	认证机构	No

电气参数

输入端	36	转速	40 MHz
定时器	2 x 16 bit, 2 x 8 bit	存储器	32KBytes
RAM 大小	1.5 KB	内核大小	8-Bit
核心类型	PIC	频率	40 MHz
接口	I2C/SPI/USART	时钟速率	40
比较器数量	2	分辨率	10bit
EEPROM容量	256Byte	存储器容量	32KByte
存储器类型	FLASH	I/O 数量	34
电压范围	2-5.5V	位数	10
额定电压	4.2 → 5.5 V	看门狗定时器	1
时钟频率	:40MHz	数据转换器	A/D 8x10b
FPGA 核心单元数	:10	最大频率	40MHz
DAC数量	2	振荡器类型	External
供电电压	5 V	数字I/O线数	34pins
分辨率（位）	10Bit	串行接口	1
通道数量	1	模拟输入/输出	8-Channel,10-Bit
非易失性存储器	256Bytes	程序存储器大小	32 KB
程序存储器类型	Flash	ADC/DAC 数量	8
8位定时器数量	1	最小供电电压	4.2 V
频率（中心/带宽）	16 bit, 8 bit	最大功耗	1000 mW
每元件位数	:10	供电电压 (Vcc/Vdd)	4.2 V ~ 5.5 V

机械参数

宽度	14.22mm	高度	4.06mm
长度	52.45mm	重量	0.000001
包装方式	TUBE	引脚样式	Through Hole
端接方式	:Through Hole	安装类型	Through Hole
引脚数	:40	封装形式	40PDIP
冷却的封装	PDIP	材料表面处理	:-
包装数量	PDIP	尺寸/外形	52.45 x 14.22 x 4.06mm
位数	40	供应商器件封装	40-PDIP
核心数/总线宽度	8 Bit	脉冲宽度失真（最大）	2(10 bit) (CCP)

产品信息

SPI	1	SPG	110
USB	0	类型	PIC microcontroller
协议	1	匹配码	PIC18F452-I/P
闪存大小	:32KB	SPI编号	1
片内RAM（通道数×位宽）	8-chx10-bit	外设	Brown-out Detect/Reset, LVD, POR, PWM, WDT
架构	RISC	连接性	I²C, SPI, UART/USART
可编程性	Yes	核心处理器	PIC
单元数量	1	定时器数量	4
控制器系列	:PIC18	标准交期	14 weeks
射频系列/标准	PIC18	使用的IC/零件	:PIC18F452-I/P
DigiKey可编程	Yes	微控制器特性	:2 PWM, Watchdog , In-System Programming, 2 CCP
A/D转换器数量	:8
