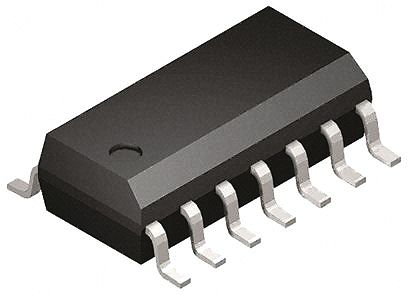

点击放大查看
PIC16F688-E/SL
| 制造商 | Microchip Technology Inc. |
| 描述 | MCU 8-bit PIC16 PIC RISC 7KB Flash 2.5V/3.3V/5V 14-Pin SOIC N Tube 8 bit MCU SOIC14 IC MCU 8BIT 7KB FLASH 14SOIC 8-bit Microcontrollers - MCU 7KB 256 RAM 12 I/O IC, MCU, 8-BIT, 7K FLASH, SOIC14 Microchip PIC16F 系列 8 bit PIC MCU, 20MHz, 4096 字 ROM 闪存, 256 B RAM, 14针 SOIC封装 |
| 分类 |
商业参数
| 最小起订量 | 399 | 单位包装 | 57 |
| 产品类别 | 8-bit Microcontrollers - MCU | 标准包装数量 | Rail / Tube |
| 工厂包装数量 | 57 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 海关税号 | 85411000 | 零件状态 | :16F688 |
| 无铅定义 | RoHS-conform | ||
电气参数
| 转速 | 20 MHz | RAM 大小 | 256 byte |
| 内核大小 | 8-Bit | 核心类型 | PIC |
| 接口 | USART | 时钟速率 | 20 MHz |
| EEPROM容量 | 256Byte | 存储器容量 | 7KByte |
| 存储器类型 | FLASH | 显示类型 | no |
| I/O 数量 | 12 | 位数 | :8 |
| 时钟频率 | :20MHz | 数据转换器 | A/D 8x10b |
| 最大频率 | 20MHz | DAC数量 | 0 |
| 振荡器类型 | Internal | 供电电压 | 2.5|3.3|5 V |
| 数字I/O线数 | 12pins | 分辨率（位） | 10Bit |
| 通道数量 | 0 | 程序存储器大小 | 7 KB |
| 程序存储器类型 | Flash | ADC/DAC 数量 | 8channels |
| 最大功耗 | 800 mW | 每元件位数 | 10 bit |
| 供电电压 (Vcc/Vdd) | 2 V ~ 5.5 V | ||
机械参数
| 重量 | 0.0001 | 包装方式 | TUBE |
| 端接方式 | :SMD | 安装样式 | SMD/SMT |
| 引脚数 | :14 | 封装形式 | 14SOIC N |
| 材料表面处理 | :MSL 1 - Unlimited | 位数 | :16F688 |
| 供应商器件封装 | 14-SOIC | 核心数/总线宽度 | 8 Bit |
产品信息
| USB | No | 系列 | PIC16 |
| 匹配码 | PIC16F688-E/SL | CAN编号 | 0 |
| 闪存大小 | :7KB | SPI编号 | 0 |
| 片内RAM（通道数×位宽） | 8-chx10-bit | 外设 | Brown-out Detect/Reset, POR, WDT |
| 连接性 | UART/USART | 核心处理器 | PIC |
| 定时器数量 | 2 | 控制器系列 | :PIC16F6xx |
| 标准交期 | 14 weeks | 射频系列/标准 | PIC16 |
| 使用的IC/零件 | :PIC16F688-E/SL | A/D转换器数量 | :8 |
环境参数
| 温度范围 | :Extended | 测试温度 | -40°C |
| 工作温度 | -40 to 125 °C | ||
