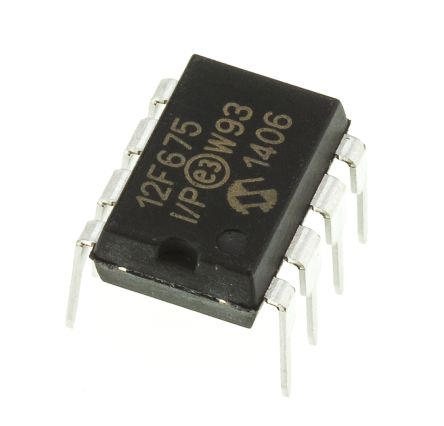

点击放大查看
PIC12F675-I/P
| 制造商 | Microchip Technology Inc. |
| 描述 | MCU 8-bit PIC12 PIC RISC 1.75KB Flash 2.5V/3.3V/5V 8-Pin PDIP Tube 8 bit MCU PDIP8 IC MCU 8BIT 1.75KB FLASH 8DIP PIC12F675-I/P, 8 bit Microcontroller PIC 20MHz 1024 Flash, 64B RAM, 8-Pin PDIP MCU 8-Bit PIC12 PIC RISC 1.75KB Flash 2.5V/3.3V/5V 8-Pin PDIP Tube IC, 8BIT FLASH MCU, 12F675, DIP8 MCU;Flash,1.75KB;Ram,64B;I/O,6;Package,DIP-8 PIC microcontroller; EEPROM:128B; SRAM:64B; 20MHz; DIP8; 2÷5.5V Microcontroller 8 Bit DIL-8, PIC12F675-I/P, Microchip Microchip PIC12F 系列 8 bit PIC MCU, 20MHz, 1024 x 14 字，128 B ROM 闪存, 64 B RAM, 8针 PDIP封装 8-bit Microcontrollers - MCU 1.75KB 64 RAM 6 I/O Ind Temp PDIP8 PIC12F 1,75K PDIP8 85°C |
| 分类 |
商业参数
| 最小起订量 | 1 | 单位包装 | 60 |
| 其他名称 | PIC12F675IP | 标准包装数量 | Rail / Tube |
| 标准封装名称 | PDIP | ||
合规参数
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 欧盟RoHS | Compliant | 海关税号 | 85423190 |
| 抗辐射加固 | No | 无铅定义 | RoHS-conform |
| 认证机构 | No | ||
电气参数
| 输入端 | 5 | 转速 | 20 MHz |
| 定时器 | 1 x 16 bit, 1 x 8 bit | 存储器 | 1.75KBytes |
| RAM 大小 | 64 byte | 内核大小 | 8-Bit |
| 核心类型 | PIC | 频率 | 20 MHz |
| 接口 | RS-232/USB | 时钟速率 | 20 |
| 比较器数量 | 1 | EEPROM容量 | 128Byte |
| 存储器容量 | 1.7KByte | 存储器类型 | FLASH |
| I/O 数量 | 6 | 电压范围 | 2-5.5V |
| 位数 | 10 | 额定电压 | 2 → 5.5 V |
| 看门狗定时器 | 1 | 时钟频率 | :20MHz |
| 数据转换器 | A/D 4x10b | 最大频率 | 20MHz |
| 振荡器类型 | Internal | 供电电压 | 2.5|3.3|5 V |
| 数字I/O线数 | 6pins | 分辨率（位） | 10Bit |
| 通道数量 | 0 | 模拟输入/输出 | 4-Channel,10-Bit |
| 非易失性存储器 | 128Bytes | 程序存储器大小 | 1.75 KB |
| 程序存储器类型 | Flash | ADC/DAC 数量 | 4 |
| 8位定时器数量 | 1 | 最小供电电压 | 2 V |
| 频率（中心/带宽） | 16 bit, 8 bit | 最大功耗 | 800 mW |
| 每元件位数 | :10 | 供电电压 (Vcc/Vdd) | 2 V ~ 5.5 V |
机械参数
| 宽度 | 0.28in | 高度 | 0.195in |
| 长度 | 0.4in | 重量 | 0.000001 |
| 包装方式 | Tube | 引脚样式 | Through Hole |
| 安装类型 | Through Hole | 引脚数 | :8 |
| 封装形式 | 8PDIP | 冷却的封装 | PDIP |
| 材料表面处理 | :- | 总长度 | 9.27 |
| 包装数量 | PDIP | 尺寸/外形 | 0.4 x 0.28 x 0.195in |
| 位数 | 8 | 外壳尺寸-插件 | 3.3 |
| 供应商器件封装 | 18-PDIP | 核心数/总线宽度 | 8 Bit |
产品信息
| SPG | 660 | USB | 0 |
| 类型 | PIC microcontroller | 匹配码 | PIC12F675-I/P |
| 片内RAM（通道数×位宽） | 4-chx10-bit | 外设 | POR, WDT |
| 架构 | RISC | 可编程性 | Yes |
| 核心处理器 | PIC | 内置振荡器 | 4MHz |
| 单元数量 | 1 | 定时器数量 | 2 |
| 控制器系列 | :PIC12 | 标准交期 | 14 weeks |
| 射频系列/标准 | PIC12 | DigiKey可编程 | Yes |
| 印刷电路板数量 | 8 | ||
环境参数
| 测试温度 | -40°C | 工作温度 | -40 to 85 °C |
| 结工作温度 | 85C | ||
