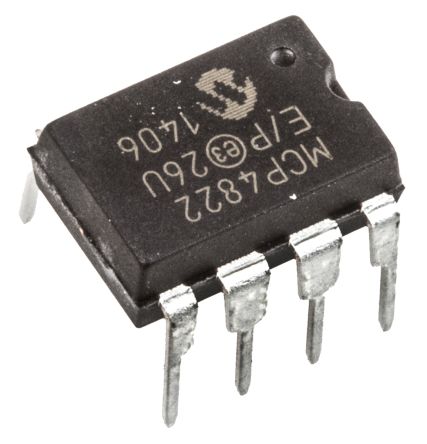

MCP4822-E/P
| 制造商 | Microchip Technology Inc. |
| 描述 | DAC 2-CH Resistor-String 12-bit 8-Pin PDIP Tube Digital to Analog Converters - DAC Dual 12-bit DAC Dual 12-bit DAC with SPI interace an IC DAC 12BIT DUAL W/SPI 8DIP MCP4822-E/P, 12-Bit 12 Bit DAC Dual, SPI, Microwire, 8-Pin PDIP 12BIT DAC, SPI, VREF, DUAL, PDIP8 DUAL12-BITDACWITHSPIINTERACEANDINTERNALVREF,PDIP-8 D/A converter IC 12 Bit DIL-8, MCP4822-E/P, Microchip Microchip 双 12 位 DAC, 串行（SPI/Microwire）接口, 8针 PDIP封装 |
| 分类 |
商业参数
| 最小起订量 | 200 | 单位包装 | 60 |
| 其他名称 | MCP4822EP | 产品类别 | Digital to Analog Converters - DAC |
| 标准包装数量 | Rail / Tube | 工厂包装数量 | 60 |
| 标准封装名称 | PDIP | ||
合规参数
| RoHS | RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 欧盟RoHS | Compliant | 海关税号 | 85423190 |
| 抗辐射加固 | No | ||
电气参数
| 接口 | Serial (3-Wire, SPI, Microwire) | 线性度 | :3LSB |
| 满量程 | ±2 %FSR | 输入类型 | :Serial |
| 分辨率 | 12 Bit | 输出类型 | Voltage |
| INL/DNL（LSB） | ±12 LSB | 输入功率 | Single |
| 建立时间 | 4.5(Typ) us | 转换器类型 | General Purpose |
| 数据接口 | Serial, SPI™ | 位数 | 12 |
| DAC数量 | 2 | 输出电流 | :415µA |
| 供电电压 | 5.5 V | 失真额定值（如THD） | +/- 12 LSB |
| 输出数量 | 2 | 供电类型 | Single |
| 分辨率（位） | :12bit | 电压基准 | Internal |
| 通道数量 | 2 | 供电电源 | Single Supply |
| 上升/下降时间（典型） | :4.5µs | 输出数量与类型 | 2 Voltage, Unipolar; 2 Voltage, Bipolar |
| 采样率（每秒） | * | 电源电压范围（典型） | Not Required V |
| 共模瞬态抗扰度（最小） | Extended | ||
机械参数
| 宽度 | 6.35 | 重量 | 0.000833 |
| 包装方式 | Tube | 引脚样式 | Through Hole |
| 端接方式 | :Through Hole | 安装类型 | Through Hole |
| 安装样式 | Through Hole | 引脚数 | :8 |
| 封装形式 | 8PDIP | 冷却的封装 | PDIP |
| 材料表面处理 | :- | 总长度 | 9.4 |
| 包装数量 | PDIP | 位数 | 8 |
| 外壳尺寸-插件 | 3.3 | 供应商器件封装 | 8-PDIP |
产品信息
| 基本单元 | :4822 | 架构 | Resistor-String |
| 印刷电路板数量 | 8 | A/D转换器数量 | 2 |
环境参数
| 工作温度 | -40 to 125 °C | 结工作温度 | 125C |
文档与媒体
