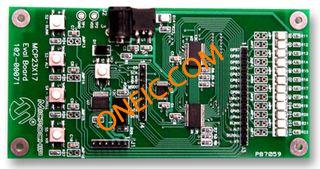

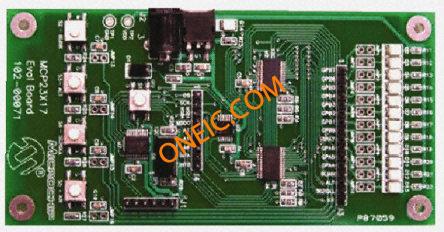

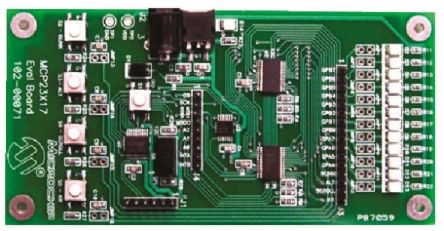

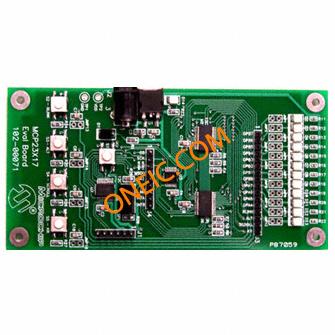

MCP23X17EV
| 制造商 | Microchip Technology Inc. |
| 描述 | MCP23X17 16Bit Gpio EXpander Evaluation Board Other Development Tools MCP23X17 EVAL BRD MCP23X17 EVALUATION BOARD BOARD EVAL FOR MCP23X17 MCP23X17EV, Development Kit, 16 bit, GPIO, PIC Interface Development Tools MCP23X17 EVAL BRD MCP23017, GPIO EXPANDER, EVAL BOARD Microchip 16位、GPIO MCU 处理器和微控制器开发套件 |
| 分类 |
商业参数
| 最小起订量 | 4 | 产品 | Evaluation Boards |
| 单位包装 | 1 | 产品类别 | Other Development Tools |
| 标准包装数量 | Boxed | 工厂包装数量 | 1 |
合规参数
| RoHS | RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 海关税号 | 85423190 | ||
电气参数
| 核心类型 | PIC | 接口 | SPI |
| 供电电压 | 3 V to 5.5 V | 元件数量 | :MCP23017, MCP23S17 |
机械参数
| 重量 | 0.45 | ||
产品信息
| 类型 | Development Kit | 内容 | 2 Boards, CD |
| 嵌入式 | Yes, MCU, 8-Bit | 产品特性 | :ICSP Header, Powered from 3.0V to 5V DC Power Source |
| 功能 | 16-bit GPIO Expander Evaluation Board demonstrates simple input/output functionality | 套件类型 | :Interface |
| 基本单元 | :23 | 技术 | 16 bit, GPIO |
| 套件内容 | 16-Bit GPIO Expander Evaluation Board for the MCP23017 and MCP23S17 Devices | 主要用途 | Interface, GPIO Expander |
| 卡标准 | Development Kit | 工具类型/特性 | MCP23017, MCP23S17 |
| 主要特性 | (2) 16-Bit GPIO Expanders, I2C and SPI | 使用的IC/零件 | MCP23017, MCP23S17 |
| 芯片组制造商 | :Microchip | 次要特性 | 4 Momentary Switches, 12 LEDs |
| 应用细节 | :GPIO Expander | 支持MCU系列 | :MCP23X17 |
| 适用产品/相关产品 | :MCP23017, MCP23S17 | ||
