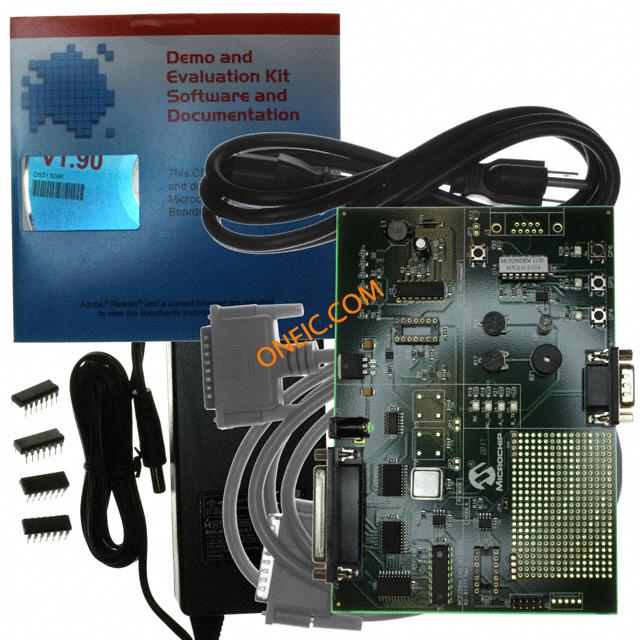

点击放大查看
DV250501
| 制造商 | Microchip Technology Inc. |
| 描述 | Developer Kit For MCP250XX Can I/O Expanders Networking Development Tools MCP250XX CAN MCP250XX CAN Developer's Kit KIT DEV CAN MCP250XX DV250501, Development Kit, CAN MCP250XX, CAN I/O EXPANDERS, DEV KIT MCP250XXCANDEVELOPERSKIT Development kit: CAN I/O Expanders 14pin; MCP25020,MCP25050 Microchip I/O Expander MCP250xx CAN 总线接口 开发套件 |
| 分类 |
商业参数
| 最小起订量 | 1 | 单位包装 | 1 |
| 其他名称 | Q1221418 | 产品类别 | Networking Development Tools |
| 标准包装数量 | Boxed | 工厂包装数量 | 1 |
合规参数
| RoHS | RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 海关税号 | 85423190 | ||
电气参数
| 核心类型 | :Interface | 数据速率 | 1 Mbps |
| 接口 | CAN | 供电电流 | 20 mA |
| 供电电压 | 2.7 V to 5.5 V | 元件数量 | :(Not Applicable) |
机械参数
| 重量 | 0.18 | ||
产品信息
| 类型 | Development Kit | 内容 | Board, Cable, Power Supply, Samples, Software |
| 嵌入式 | Yes, MCU, 8-Bit | 产品特性 | :Bus Rates up to 1Mbps |
| 功能 | Development Kit | 套件类型 | :Interface |
| 基本单元 | :250501 | 技术 | CAN |
| 套件内容 | CD with Software, Parallel Port Cable, Power Supply Adapter, User Manual | 主要用途 | Interface, CAN I/O Expander |
| 卡标准 | Development Kit | 通信接口 | LPT |
| 单元数量 | 1 | 工具类型/特性 | MCP25050, MCP2520 |
| 主要特性 | V2.0B up to 1Mb/s Data Rate | 使用的IC/零件 | MCP25020, MCP25050 |
| 芯片组制造商 | :Microchip | 应用细节 | :CAN IO Expanders |
| 可编程特性 | possibility to program by means of ICSP | 支持MCU系列 | :MCP250xx |
| 适用产品/相关产品 | :MCP25020, MCP25025, MCP25050 and more | ||
环境参数
| 工作温度 | + 85 C | ||
